Attach the power box and touchscreen
To attach the power box and touchscreen:
1 Align and bend the wires carefully to fit them inside the wall
box.
2 Align slide the power box into the wall box, then secure the
power box to the wall box using the two screws provided.

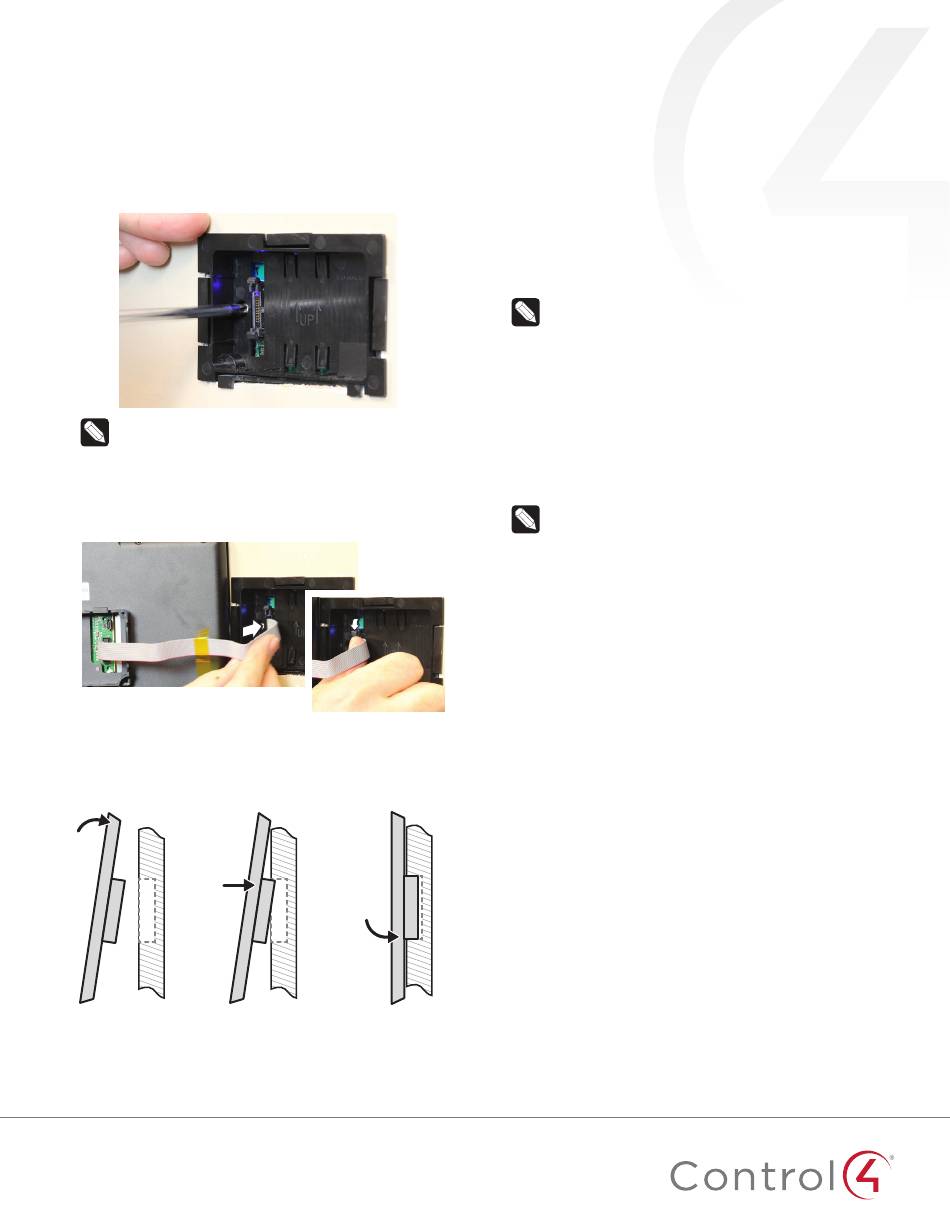

Figure 11: Secure power box to wall box
Note: Overtightening the power box screws can warp
the box and make it difficult to attach the touchscreen.
3 Straighten out the ribbon cable taped to the back of the
touchscreen, then plug it into the ribbon cable port in the
power box. To make sure it's securely connected, press it into
the port until the two locking tabs close onto the connector.
Figure 12: Attach ribbon cable to the power box
4 For easiest installation, angle the top of the touchscreen
toward the wall, insert the top tabs of the mounting ring into
the power box, then press the bottom of the touchscreen
into place.
Figure 13: Attach the touchscreen top first
6
Configuration
Configure the touchscreen for wireless (optional)
To configure the touchscreen for wireless:
1 After initialization, tap Network. The network configuration
page opens.
2 Under Wi-Fi, tap or slide OFF/ON to enable WiFi, then tap
the Wi-Fi field to open a list of available networks.
3 Tap the network name you want to connect to.
4 Tap the Password field, then use the on-screen keyboard to
type the password (if required).
Note: If you need to enter a static IP address, follow the
instructions under "To set a wireless static IP address"
below before proceeding.
5 Tap Connect.
If you don't see the network you want:
1 Tap +, then tap the Network SSID field and type the SSID
(name) of the network by using the on-screen keyboard.
2 Tap the Security field, then select the type of security to use.
3 Tap the Password field, then use the on-screen keyboard to
type the password (if required).
Note: If you need to enter a static IP address, follow the
instructions under "To set a wireless static IP address"
below before proceeding.
4 Tap Save. The new network is added to the bottom of the
network list.
To set a wireless static IP address:
1 Scroll down and tap Show advanced options.
2 Tap IP settings, then tap Static.
3 Select each box one at a time and use the on-screen
keyboard to type the:
• IP address
• Gateway
• Network prefix length
• DNS 1 (preferred)
• DNS 2 (alternate)
Configure the touchscreen for Ethernet
If you want to use DHCP (default) for your Ethernet connection,
no further setup is required.
To configure a static IP address for Ethernet:
1 After initialization, tap Network. The network configuration
page opens.
2 Tap Ethernet. The Ethernet settings screen opens.
3 Tap Static IP Settings, then tap Use static IP.
4 Select each box one at a time and use the on-screen
keyboard to type the IP Address, Gateway, Netmask, DNS 1
(preferred), and DNS 2 (alternate).
5 Tap SAVE when finished.
