Amino Maxi Linux User Manual

Maxi Linux Remote Control User Guide
1. Inserting batteries
1. Slide the battery housing cover downwards to remove it.
2. Insert two AAA batteries with the + and - ends
positioned as shown.
3. Refit the battery housing cover.
+ –
–
+

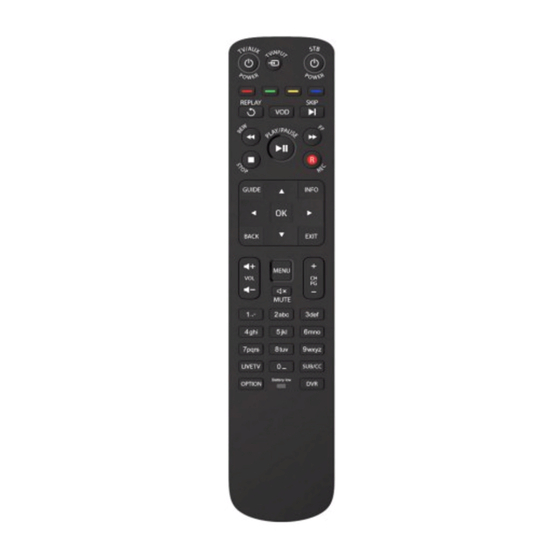

Remote control layout
1 TV input source select
2 TV/AUX power/standby
3 Colour navigation
4 Replay VOD or recorded video
5 Set-top box (STB) PVR* controls
6 Electronic Program Guide
7 Navigation and OK
8 Back
9 Volume up and down
10 Channel select and text entry
11 Go to Live TV
Option (function is determined
12
by your service provider)
13 Infra-red (IR) window
14 STB power/standby
15 VOD menu
16 Forward VOD or recorded video
17 Information
18 Exit
19 Menu (for STB)
20 Channel/Page up and down
21 Mute
22 Subtitles/Closed captions
23 PVR/recordings menu
24 Low battery warning LED
Note: Some functionality may not be available on specific models
of STB. Functionality may also vary depending on the TV service
delivered by your service provider.
Battery information
Do not mix different types of battery or old and new
batteries.
Do not use rechargeable batteries.
Remove the batteries from the remote control if you
are not going to use it for several weeks, to avoid the
risk of leakage.
Please respect the environment and any local
regulations and dispose of old batteries in a
responsible manner.
Do not attempt to recharge the batteries supplied with
your remote control.
Immediately remove any leaking batteries.
Take care when handling leaking batteries as they
may cause burns to the skin or eyes, or other physical
injuries.
2. Operation
When you use the remote control, point it towards
the front of the set-top box (STB). Do not cover the
infrared (IR) window at the front of the remote control
or at the front of the STB. If you press and hold any key
for more than 30 seconds, the remote control will stop
transmitting commands to preserve battery life.
*Personal video recorder
– only available on certain
models of STB
