Amino Maxi ATV User Manual

Maxi ATV Remote Control User Guide
1. Activate batteries
To activate the batteries before first use of
the remote control, pull out the plastic tab.
2. Controlling the STB
(pairing the remote control)
The Maxi remote control is designed to control your STB
and (optionally) your TV or auxiliary device (alternative video
source). Ensure the STB is powered on, connected to a TV,
and has finished its start-up procedure. Ensure your TV input
source is set to display the output from the STB.
During the initial setup of the STB, you will be guided through the
process of pairing the remote control with the STB. The image below
shows what you can expect to see on your TV screen.
1. Point the remote control at the STB. Do not cover the infrared (IR)
window on the front of the remote control or at the front of the STB.
2. Press and hold the OK key (7) and APPS key (6) simultaneously for
5 seconds or until the STB power key (15) flashes twice to indicate
successful pairing.
3. Release both keys.
4. The STB power light should be illuminated Blue.
Once the pairing is successful, the pairing screen will disappear
from your screen.
Note: The remote is in "pairing mode" when the STB key (15) is
illuminated blue. When in pairing mode, only the BACK key (8) on
the remote control will work. You must press the BACK key to exit
pairing mode if you wish to use any other function.

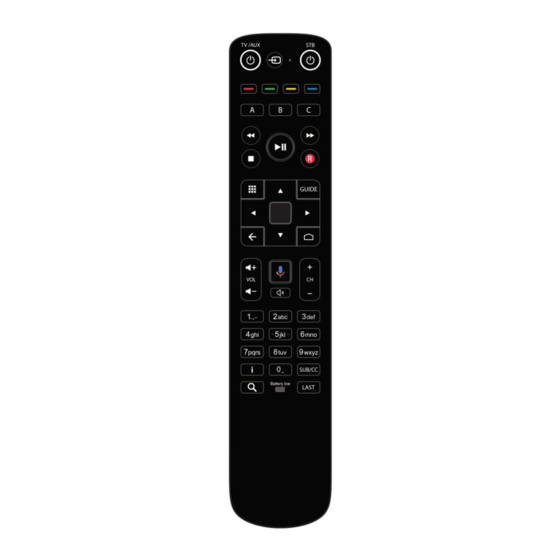

Remote control layout
1 TV input source select
2 TV/AUX power/standby
3 Color navigation
4 'A' button
5 Set-top box (STB) PVR* controls
6 Apps
7 Navigation and OK
8 Back
9 Volume up and down
10 Channel select and text entry
11 Information
12 Search
13 Infra-red (IR) window
14 Microphone
15 STB power/standby
16 'B' button
17 'C' button
18 Electronic Program Guide
19 Home
Voice control
20
This button may have or icon
21 Channel/Page up and down
22 Mute
23 Subtitles/closed captions
24 Last channel recall
25 Low battery warning LED
*Personal video recorder – only available on certain models of STB
Note: Some functionality may not be available on specific models
of STB. Functionality may also vary depending on the TV service
delivered by your service provider.
3. Controlling the TV with your Maxi remote
The Maxi remote control for Android TV supports a
"Simple Remote Setup". This will automatically detect
the brand of TV connected to your STB via HDMI.
The setup wizard will guide you through the steps
to confirm that the remote control is able to control
certain functions on your TV (volume, mute etc.) as well
as controlling your STB. The image below shows the
first screen of the Simple Remote Setup wizard.
If you a receive a new remote control, you can trigger
the Simple Remote Setup by going to: Settings >
Device Preferences > Remotes and Accessories.
Select your remote control from the list on screen and
choose "Simple Setup".
If the Simple Remote Wizard is not displayed or is
unsuccessful, please see section 4 of this guide.
