Amino Maxi ATV User Manual

Maxi ATV Remote Control User Guide
1. Activate batteries
To activate batteries, pull out the plastic tab
2. Controlling the STB
(pairing the remote control)
The Maxi remote control is designed to control your
STB and (optionally) your TV or auxiliary device.
During the initial setup of the STB, you will be guided
through the process of pairing the remote control with
the STB. The figure below is what you can expect to
see on your TV screen.
5S
1) Point the remote control at the STB. Do not cover the infrared (IR) window on
the front of the remote control and at the front of the STB.
2) Press and hold the OK and PPS buttons simultaneously for 5 seconds or until
the STB button blinks twice.
3) Release the buttons.
4) The STB button should be illuminated blue.
Once the pairing is successful, you will see a short blink and pairing screen will
disappear.
Note: The remote is in "pairing mode" when the STB button is illuminated blue.
During pairing mode, no remote control keys will work except the BACK key. You
mut press BACK to stop pairing or to use another function.
3

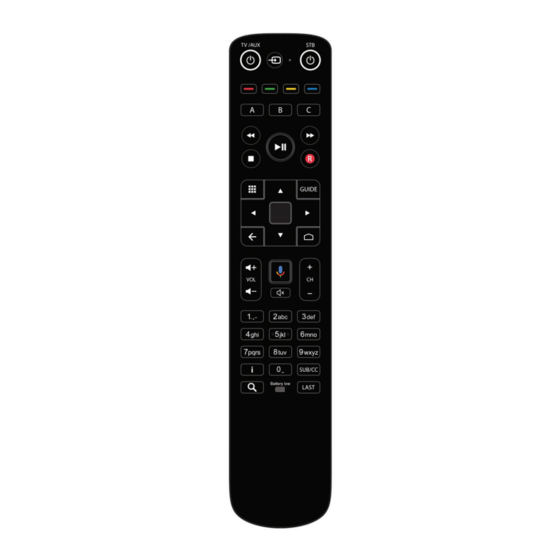

Remote control layout
1 TV input source select
2 TV/AUX power/standby
3 Color navigation
4 'A' button
5 Set-top box (STB) PVR transport
6 Apps
7 Navigation and OK
8 Back
9 Volume up and down
10 Channel select and text entry
11 Information
12 Search
13 Infra-red (IR) window
14 Microphone
15 STB power/standby
16 'B' button
17 'C' button
18 Electronic Program Guide
19 Home
20 Voice control
This button may have or icon
21 Channel/Page up and down
22 Mute
23 Subtitles/closed captions
24 Last channel recall
25 Low battery warning LED
Note: Some functionality (e.g. PVR) may not be available on specific models of set-top box
(STB), also functionality may vary with the TV service delivered by your service provider.
3. Controlling the TV
The Maxi remote control for Android TV supports a "Simple Remote Wizard" to
automatically detect the TV brand connected to your STB via HDMI. The Wizard will
guide you through the steps to confirm that the remote control is able to control
your TV. The image below is the first screen of the Simple Remote Wizard.
If you a receive a new remote control, you can trigger the Simple Remote Wizard
by going to : Settings>Device Preferences >Remotes and Accessories. Select your
remote control from the lit and choose "Simple Setup".
