- Page 1 Amino Communications Ltd. Maxi LNX Remote Pairing Guide Technical Information AM-011315-TN Issue 1 29 June 2018...
-
Page 2: Revision History
C Delf First issue Disclaimer This document contains information on a product under development. Amino Communications Ltd reserves the right to change or discontinue this product without notice. Trademarks and copyright Amino Communications and the Amino logo are trademarks of Amino Communications Limited. - Page 3 Amino Communications Ltd Technical Information Contents AM-011315-TN Page 3 of 19 © Amino Communications Ltd, 2018...
- Page 4 Maxi LNX Remote Pairing Guide Introduction This document gives detailed information about the features of the Amino Maxi LNX remote control. The remote control has two modes of operation, a Bluetooth Low Energy (BLE) radio-frequency (RF) mode, or an infra-red (IR) mode. Features include auto and manual pairing with a set-top box (STB), auto and manual searching for TV brand and a learning function to learn a key operation from another remote control.

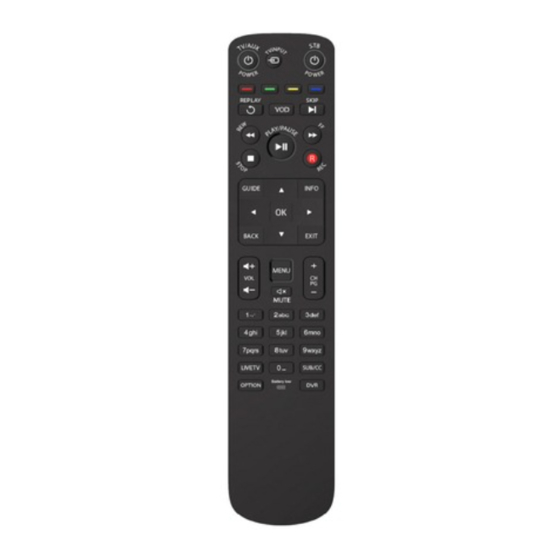

- Page 5 Amino Communications Ltd Technical Information Maxi LNX remote control layout TV input source select TV/AUX power/standby Colour navigation Replay VOD or recorded video STB PVR transport keys Electronic Program Guide Navigation and OK Back Volume up and down Channel select and text entry...
-
Page 6: Stb Control
Technical Information Amino Communications Ltd. Maxi LNX general description The remote control can transmit RF and IR. It can be set up to control an RF or an IR STB (mutually exclusive). There is an embedded TV IR database and an IR learning feature for a TV or Home Theatre device. -
Page 7: Data Retention
Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Byte 0 0x03 (Report ID) Byte 1 Consumer Control Code (LSB) Byte 2 Consumer Control Code (MSB) AM-011315-TN Page 7 of 19 © Amino Communications Ltd, 2018... - Page 8 0x07/0x1F 0x07/0x20 Digit 4 Digit 5 Digit 6 0x07/0x21 0x07/0x22 0x07/0x23 Digit 7 Digit 8 Digit 9 0x07/0x24 0x07/0x25 0x07/0x26 LIVE Digit 0 SUB/CC 0x0C/0x89 0x07/0x27 0x0C/0x61 OPTION 0x0C/0x19F 0x0C/0x92 Page 8 of 19 AM-011315-TN © Amino Communications Ltd, 2018...
- Page 9 BACK DOWN EXIT VOL+ MENU VOL- MUTE Digit 1 Digit 2 Digit 3 Digit 4 Digit 5 Digit 6 Digit 7 Digit 8 Digit 9 LIVE Digit 0 SUB/CC OPTION AM-011315-TN Page 9 of 19 © Amino Communications Ltd, 2018...
-
Page 10: Manual Pairing
(Pairing is not lost when the batteries are replaced, the pairing remains for at least 1 hour.) • after any key is pressed, and the STB-POWER-LED flashes to confirm the key press. Page 10 of 19 AM-011315-TN © Amino Communications Ltd, 2018... - Page 11 The remote control enters sleep mode 30 seconds after the last RF transmission. Device name: “RC5344407” Manufacturer name: “OMNI REMOTES” Vendor ID: 0x057A (Omni Remotes) Product ID: 0x0003 AM-011315-TN Page 11 of 19 © Amino Communications Ltd, 2018...
-
Page 12: Led Operation
Code-set ID flash out <<1 + 6>>, <VOL->, <1> […flash…], <2> […flash…], <3> […flash…], <4> […flash…] Brand ID flash out <<1 + 6>>, <VOL+>, <1> […flash…], <2> […flash…], <3> […flash…], <4> […flash…] Page 12 of 19 AM-011315-TN © Amino Communications Ltd, 2018... - Page 13 10.3 Brand search/auto search The brand search/auto search feature consists of two functions: • search through the TV code-sets under a certain brand (brand-search). • search through all TV code-sets (auto-search). AM-011315-TN Page 13 of 19 © Amino Communications Ltd, 2018...
- Page 14 30 seconds, the remote control flashes the TV-LED and returns to user mode. If this 30-second timeout elapses while in step 6 or 7, then the new universal code set has already been programmed into non-volatile memory. Page 14 of 19 AM-011315-TN © Amino Communications Ltd, 2018...
- Page 15 If the IR signal is received correctly, the remote stores the learned code in non-volatile memory. (This can overwrite a previously-learned code.) The TV-LED gives a confirmation flash and the remote control returns to user mode. AM-011315-TN Page 15 of 19 © Amino Communications Ltd, 2018...
- Page 16 • If the key sequence is invalid, or not received within 30 seconds timeout, the TV-LED gives an error flash and the remote control returns to user mode. Page 16 of 19 AM-011315-TN © Amino Communications Ltd, 2018...
-
Page 17: Factory Reset
No flashes after a key is pressed indicates a digit value of zero. You must press the keys in the order 1,2,3,4 otherwise the sequence is considered invalid. AM-011315-TN Page 17 of 19 © Amino Communications Ltd, 2018... -
Page 18: Other Information
11.2 Multiple key press Key code transmission will be stopped if more than one key is pressed simultaneously, except when using the setup key combinations. Page 18 of 19 AM-011315-TN © Amino Communications Ltd, 2018... -
Page 19: Sleep Mode
The remote control supports OTA upgrading for the Bluetooth firmware. Note that key scan / LED / IR database / IR learn are not available to upgrade due to the dual-MCU design of the remote control, and only Bluetooth firmware can be runtime-upgraded via OTA. AM-011315-TN Page 19 of 19 © Amino Communications Ltd, 2018...
