Amino Maxi ATV User Manual

Maxi ATV Remote Control User Guide
1. Inserting batteries
1. Slide the battery housing cover downwards to remove it.
2. Insert two AAA batteries with the + and - ends
positioned as shown.
3. Refit the battery housing cover.
+ –
–
+

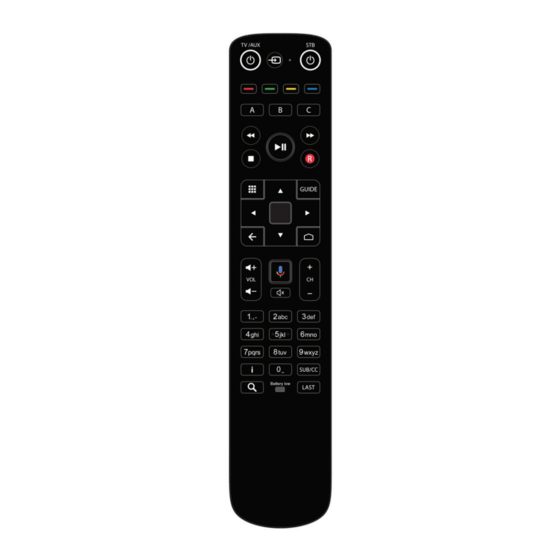

Remote control layout
1 TV input source select
2 TV/AUX power/standby
3 Color navigation
4 Skip Reverse
5 Set-top box (STB) PVR transport
6 Home
7 Navigation and OK
8 Back
9 Volume up and down
10 Channel select and text entry
11 Teletext
12 Option
13 Infra-red (IR) window
14 Microphone
15 STB power/standby
16 Replay
17 Skip Forward
18 Electronic Program Guide
19 Info
Voice control
20
This button may have or
21 Channel/Page up and down
22 Mute
23 Subtitles/closed captions
24 Radio
25 Low battery warning LED
Note: Some functionality (e.g. PVR) may not be available on specific
models of set-top box (STB), also functionality may vary with the TV
service delivered by your service provider.
Battery information
Do not mix different types of battery or old and new
batteries.
Do not use rechargeable batteries.
Remove the batteries from the remote control if you
are not going to use it for several weeks, to avoid the
risk of leakage.
Please respect your environment and any local
regulations and dispose of old batteries in a
responsible manner.
Do not attempt to recharge the batteries.
Immediately remove any leaking batteries.
Take care when handling leaking batteries as they
may cause burns to the skin or eyes, or other physical
injuries.
Operation
When you press a key, point the remote control towards
the front of the STB to ensure correct operation.
Do not cover the infra-red (IR) window at the front of
the remote control and at the front of the STB.
When a key is pressed, either the STB key will flash or,
if a TV brand has been entered, the TV/AUX POWER
key will flash, depending on which product is being
controlled by the remote control.
If you press a key for more than 30 seconds the remote
control will stop transmitting commands to preserve
battery life.
