Summary of Contents for Dunelm Winslow

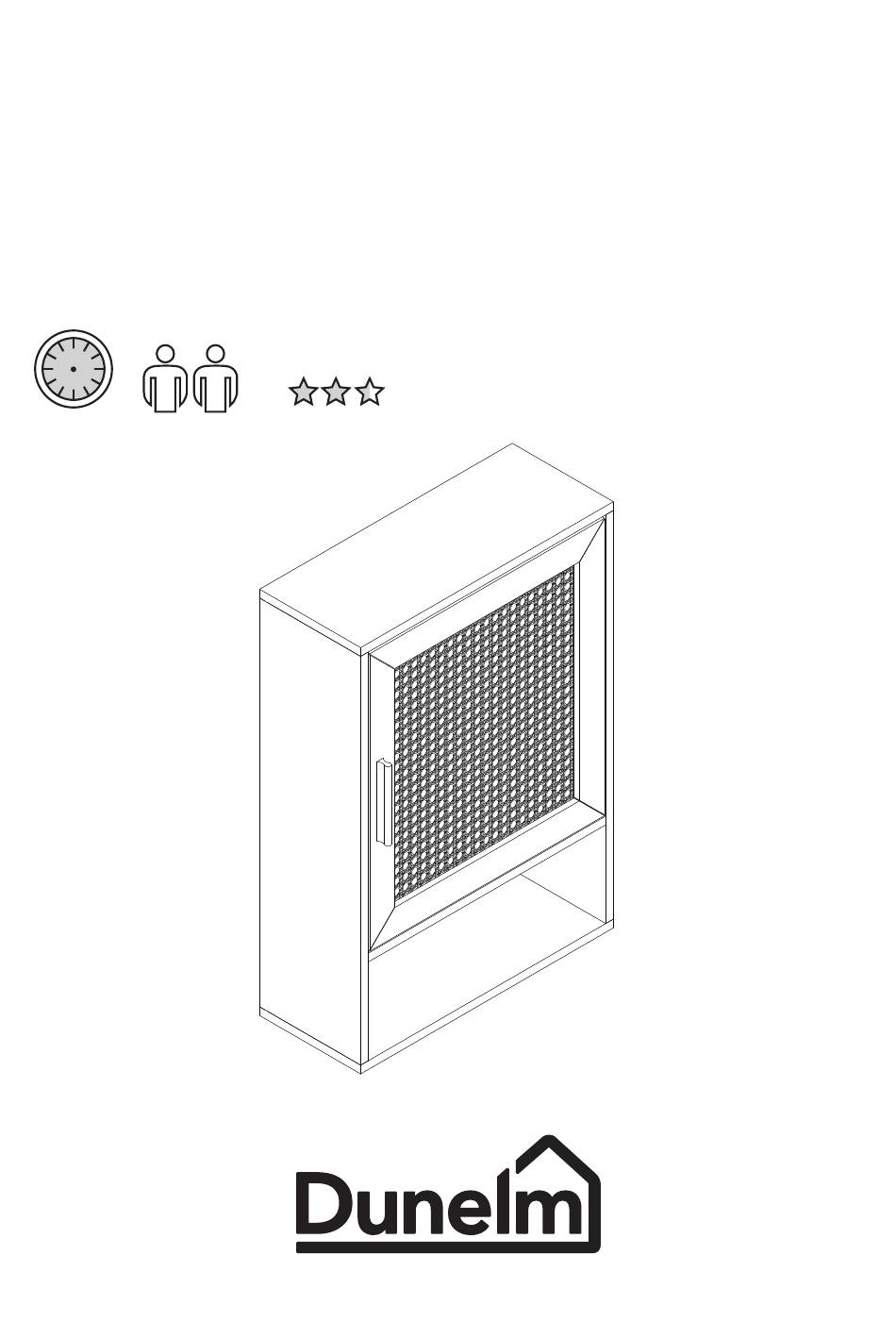

- Page 1 Winslow Wall Cabinet I N S TRU C TIO NS 30MINS 2 PERSON ASSEMBLY MEDIUM DIFFICULTY www.dunelm.com...
-
Page 3: Dear Customer
Thank you Dear Customer Thank you for purchasing your new piece of furniture from Dunelm. W e put a lot of effort in the design and construction of our products to ensure they set the standard for quality, durability and ease of assembly. - Page 4 Component parts supplied Ref Dimensions Visual Ref Dimensions Visual 57x18.8cm 38.4x36cm 57x18.8cm 36.6x17.3cm 57x36.6cm 40x19cm 40x19cm...
- Page 5 Parts and fittings Fixtures and fittings supplied(actual size) Dimensions 8X30mm 3.5X14mm 6X30mm 5X40mm Fixtures and fittings supplied(not to scale) Re Dimensions Re Dimensions Visual Visual www.dunelm.com...
-
Page 6: Exploded View
Exploded view www.dunelm.com... - Page 7 Tighten until shoulder is flush with panel.Do not overtighten Shoulder or undertighten(see example below) NO GAP Panel Panel A x 8 C x 8 Step 2: Edge Banding Here D x 2 C x 4 E x 8 J x 1 www.dunelm.com...
- Page 8 ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTIL SECURE CORRECT INCORRECT B x 2 Step 4: WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTIL SECURE CORRECT INCORRECT G x 2 www.dunelm.com...
- Page 9 Step 5: WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTIL SECURE CORRECT INCORRECT B x 2 G x 2 Step 6: F x 5 www.dunelm.com...
- Page 10 NO GAP Panel Panel A x 4 J x 1 D x 2 Step 8: WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTIL SECURE CORRECT INCORRECT B x 4 www.dunelm.com...
- Page 11 Step 9: D x 6 H x 2 I x 1 K x 2 Step 10: D x 4 www.dunelm.com...
- Page 12 Step 12: Use stickers (L) on all visible holes. L x 1 www.dunelm.com...
- Page 13 Step 11: www.dunelm.com...
- Page 14 Generally aerated blocks should not be used to support heavy loads, use a specialist fitting in this case. For light loads, a General For use with plaster board Purpose Plug can be used. partitions or hollow wooden doors. www.dunelm.com...
- Page 15 Assembly instructions 19cm 40cm 36.1cm 39cm 11cm 38.5cm 60cm 17.5cm 16.5cm 36.5cm www.dunelm.com...
- Page 16 Not suitable for wetrooms. Keep dry and do not allow contact with water for long periods as this will damage the surface. Manufactured in China for Dunelm (Soft Furnishings) Ltd.LE7 1AD www.dunelm.com & Dunelm (Soft Furnishings) Londonderry Ltd. BT48 8QN...
