Summary of Contents for Dunelm Willa Double Wardrobe

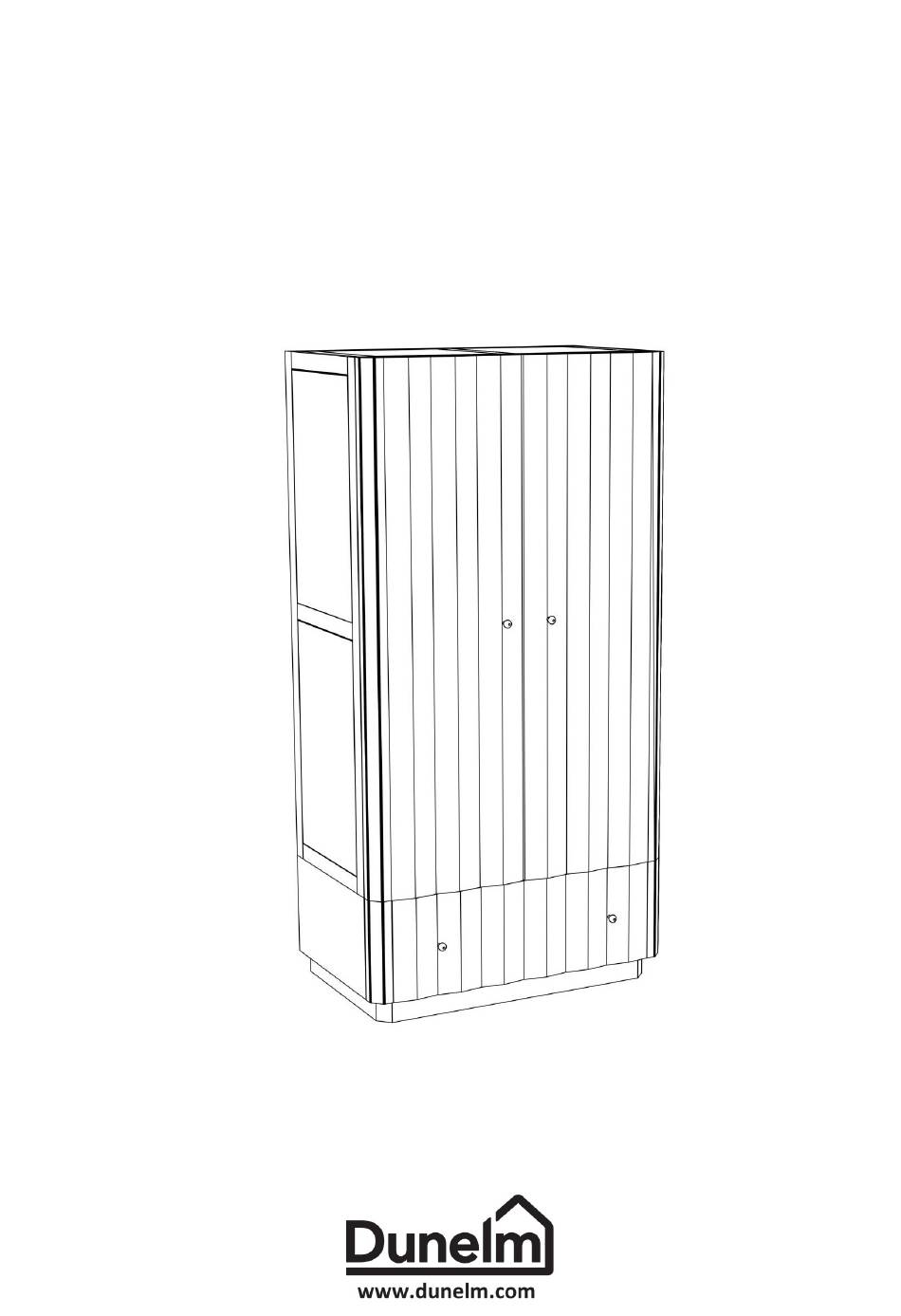

- Page 1 Willa Double Wardrobe ASSEMBLY INSTRUCTIONS...
- Page 3 1 Nos L93.8 x W53.3 x H4.2 cm 1 Nos L156.5 x W52.7 x H5.4 cm 2Nos L156.5 x W93.8 x H1.6 cm 1Nos L93.8 x W53.3 x H4.2 cm 1 Nos L156.5 x W98.9 x H9.3 cm 1 Nos www.dunelm.com...
- Page 4 6 x 40mm 18 Nos 6 x 30mm 50 Nos 6 x 16mm Fixture and fittings Supplied (not to scale) Ref. Dimension Visual Qty. 4mm Allen Key 1 Nos Wall Fitting 4 Nos Anti-tip Kit 2 Nos Knob 2 Nos www.dunelm.com...
-
Page 5: Exploded View
Exploded view www.dunelm.com... - Page 6 Step 1 :Lay the sides (3) and back frame (4) upside up and align the holes with pre installed hardware on back. Step 2 : Insert the bolt (C) with washer (D) and use the allen key (E) to tighten the bolts. www.dunelm.com...
- Page 7 Step 3 : Align the holes of door (6) with the pre installed piece (3) & (4) as shown. Step 4 : Insert the bolt (B) with washer (D) and use the allen key (E) to tighten the bolts. www.dunelm.com...
- Page 8 Step 5 : Insert top part (5) with align the holes of door (6) & sides (3) frame as shown. Step 6: Insert the bolt (B) with washer (D) and use the allen key (E) to tighten the bolts, as shown. www.dunelm.com...
- Page 9 Step 7 : Insert bottom part (2) with align the holes with Upper part as shown. Step 8 : Insert the bolt (B) with washer (D) and use the allen key (E) to tighten the bolts for top & side fixing. www.dunelm.com...
- Page 10 Base part. Step 10 : Insert the bolt (A) with washer (D) and use the allen key (E) to tighten the bolts, as shown. Now fully tighten the all bolts. KNOBS ARE IN HARDWARE PACKET www.dunelm.com...
- Page 11 When drilling the walls, always ensure there you choose the correct screw / plug type are no hidden wires or pipes. for your wall. When drilling the walls, always ensure there are no hidden wires or pipes. www.dunelm.com...
- Page 12 Generally aerated blocks should not be used to support heavy loads, use a specialist fitting in this case. For light For use with plaster board loads, a General Purpose Plug can be partitions or hollow wooden used. doors. www.dunelm.com...
- Page 13 If you are unsure, we recommend you consult a qualified Trades person. Please ensure that you use fittings that are suitable for your wall type (see previous page for a general guide). www.dunelm.com...
- Page 14 Assembly instructions 99cm 60cm 156.6cm 195.3cm 38.7cm www.dunelm.com...
