Operating instructions OTMT85
Temperature head transmitter
™
with FOUNDATION Fieldbus
- protocol
9
BA01135O/09/EN/02.12
71202058
Device software
01.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OTMT85 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser OTMT85

Summary of Contents for Endress+Hauser OTMT85

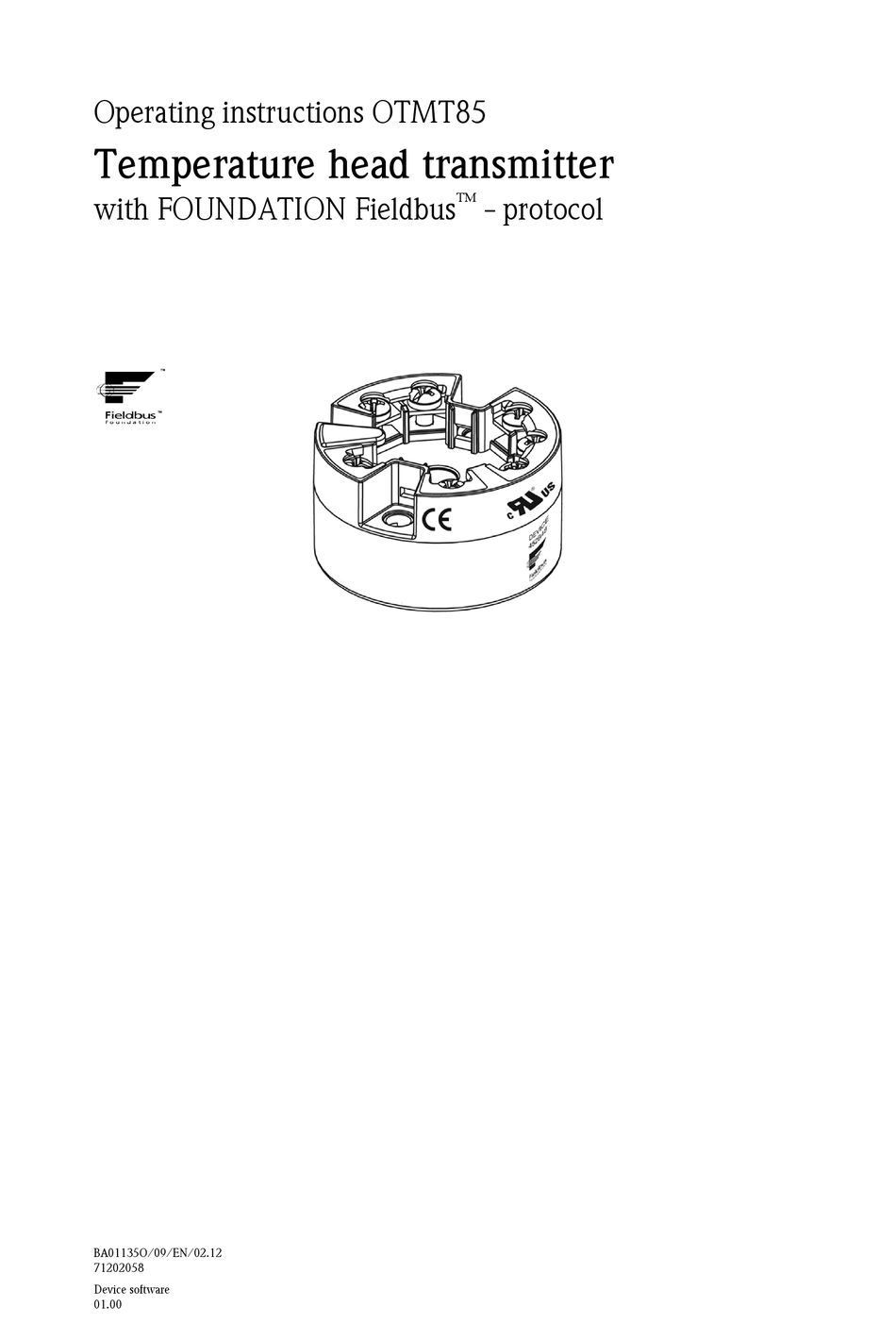

  • Page 1 Operating instructions OTMT85 Temperature head transmitter ™ with FOUNDATION Fieldbus - protocol BA01135O/09/EN/02.12 71202058 Device software 01.00...
  • Page 2 Brief overview For quick and easy commissioning: → Page 4 Safety instructions Æ → Page 8 Installation instructions Æ → Page 13 Wiring Æ → Page 22 Display and operating elements Information on configuration and operating programs from other manufacturers. Information about setting the hardware write protection, device address, etc.

  • Page 3: Table Of Contents

    Table of contents Table of contents Safety instructions ....4 Technical Data....44 Designated use .

  • Page 4: Safety Instructions

    Safety instructions Safety instructions Designated use • The device is a universal and configurable temperature head transmitter for resistance thermometers (RTD), thermocouples (TC) and resistance and voltage transmitters. The device is designed for installation in a connection head form B according to DIN 43729 or field housing. •...

  • Page 5: Notes On Safety Conventions And Icons

    Safety instructions Notes on safety conventions and icons Always refer to the safety instructions in these Operating Instructions labeled with the following symbols: Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situ- A0011190-EN ation can result in serious or fatal injury.

  • Page 6: Identification

    Identification Identification Device designation 2.1.1 Nameplate The right device? Compare the nameplate on the device with the following graphic: A0019242 Fig. 1: Nameplate of the head transmitter (example, non-Ex version) Approval information (optional) Serial number Device revision Power supply and current consumption Device identification number and communication symbol Scope of delivery The scope of delivery of the device comprises:...

  • Page 7: Registered Trademarks

    Identification 2.3.2 Certification Foundation Fieldbus™ The temperature transmitter has successfully passed all the tests and is certified and registered by the Fieldbus Foundation. The device meets all the requirements of the following specifications: • Certified in accordance with FOUNDATION Fieldbus™ specification •...

  • Page 8: Installation Instructions

    Installation instructions Installation instructions Incoming acceptance, transport, storage 3.1.1 Incoming acceptance On receipt of the goods, check the following points: • Are the contents or the packaging damaged? • Is the delivery complete and is anything missing? Check the scope of delivery against you order. 3.1.2 Transport and storage Note the following points:...
  • Page 9 Installation instructions 3.3.1 Mounting typical of Europe A0008281-EN Fig. 2: Head transmitter mounting (three versions) Item A Mounting in a terminal head (terminal head as per DIN 43729, flat face) Terminal head Circlips Insert Connection wires Head transmitter Mounting springs Mounting screws Terminal head cover Cable entry...
  • Page 10 Installation instructions Item B Mounting in a field housing Field housing cover Mounting screws with springs Head transmitter Field housing Procedure: 1. Open the cover (1) of the field housing (4). 2. Guide the mounting screws (2) through the lateral bores of the head transmitter (3). 3.
  • Page 11 Installation instructions Thermometer design with thermocouples or RTD sensors and head transmitter (→ å 3) • Fit the thermowell (item 1) on the process pipe or the container wall. Secure the thermowell according to the instructions before the process pressure is applied. •...

  • Page 12: Post-Installation Check

    Installation instructions Post-installation check After installing the device, always run the following final checks: Device condition and specifications Notes Is the device visibly damaged (visual check)? Does the device comply to the measurement point specifications, such as See chapter 10 "Technical data" ambient temperature, measurement range etc.?

  • Page 13: Wiring

    Wiring Wiring NOTICE Electronic parts may be damaged ► Switch off power supply before installing or connecting the device. Failure to observe this may result in destruction of parts of the electronics. ► When installing Ex-approved devices in a hazardous area please take special note of the instructions and connection schematics in the respective Ex documentation added to these Operating Instructions.

  • Page 14: Connecting The Sensor Cables

    Wiring Connecting the sensor cables When connecting 2 sensors ensure that there is no galvanic connection between the sen- sors (e.g. caused by sensor elements that are not isolated from the thermowell). The result- ing equalizing currents distort the measurements considerably. In this situation, the sensors have to be galvanically isolated from one another by connecting each sensor separately to a transmitter.

  • Page 15: Foundation Fieldbus™ Cable Specification

    Wiring Procedure: Item A, solid wire: 1. Strip wire end. Minimum stripping length = 10 mm (0.39 in) 2. Insert the wire end into the terminal (A). 3. Check the connection by pulling on the wire lightly. Repeat from step 1 if necessary.
  • Page 16 Wiring Type A Type B Shield coverage Max. cable length (incl. spurs >1 m) 1900 m (6233 ft) 1200 m (3937 ft) * Not specified Suitable fieldbus cables (type A) from various manufacturers for non-hazardous areas are listed below: • Siemens: 6XV1 830-5BH10 •...
  • Page 17 Wiring • Shielding at one end on the feed side Experience shows that the best results with regard to EMC are achieved in most cases in installations with one-sided shielding. Appropriate measures with regard to input wiring must be taken to allow unrestricted operation when EMC interference is present. These measures have been taken into account for this device.

  • Page 18: Connecting The Measuring Unit

    Wiring Connecting the measuring unit Devices can be connected to the FOUNDATION Fieldbus™ in two ways: • Connection via conventional cable gland → Chap. 4.4.1 • Connection via fieldbus connector (optional, can be purchased as an accessory) → Chap. 4.4.2 NOTICE Risk of damaging ►...
  • Page 19 Wiring 4.4.2 Fieldbus connector Optionally, a fieldbus connector can be screwed into the terminal head or field housing instead of a cable gland. Fieldbus connectors can be ordered as an accessory (see Section 8 'Accessories'). The connection technology of FOUNDATION Fieldbus™ allows measuring devices to be connected to the fieldbus via uniform mechanical connections such as T-boxes, junction boxes, etc.

  • Page 20: Post-Connection Check

    Wiring Post-connection check After the electrical installation of the device, always perform the following final checks: Device condition and specifications Notes Are the measuring device or the cables damaged (visual check)? Electrical connection Notes Does the supply voltage match the specifications on the nameplate? 9 to 32 V DC Fieldbus cable, →...

  • Page 21: Operation

    Operation Operation Quick operation guide Display and operating elements are only available locally if the head transmitter was ordered with a display unit! You have a number of options for configuring and commissioning the device: 1. Configuration programs The configuration of FF functions and device-specific parameters is done via the fieldbus interface. You can obtain special configuration and operating programs from various manufacturers for these purposes.→...

  • Page 22: Display And Operating Elements

    Operation Display and operating elements 5.2.1 Display A0008549 Fig. 11: Optional LC display of the head transmitter 5.2.2 Display symbols Item Function Description Displays the TAG TAG, 32 characters long. 'Communication' symbol The communication symbol appears when read and write- accessing via the FOUNDATION Fieldbus™...
  • Page 23 Operation 5.3.1 System architecture The following figure shows an example of a FOUNDATION Fieldbus™ network with the associated components. Field controller Visualisation and monitoring e. g. P View, FieldCare and diagnostic software High speed Ethernet (HSE) 100 Mbit/s linking linking linking 31.25 kbit/s device...
  • Page 24 Operation 5.3.2 Link Active Scheduler (LAS) The FOUNDATION Fieldbus™ works according to the 'producer-consumer' relationship. This provides various advantages. Data can be directly exchanged between field devices, e.g. a sensor and an actuating valve. Each bus user ’publishes’ its data on the bus and all the bus users configured accordingly obtain this data. Publication of this data is carried out by a ’bus administrator’...
  • Page 25 Operation 5.3.5 Function blocks The FOUNDATION Fieldbus™ uses predefined function blocks to describe the functions of a device and to specify uniform data access. The function blocks implemented in each fieldbus device provide information on the tasks which a device can accept in the whole of the automation strategy. In the case of sensors these are typically the following blocks: •...

  • Page 26: Configuration Of The Transmitter And Ff Functions

    The FF communication system will only function properly if correctly configured. You can obtain special configuration and operating programs from various manufacturers for the configuration. Process control systems Asset management systems Endress+Hauser ControlCare National Instruments NI-Configurator (≥ 3.1.1) Emerson DeltaV Emerson AMS and Handheld FC375...
  • Page 27 Operation The DIP switch settings are no longer valid as soon as the display is removed from the head transmitter. A0008326 Fig. 13: Hardware settings via DIP switches Connection to head transmitter DIP switch (1 - 7, SW/HW and ADDR ACTIVE), no function DIP switch (SIM = simulation mode;...

  • Page 28: Commissioning

    Commissioning Commissioning Function check Before commissioning the measurement point make sure that all final checks have been carried out: • Checklist “Post-installation check”→ ä 12 • Checklist “Post-connection check”→ ä 20 The FOUNDATION Fieldbus interface's technical data must be maintained in accordance with IEC 61158-2 (MBP).

  • Page 29: Commissioning

    Commissioning Commissioning Note the following points: • The files required for commissioning and network configuration can be obtained as described on → ä 25. • In the case of the FOUNDATION Fieldbus™, the device is identified in the host or configuration system by means of the device ID (DEVICE_ID).
  • Page 30 Commissioning 6.3.1 Initial commissioning The following description takes you step-by-step through commissioning the device and all the necessary configurations for the FOUNDATION Fieldbus™: Open the configuration program. Load the device description files or the CFF file into the host system or the configuration program.
  • Page 31 Commissioning A0008044 Fig. 14: Screen display in the configuration program “NI-FBUS Configurator” (National Instruments) after the connection has been established Device designation in the Configurator (EH_TMT85_xxxxxxxxxxx = factory setting for tag name PD_TAG) Block structure Configuring the "Resource Block" (base index 400) Open the Resource Block.
  • Page 32 Commissioning Configuring the "Analog Input function blocks" The device has 2 x three Analog Input function blocks which can be assigned to the different process variables as desired. The following section describes an example for the Analog Input function block 1 (base index 900).
  • Page 33 Commissioning Alarm limit HIHI_ALM_OUT_D HI_ALM_OUT_D LOLO_ALM_OUT_D LO_ALM_OUT_D value: PV ≥ HI_HI_LIM PV < HI_HI_LIM PV ≥ HI_LIM PV < HI_LIM PV > LO_LIM PV ≤ LO_LIM PV > LO_LO_LIM PV ≤ LO_LO_LIM System configuration / connecting function blocks (→ å 15): 18.

  • Page 34: Maintenance

    Maintenance Maintenance In general, no specific maintenance is required for this device. Accessories Various accessories, which can be ordered separately from your supplier, are available for the device. When ordering accessories, please specify the serial number of the device! Type Display for head transmitters;...

  • Page 35: Troubleshooting

    Troubleshooting Troubleshooting Troubleshooting instructions Always start troubleshooting with the checklists below if faults occur after start up or during operation. This takes you directly (via various queries) to the cause of the problem and the appropriate remedial measures. NOTICE The device cannot be repaired due to its design. ►...
  • Page 36 Troubleshooting Analog Input function block: There can be several reasons for this. Check the following points one after another: The operating mode cannot be set 1. Check whether the operating mode of the Analog Input function block is set to to AUTO.

  • Page 37: Status Messages

    Troubleshooting Status messages The device displays warnings or alarms as status messages. If errors occur during commissioning or measuring operation, these errors are displayed immediately. This takes place in the configuration program by means of the parameter in the Adv. Diagnostic Block or on the mounted display. A distinction is made here between the following 4 status categories: Status category Description...
  • Page 38 Troubleshooting Categ No. Status messages Error messages in the Sensor Cause of error / remedy Output Sensor Transducer Block in Transducer Block variables – ACTUAL_STATUS_NUMB question measured value affected ER in the 'Advanced status Diagnostics' Transducer Block – Local display 042 Device status message (FF): BLOCK_ERR = QUALITY = BAD...
  • Page 39 Troubleshooting Categ No. Status messages Error messages in the Sensor Cause of error / remedy Output Sensor Transducer Block in Transducer Block variables – ACTUAL_STATUS_NUMB question measured value affected ER in the 'Advanced status Diagnostics' Transducer Block – Local display 103 Device status message (FF): BLOCK_ERR = QUALITY =...
  • Page 40 Troubleshooting Categ No. Status messages Error messages in the Sensor Cause of error / remedy Output Sensor Transducer Block in Transducer Block variables – ACTUAL_STATUS_NUMB question measured value affected ER in the 'Advanced status Diagnostics' Transducer Block – Local display 437 Device status message (FF): BLOCK_ERR = QUALITY = BAD...
  • Page 41 Troubleshooting 9.2.1 Corrosion monitoring Corrosion monitoring is only possible for RTD with 4-wire connection and thermocouples. Sensor connection cable corrosion can lead to false measured value readings. Therefore the unit offers the possibility to recognize any corrosion before a measured value is affected. 2 different stages can be selected in the CORROSION_DETECTION parameter (see Section 11) depending on the application requirements: •...

  • Page 42: Application Errors Without Messages

    Troubleshooting Application errors without messages 9.3.1 Application errors for RTD connection Sensor types → ä 44. Symptoms Cause Action/cure Measured value is incorrect/ Incorrect sensor orientation Install the sensor correctly inaccurate Heat conducted by sensor Observe the face-to-face length of the sensor Device programming is incorrect (number Change SENSOR_CONNECTION device...

  • Page 43: Spare Parts

    Troubleshooting Spare parts When ordering spare parts, please specify the serial number of the device! Type Adapter for top-hat rail mounting, DIN rail clip Standard - DIN securing set (2 screws and springs, 4 shaft lock-down rings, 1 plug for the display interface) US - M4 securing set (2 screws and 1 plug for the display interface) Return For later reuse or to return the device to the service organization of your supplier, the device must...

  • Page 44: Technical Data

    Technical Data Technical Data 10.0.1 Input Measured variable Temperature (temperature linear transmission behavior), resistance and voltage. Measuring range The transmitter records different measuring ranges depending on the sensor connection and input signals (see 'Type of input'). Type of input It is possible to connect two sensor inputs which are independent of each other. These are not galvanically isolated from each other.
  • Page 45 Technical Data Type of input Designation Measuring range limits Thermocouples (TC) Type B (PtRh30-PtRh6) 40 to +1820 °C (104 to 3308 °F) as per IEC 584, Part 1 Type E (NiCr-CuNi) -270 to +1000 °C (-454 to 1832 °F) Type J (Fe-CuNi) -210 to +1200 °C (-346 to 2192 °F) Type K (NiCr-Ni) -270 to +1372 °C (-454 to 2501 °F)
  • Page 46 Technical Data 10.0.3 Power supply Supply voltage U = 9 to 32 V DC, reverse polarity protection (max. voltage U = 35 V) 10.0.4 Performance characteristics Response time 1 s per channel Reference operating • Calibration temperature: + 25 °C ± 5 K (77 °F ± 9 °F) conditions •...
  • Page 47 Technical Data T = -180 °C to -50 °C (-292 °F to -58 °F) These coefficients A, B and C are used for the linearization of nickel or copper resistance thermometers (RTD). The exact values of the coefficients derive from the calibration data and are specific to each sensor.
  • Page 48 Technical Data Example 2: • Input temperature drift Δϑ = 10 K (18 °F), thermocouple type K, measuring range 0 to 600 °C (32 to 1112 °F) • Maximum process temperature: 600 °C (1112 °F) • Measured thermocouple voltages: 24905 μV (see IEC 584) Typical temperature drift in μV: (0,001% of 24905 μV) * 10 = 2.5 μV Conversion to Kelvin: 2,5 μV / 40 μV/K = 0.06 K (0.11 °F) Total measurement inaccuracy of the measuring point...
  • Page 49 Technical Data Electromagnetic compatibility CE EMC compliance (EMC) The device meets all of the requirements mentioned in IEC 61326, Amendment 1, 1998 and NAMUR NE21. This recommendation is a consistent and practical way of determining whether the devices used in laboratories and in process control systems are immune to interference, thus increasing their functional safety.
  • Page 50 Technical Data Weight approx. 40 to 50 g (1.4 to 1.8 oz) Material All materials used are RoHS-compliant. • Housing: Polycarbonate (PC), complies with UL94 HB (fire prevention characteristics) • Terminals Screw terminals: Nickel-plated brass and gold-plated contact Spring terminals: Tin-plated brass, contact spring V2A •...
  • Page 51 Technical Data Certification FOUNDATION The temperature transmitter has successfully passed all test procedures and is certified and Fieldbus™ registered by the Fieldbus Foundation. The device thus meets all the requirements of the specifications following: • Certified according to FOUNDATION Fieldbus™ specification •...
  • Page 52 Operation via FOUNDATION Fieldbus™ Operation via FOUNDATION Fieldbus™ 11.1 Block model In the FOUNDATION Fieldbus™ all the device parameters are categorized according to their func- tional properties and task and are generally assigned to three different blocks. A block may be regarded as a container in which parameters and the associated functionalities are contained.
  • Page 53 Operation via FOUNDATION Fieldbus™ 11.2 Resource Block (device block) The Resource Block contains all the data that clearly identify and characterize the field device. It is an electronic version of a nameplate on the field device. In addition to parameters that are needed to operate the device on the fieldbus, the Resource Block makes information such as the order code, device ID, hardware revision, software revision, device release etc.
  • Page 54 Operation via FOUNDATION Fieldbus™ 11.2.3 Write protection and simulation DIP switches on the optional display allow device parameter write protection and simulation in the Analog Input function block to be disabled or enabled. The WRITE_LOCK parameter shows the status of the hardware write protection. The following sta- tuses are possible: –...
  • Page 55 Operation via FOUNDATION Fieldbus™ 11.2.5 Resource Block FF parameters The following table shows all the specified FOUNDATION™ Fieldbus parameters of the Resource Block. Resource Block Write access with Parameter Parameter Description operating mode Index (MODE_BLK) Acknowledge AUTO - OOS This parameter is used to specify whether a process alarm must be acknowledged at the Option time of alarm recognition by the fieldbus host system.
  • Page 56 Operation via FOUNDATION Fieldbus™ Resource Block Write access with Parameter Parameter Description operating mode Index (MODE_BLK) Cycle Type Read only Displays the block execution method supported by the device. (CYCLE_TYPE) Display: SCHEDULED Timed block execution method BLOCK EXECUTION Sequential block execution method MANUF SPECIFIC Manufacturer specified DD Resource...
  • Page 57 Operation via FOUNDATION Fieldbus™ Resource Block Write access with Parameter Parameter Description operating mode Index (MODE_BLK) Free Space Read only Displays the free system memory (in percent) available for execution of further function (FREE_SPACE) blocks. Since the function blocks of the device are preconfigured, this parameter always displays the value 0.
  • Page 58 Operation via FOUNDATION Fieldbus™ Resource Block Write access with Parameter Parameter Description operating mode Index (MODE_BLK) MS Resource Read only Displays the resource directory for the ENP. Directory (MS_RESOURCE_ DIRECTORY) Nonvolatile Cycle Read only Displays the time interval for which the dynamic device parameters are stored in the Time nonvolatile memory.
  • Page 59 Operation via FOUNDATION Fieldbus™ Resource Block Write access with Parameter Parameter Description operating mode Index (MODE_BLK) Shed Remote Out AUTO - OOS Specifies the monitoring time for checking the connection between the fieldbus host (SHED_ROUT) system and the PID function block in the ROUT operating mode. When the monitoring time elapses, the PID function block changes from the ROUT operating mode to the operating mode selected in the SHED_OPT parameter.
  • Page 60 Operation via FOUNDATION Fieldbus™ 11.3 Transducer Blocks The Transducer Blocks contain all the measuring and device-specific parameters. All the settings directly connected with the application (temperature measurement) are made here. They form the interface between sensor-specific measured value processing and the Analog Input function blocks required for automation.
  • Page 61 Operation via FOUNDATION Fieldbus™ 11.3.2 Selecting the operating mode The operating mode is set by means of the MODE_BLK parameter group (page 62). The Transducer Block supports the following operating modes: • AUTO (automatic mode) • OOS (out of service) The OOS block status is also displayed by means of the BLOCK_ERR parameter (page 62).
  • Page 62 Operation via FOUNDATION Fieldbus™ Transducer Block (FF parameters) Parameter Write access Description with operating mode (MODE_BLK) Strategy AUTO - OOS Parameter for grouping and thus faster evaluation of blocks. Grouping is (STRATEGY) carried out by entering the same numerical value in the STRATEGY parameter of each individual block.
  • Page 63 Operation via FOUNDATION Fieldbus™ Transducer Block (FF parameters) Parameter Write access Description with operating mode (MODE_BLK) Update Event AUTO - OOS Indicates whether static block data have been altered, including date and (UPDATE_EVT) time. Block Alarm AUTO - OOS The current block status appears on the display with information on (BLOCK_ALM) pending configuration, hardware or system errors, including information on the alarm period (date, time) when the error occurred.
  • Page 64 Operation via FOUNDATION Fieldbus™ 11.3.7 Transducer Blocks "Sensor 1 and 2" The "Sensor 1 and 2" Transducer Blocks analyze the signals of both sensors from a metrological per- spective and display them as a physical variable (value and unit). Two physical measured values and an additional primary value which is mathematically calculated from the sensor values (the PRIMARY_VALUE) are available in each Sensor Transducer Block: •...
  • Page 65 Operation via FOUNDATION Fieldbus™ The Transducer Blocks for sensor 1 and 2 have a Wizard (configuration assistant) for calculating the resistance of sensor cables with different material properties, cross-sections and lengths. When measuring temperature with thermocouples, the type of reference junction compensation is specified in the RJ_TYPE parameter.
  • Page 66 Operation via FOUNDATION Fieldbus™ Sensor error adjustment can be performed with the sensor offset. Here, the difference between the reference temperature (target value) and the measured temperature (actual value) is determined and entered in the SENSOR_OFFSET parameter. This offsets the standard sensor characteristic in paral- lel and an adjustment between the target value and actual value is performed.
  • Page 67 Operation via FOUNDATION Fieldbus™ Fig. 3: Linear scaling of temperature-linear curve. • Linearization of platinum resistance thermometers with the aid of Callendar Van Dusen coefficients: The coefficients R0, A, B, C can be specified in the CVD_COEFF_R0, CVD_COEFF_A, CVD_COEFF__B, CVD_COEFF_C parameters. To activate this linearization, select the "RTD Cal- lendar Van Dusen"...
  • Page 68 Operation via FOUNDATION Fieldbus™ The following table shows all the device-specific parameters of the Sensor Transducer Blocks: Transducer Block “Sensor 1 and 2” Parameter Write access Description with operat- ing mode (MODE_BLK) Primary value AUTO - OOS Result of link PRIMARY_VALUE_TYPE: (PRIMARY_VALUE) •...
  • Page 69 Operation via FOUNDATION Fieldbus™ Transducer Block “Sensor 1 and 2” Parameter Write access Description with operat- ing mode (MODE_BLK) Sensor value Dynamic / Sensor Transducer 1: (SENSOR_VALUE) read only • VALUE = Value of the sensor connected to the S1 terminal group •...
  • Page 70 Operation via FOUNDATION Fieldbus™ Transducer Block “Sensor 1 and 2” Parameter Write access Description with operat- ing mode (MODE_BLK) Calibration highest point AUTO - OOS Upper point for linear characteristic calibration (this affects offset (CAL_POINT_HI) and slope). To write to this parameter, SENSOR_CAL_METHOD must be set to "User Trim Standard Calibration".
  • Page 71 Operation via FOUNDATION Fieldbus™ Transducer Block “Sensor 1 and 2” Parameter Write access Description with operat- ing mode (MODE_BLK) Callendar Van Dusen Mea- AUTO - OOS Lower calculation limit for Callendar Van Dusen linearization. suring Range Minimum (CVD_COEFF_MIN) Polynom Coeff. A AUTO - OOS Sensor linearization of copper/nickel resistance thermometers (POLY_COEFF_A)
  • Page 72 Operation via FOUNDATION Fieldbus™ 11.3.8 Transducer Block "Advanced Diagnostic" The Transducer Block "Advanced Diagnostic" is used to configure all the diagnostic functions of the transmitter. Functions such as – Corrosion detection – Drift detection – Ambient temperature monitoring can be configured here. Corrosion monitoring Sensor connection cable corrosion can lead to false measured value readings.
  • Page 73 Operation via FOUNDATION Fieldbus™ In addition, the entire status information of the device and the maximum indicators of the two sen- sor values and the internal temperature are available. Transducer Block “ADVANCED DIAGNOSTIC” Parameter Write access Description with operating mode (MODE_BLK) Corrosion detec- AUTO - OOS...
  • Page 74 Operation via FOUNDATION Fieldbus™ Transducer Block “ADVANCED DIAGNOSTIC” Parameter Write access Description with operating mode (MODE_BLK) Actual status Read only / Current/past status number: number / previ- AUTO - OOS 000 NO_ERROR: No error is present ous status num- 041 SENSOR_BREAK: Sensor rupture 043 SENSOR_SHORTCUT: Sensor short circuit (ACTUAL_ 042 SENSOR_CORROSION: Corrosion of connections or sensor cables...
  • Page 75 Operation via FOUNDATION Fieldbus™ Transducer Block “ADVANCED DIAGNOSTIC” Parameter Write access Description with operating mode (MODE_BLK) Primary Value 2 AUTO - OOS Maximum indicator for the maximum value to occur for PV2, can be reset Max. Indicator PV2_MAX_ INDICATOR Primary Value 2 AUTO - OOS Maximum indicator for the minimum value to occur for PV2, can be reset Min.
  • Page 76 Operation via FOUNDATION Fieldbus™ Transducer Block “DISPLAY” Parameter Write access Description with operating mode (MODE_BLK) Alternating time AUTO - OOS Entry (in s) as to how long a value should be shown on the display. Set- ALTERNATING_ ting from 6 to 60 s. TIME Display value x Read only...
  • Page 77 Operation via FOUNDATION Fieldbus™ • Value 3: Measured value to be displayed: Sensor Value (measured value) of Sensor Transducer 2 (SV2) Unit: ° C Decimal places: Every measured value should be visible on the display for 12 seconds. For this purpose, the following settings should be made in the "Display" Transducer Block: Parameter Value DISP_SOURCE_1...
  • Page 78 Operation via FOUNDATION Fieldbus™ 11.4 Analog Input function block In the Analog Input (AI) function block, the process variables of the Transducer Blocks are prepared for subsequent automation functions (e.g. linearization, scaling and limit value processing). The automation function is defined by connecting up the outputs. A detailed description of the Analog Input (AI) function block can be found in the FOUNDATION Fieldbus™...

  • Page 79: Index

    Index Index Sensor connection combinations ....14 Spring terminals CE mark (Declaration of Conformity)....6 Fine-strand wire without ferrule .
  • Page 80 BA01135O/09/EN/02.12 71202058 FM9.0...
