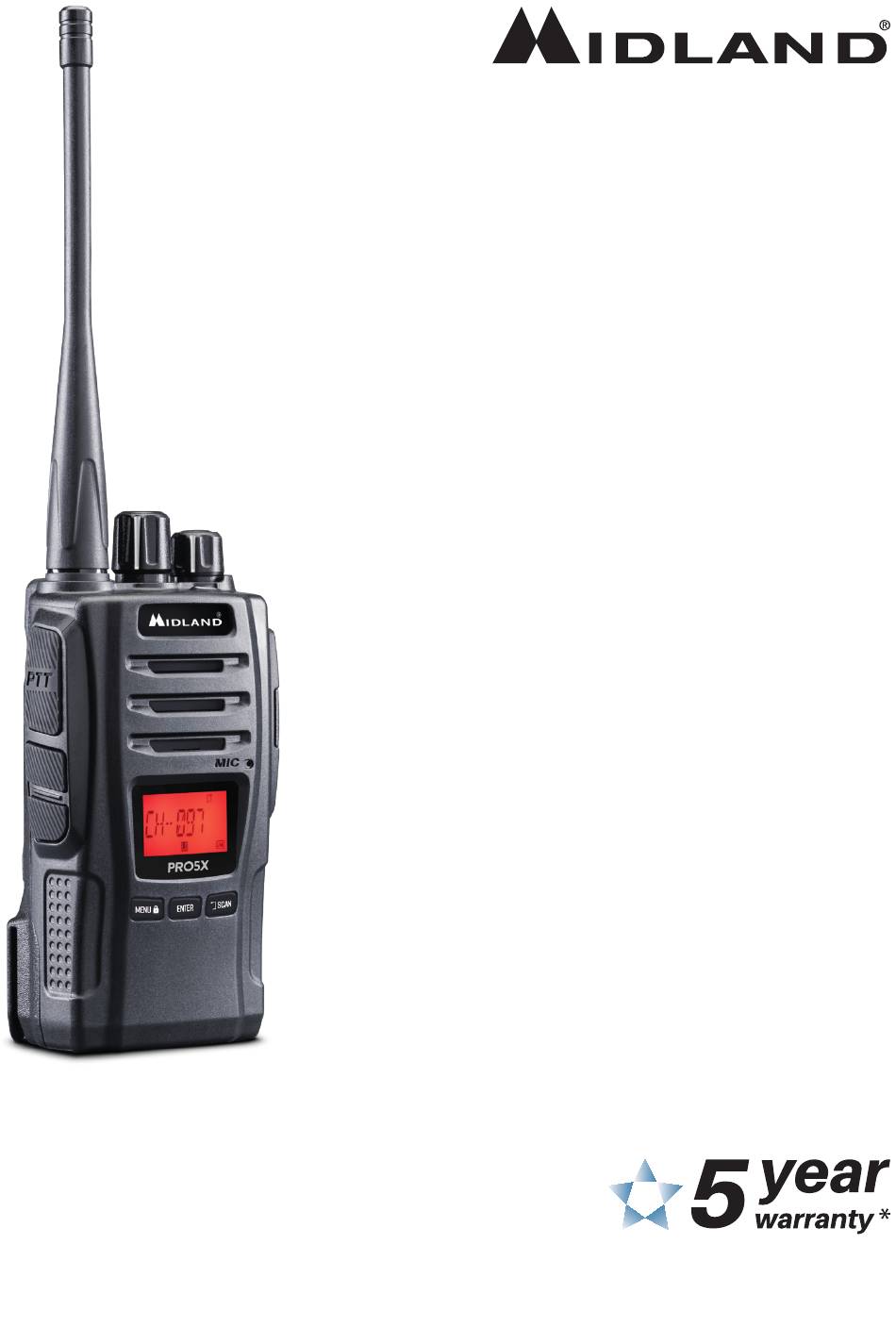

- Page 1 PRO5X *3 year standard warranty. 5W UHF LMR/CB To claim bonus 2 year warranty visit www.midlandaustralia.com.au 80CH IP54 WATER/DUSTPROOF to register your product.
-
Page 2: Table Of Contents
CONTENTS What’s In The Box ................................3 Technical Features................................3 Specifications ..................................4 Programming Software (Optional) ........................5 Coverage/Range ................................5 Suggestions and Warnings ............................5 Function Keys and Icons ............................6 LCD Display ..................................7 Radio .....................................7 Battery Recharge ................................8 Operations ..................................8 Power On/Off and Volume Adjustment ......................8 Transmission and Reception ...........................8 Monitor ....................................9 Scrambler ...................................9... -
Page 3: What's In The Box
What’s In The Box • PRO5X Transceiver • Belt Clip • Li-Ion Battery Pack 2600mAh • Desktop Charger • Wall Adaptor Optional Accessories • MA25LK Waterproof Speaker Microphone • MA31LK Air Tube Earpeice Microphone • MA21LK Earpeice Microphone • CA13-4 4-Bay Desktop Charger •... -
Page 4: Specifications
Specifications General Frequency Range: 450- 520 MHz Channels: 80/128 Operating temperature: -20°+55° Operating voltage: 7.4V Operating mode: Simplex/Duplex Dimensions: 60mmx42mmx117mm (Antenna excluded) Weight: 261g (Battery included) Impedance: Antenna 50Ω Duty cycle: 5/5/90% Category: SAR: 0.647W/Kg Transmitter Frequency Stability: ±2.5PPM Output Power: ≤5W ERP Max Frequency Deviation: ≤2,5KHz... -
Page 5: Programming Software (Optional)
Normally the coverage in the city will be far less than in open spaces. Suggestions and Warnings Your PRO5X is designed to fulfill any warranty obligations and for you to enjoy this product for many years. We recommend you to follow these suggestions: - Do not attempt to open the unit. -
Page 6: Function Keys And Icons
Function Keys and Icons... -
Page 7: 22. Lcd Display
LCD Display 1. Keypad Lock On Icon 2. Selected CTCSS Tone or DCS Code 3. Menu Number in Menu Mode or CH Scanning Active 4. Battery Level 5. Channel In Use 6. Dual Watch Activated 7. VOX Function On 8. Power Level Setting 9. -
Page 8: Battery Recharge
Battery Recharge The PRO5X is equipped with a 7.4V Li-ion rechargeable battery pack, which can be recharged by connecting the socket of the AC/DC wall adaptor to a mains power socket and inserting the jack of the wall adaptor into the desktop charger plug. -
Page 9: Monitor
Monitor Mode The Monitor feature is for excluding (opening) the Squelch, in order to listen to signals that are very weak. Press briefly the Function key 1 to enable this function. Scrambler The scrambler feature is designed to protect communications. This feature prevents parties from other networks from hearing and understanding voice communications. -
Page 10: Squelch (Sq)
To select the Squelch level: 1. Press the MENU button. 2. Turn the CH +/- knob until SQ is displayed. 3. Press the ENTER button. 4. Turn the CH +/- knob and select the desired Squelch level (10 levels are available). 5. -
Page 11: Beep (Keypad)
Beep (Keypad) Every time a button is pressed, you will hear a Beep tone. To enable/disable the beeps, follow this procedure: 1. Press the MENU button. 2. Turn the CH +/- knob until BEEP is displayed. 3. Push ENTER to enter the function. 4. -
Page 12: Tot- Function Tx Timeout Timer
3. To confirm press ENTER then Press BACK to exit the MENU. TOT (TX timeout timer) The PRO5X can be programmed with a transmission timer that temporarily blocks transmissions if the radio has been used beyond the maximum time permitted. -
Page 13: Troubleshooting
Troubleshooting Problem Possible Cause Solution The radio doesn’t switch on. The battery pack is discharged and/ Verify that the battery pack is or has not been installed correctly. charged and that it has been correctly installed. The radio switches off shortly after it Discharged battery pack. -
Page 14: Notes
Notes... - Page 15 Notes...
- Page 16 National Service Centre: 10 STODDART ROAD, PROSPECT, SYDNEY NSW 2148 Australia Telephone: (02) 8841 9000 Fax: (02) 9636 1204 Email: services@audioxtra.com.au...
