Ronix 8930 Manual

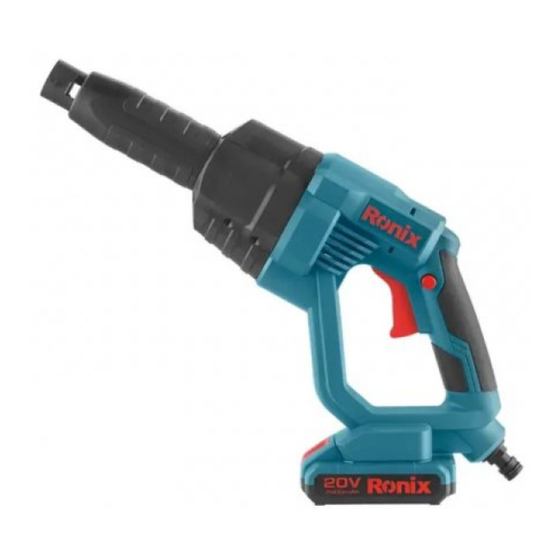

Cordless pressure washer
Hide thumbs Also See for 8930:
Table of Contents

Advertisement

Quick Links

Download this manual
CORDLESS PRESSURE WASHER
8930

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8930 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 8930

Summary of Contents for Ronix 8930

  • Page 1 CORDLESS PRESSURE WASHER 8930...

  • Page 2: Specification

    Nozzle type 6(0,15,25,40,Shower,Diagonal) Water-sucking Height >4m Working Pressure 24.5Bar Spray Response Speed <15 Sec Supplied In Ronix Color box Battery Capacity 2.0Ah Spray Response time <15 sec Battery Charging Time 6m Hose, Mesh Bag , Bottle Includes Connector , Detergent Bottle...

  • Page 3: Part List

    PART LIST Ventilation Slits Cleaning Agent Nozzle Release Button Switch Lever Cleaning Agent Container Water Connection Nozzles Spray lance Guide Rail Suction Hose With Filter Basket Mesh Bag Release Button Charger Rechargeable Battery CORDLESS PRESSURE WASHER...

  • Page 4: Intended Purpose

    INTRODUCTION Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product.

  • Page 5: General Description

    GENERAL DESCRIPTION The diagram of the most im- portant functional elements can be found on the foldout side. SCOPE OF DELIVERY CAREFULLY UNPACK THE APPLIANCE AND CHECK THAT IT IS COMPLETE: - Device - Spray lance - Suction hose - Mesh bag - Cleaning agent nozzle with container - Instructions for use BATTERY AND CHARGER ARE NOT INCLUDED.

  • Page 6: Notes On Safety

    WARNING! The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Try to keep the exposure to vibra- tions as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours.

  • Page 7: Symbols In The Manual

    SYMBOLS IN THE MANUAL WARNING! symbols with information on damage and injury prevention. Hazard symbol with information on the pre- vention of personal in- jury caused by electric shock. Instruction symbols with infor- mation on preventing damage. Help symbols with informa- tion on improving tool han- dling. GENERAL NOTES ON SAFETY they function and operate.

  • Page 8: Working With The Equipment

    be switched off immediately and the battery removed. Then read page 11 of the operating instructions for possible fault causes or contact our service centre. WORKING WITH THE EQUIPMENT CAUTION: TO AVOID ACCIDENTS AND INJURIES: High-pressure washers can be dangerous if used incor- rectly. The jet must not be directed at persons, animals, active electrical equipment or the device itself.

  • Page 9: Electrical Safety

    resulting from this: - Do not work with damaged or incomplete equipment, or with equipment that has been converted without the ap- proval of the manufacturer. Before initial operation, have a specialist check that the required electrical protection measures are in place. - Do not use the device if import-ant parts such as the suction hose, nozzles or the spray lance are damaged.

  • Page 10: Connecting The Water Supply

    A system separator (check valve) prevents the backflow of water and detergent into the drinking water pipeline. - Employ an ordinary garden hose for the water intake and ensure sufficient length. - Use the device on a domestic water connection with maximum pressure of 5 bar.

  • Page 11: Operation

    BLEEDING THE HOSE Make sure that there is no air in the suction hose. Immerse the suction hose and filter basket (10) completely into the water col- lector (e.g. rain barrel) to bleed it. DRY RUNNING WILL DAMAGE THE DEVICE INSERTING/REMOVING THE RECHARGEABLE BATTERY 1) To insert the battery (12) into the device, push the battery (12) along the guide rail into the device.

  • Page 12: Using Detergents

    If there is a leak in the water system, switch off the device immediately and remove the battery. Risk of electric shock! Try connecting the water again (see “Initial start-up - connecting the water supply”). ENDING OPERATION 1) After having worked with a detergent rinse the pressure cleaner with clear water.

  • Page 13: Cleaning And Maintenance

    equipment is not covered by the guarantee. CLEANING AND MAINTENANCE Remove the battery before carrying out any work on the device. This also includes connecting to the water supply or trying to eliminate leaks. There is a risk of electrocution or of injury from moving parts. CLEANING Never direct the water jet against the pressure cleaner, nor clean the pressure clean- er under flowing water.

  • Page 14: Waste Disposal And Environmental Protection

    Disconnect the device from the water supply. Switch on the battery pressure washer for a few seconds until no more water emerges from the spray lance (9). Turn off the device. Y WITH THE - Store all spray lances (9) verticall connection side facing downwards.
  • Page 15 product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product.

  • Page 16: Troubleshooting

    TROUBLE SHOOTING Problem Possible cause Remedy Rinse the nozzles (8) with wa- Strong pressure Nozzles (8) dirty/ ter. If required, clean the nozzle fluctuations clogged bore hole with a needle (see Cleaning section). Device does not Battery is flat Charge rechargeable battery. work Switch off the device and Connections not correct-...
