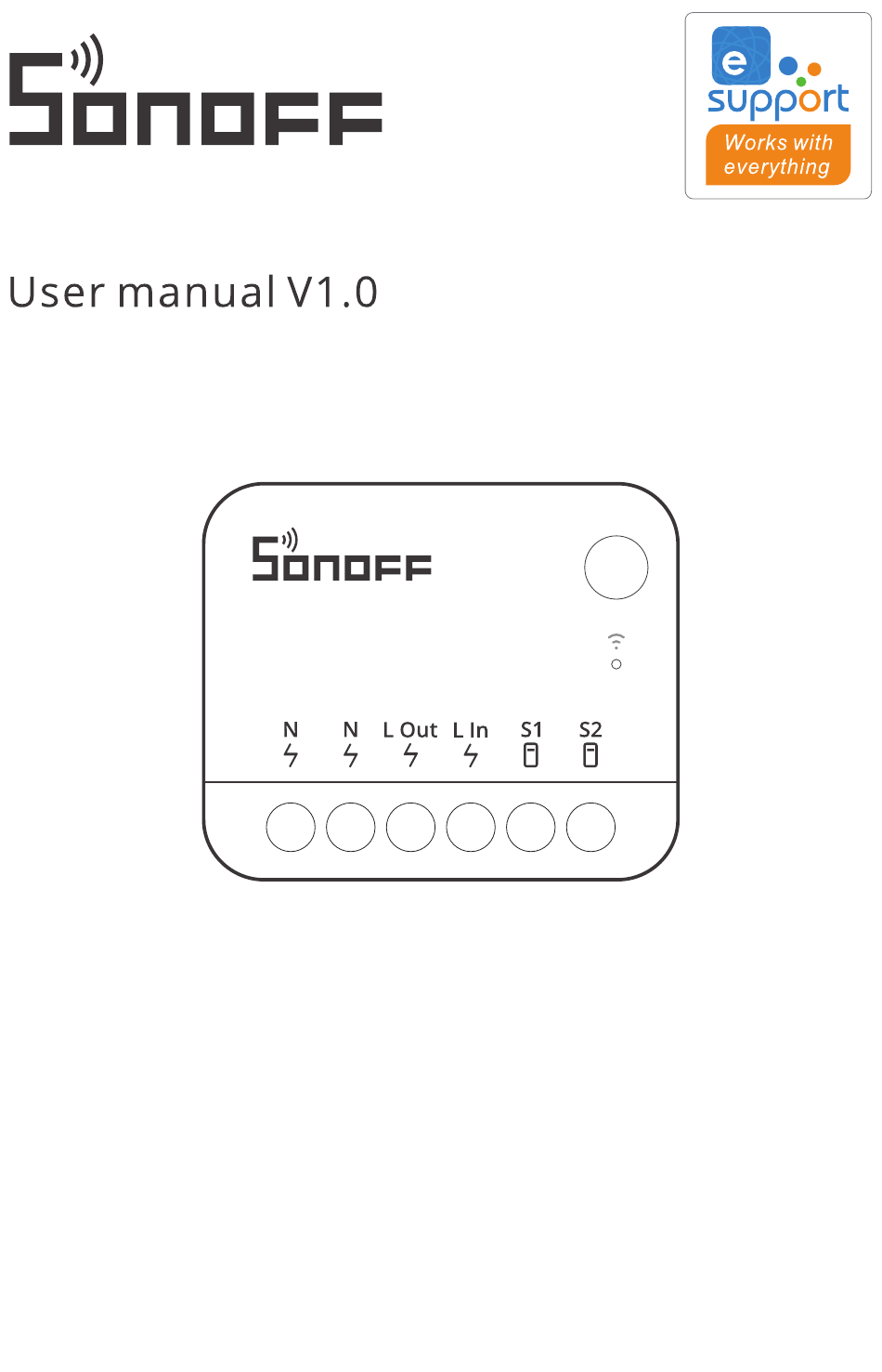

English Product introduction Button Network indicator Wiring ports The device weight is less than 1kg, and the recommended installation height is less than 2m. Instruction of LED indicator status LED indicator status Status instruction Blue LED indicator flashes Bluetooth pairing mode (one long and two short) Blue LED indicator keeps on Device is online...
English Features MINI Extreme is compact and tiny enough to be installed in the mounted box, and it supports loads of up to 10A, enable to transform your ordinary switch into a smart switch. Safe and smart, allows you to set smart scenes with other smart devices to automate your home.
Page 11
English 2. Wiring instruction Before installing the device, please install an air switch as the protective device (Air switch: 10A/250V). 1、No matter S1 and S2 are connected or left idle to the external switch, this device canbe controlled by automation or the App. 2、To avoid damaging the equipment and causing danger, it is forbidden to connect S1 to strong electricity such as neutral wire or earth wire or to connect S2 to strong electricity such as live wire, neutral wire, earth wire and etc.
Page 12
English 2. Power on After powering on, the device will enter the Bluetooth Pairing Mode defaulted during the first use, and the Network indicator flashes in a cycle of two short and one long. The device will exit the Bluetooth Pairing Mode if not been paired within 10mins. If you want to enter this mode again, please long press the button for 5s until the Network indicator flashes in a cycle of two short and one long and then release.
Page 13
English Add eWeLink-Remote Sub-devices Enter the Device Settings page on the eWeLink App, select "eWeLink-Remote sub-devices" and tap "Add", then trigger the sub-device to add it successfully. Install the MINI Extreme in the mounting box...
English Specifications Model MINIR4 Input 100-240V ~ 50/60Hz 10A Max Output 100-240V ~ 50/60Hz 10A Max Max. power 2400W Wi-Fi IEEE 802.11b/g/n 2.4GHz Working temperature -10℃-40℃ Working humidity 5%-95% RH, non-condensing Casing material PC V0 Dimension 39.5x33x16.8mm Device Network Changing Change the device's network by "Wi-Fi Settings"...
Page 15
English 3、Make sure your Wi-Fi works on 2.4GHz band. 4、Make sure to enter the Wi-Fi SSID and password correctly without special characters. Incorrect password is a common cause of pairing failure. 5、To ensure good signal transmission while pairing, please place the device close to the router.
Warning FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could avoid the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 17
Warning IC Warning This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Page 18
Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type MINIR4 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://sonoff.tech/usermanuals Operation frequency Range: 2402-2480MHz(BLE) 2412-2472MHz(Wi-Fi) RF Output Power: 2dBm(BLE)
