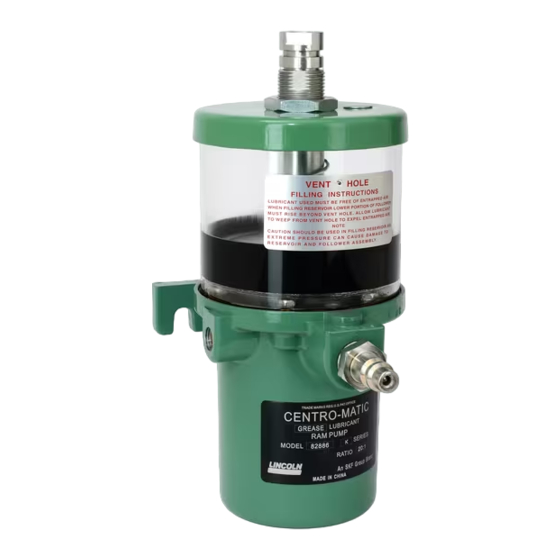

- Page 1 User and maintenance instructions Air operated grease pump Model 82886, series “K” Date of issue October 2022 Form number 402819 Version...
-
Page 2: Table Of Contents
Contents Declaration of Incorporation* U.K. Declaration of Incorporation* Safety* Signal words for safety Specifications To fill reservoir To prime system Supply lines: Feeder lines: Injectors: Operation of the pump What to do if Service parts Types of installations Mechanical control Electrical control Manual control Warranty... -
Page 3: Declaration Of Incorporation
5148 N Hanley Road St Louis, MO 63134 U S A TEL: +1 (314) 679-4200 FAX: +1 (314) 679-4367 Authorized to compile the technical file: SKF Lubrication Systems Germany GmbH Heinrich-Hertz-Straße 2-8 69190 Walldorf, Germany TEL: +49 (0) 6227-330 EMAIL: robert collins@skf com WEBSITE:... -
Page 4: U.k. Declaration Of Incorporation
Authorized to compile the technical file: SKF (U.K.) Limited 2 Canada Close Banbury, Oxfordshire, OX16 2RT, GBR EMAIL: robert collins@skf com WEBSITE: www skf com This U K Declaration of Incorporation is along with the following Directive(s) that The following EHSR (Essential Health and... -
Page 5: Safety
Explanation of signal words Safety* CAUTION for safety Do not operate equipment without The assembly must be installed, maintained wearing personal protective gear and repaired exclusively by persons familiar Wear eye protection Protective with the instructions equipment such as dust mask, non-skid NOTE Always disconnect power source Emphasizes useful hints and... -
Page 6: Specifications
Specifications Lubricant operationg presure Output per Reservoir Lubricant Type of Ratio stroke capacity Air inlet outlet syste Minimum Maximum Recommended 20:1 0 45 in 1 lb in NPT (F) in NPT (F) SL-32 1 200 psi with 3 500 psi with 1 500 psi with (7.4 cm (492 cm... -
Page 7: Operation Of The Pump
NOTE NOTE Pump must be installed in a vertical In reassembling the 84174 check and postion extension assembly, the vent pressure must be reset Vent pressure can be varied by the adjusting screw 14288 The recommended pressure setting is 25 psi (1,7 bar) minimum to 75 psi (5,2 bar) maximum An improper setting will affect the pump efficiency Assemble 14288 with nonhardening... - Page 8 Fig. 3...
-
Page 9: Service Parts
Service parts Part no Description Quantity Part no Description Quantity 14288 Ball stop 56106 Spring 14290 Check body 66250 Ball 14341 Bushing 66725 Retaining ring 14953 Bushing 68797 Plug bottom 31020 Gasket 69295 Filter 31086 Gasket 84174 Check assembly 34211 O-ring (Nitrile) 246174 Cylinder end... - Page 10 Fig. 4...
-
Page 11: Types Of Installations
Types of installations Frequency of lubrication cycle can be con- trolled mechanically, electrically or manually Fig. 5 Mechanical control When using mechanical motion of machine to control lubrication frequency, three way valve is engaged by cam, permitting air to pass through valve to pump, forcing air pis- ton forward and lubricant through supply line to injectors When the valve is disen- gaged, air exhausts back through valve, and... -
Page 12: Manual Control
Manual control Fig. 7 Opening three way valve for a minimum of 10 seconds permits air to flow to pump forc- ing air piston forward and lubricant through supply line to injectors When valve is closed, air exhausts back through valve, and spring in pump returns air piston, completing lubri- cation cycle... - Page 13 This page left intentionally blank...
- Page 14 This page left intentionally blank...
- Page 15 This page left intentionally blank...
-
Page 16: Warranty
® SKF and Lincoln are registered trademarks of the SKF Group © SKF Group 2022 The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permission is granted Every care has been taken to ensure the accuracy...
