Klafs 18033 Operating Instructions Manual

Klafs 18033 Operating Instructions Manual

Sanarium b, s with controller
Hide thumbs Also See for 18033:
Table of Contents

Advertisement

Quick Links

Operating instructions
Klafs SANARIUM B, S with 18033 controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 18033 and is the answer not in the manual?

Questions and answers

Related Manuals for Klafs 18033

Summary of Contents for Klafs 18033

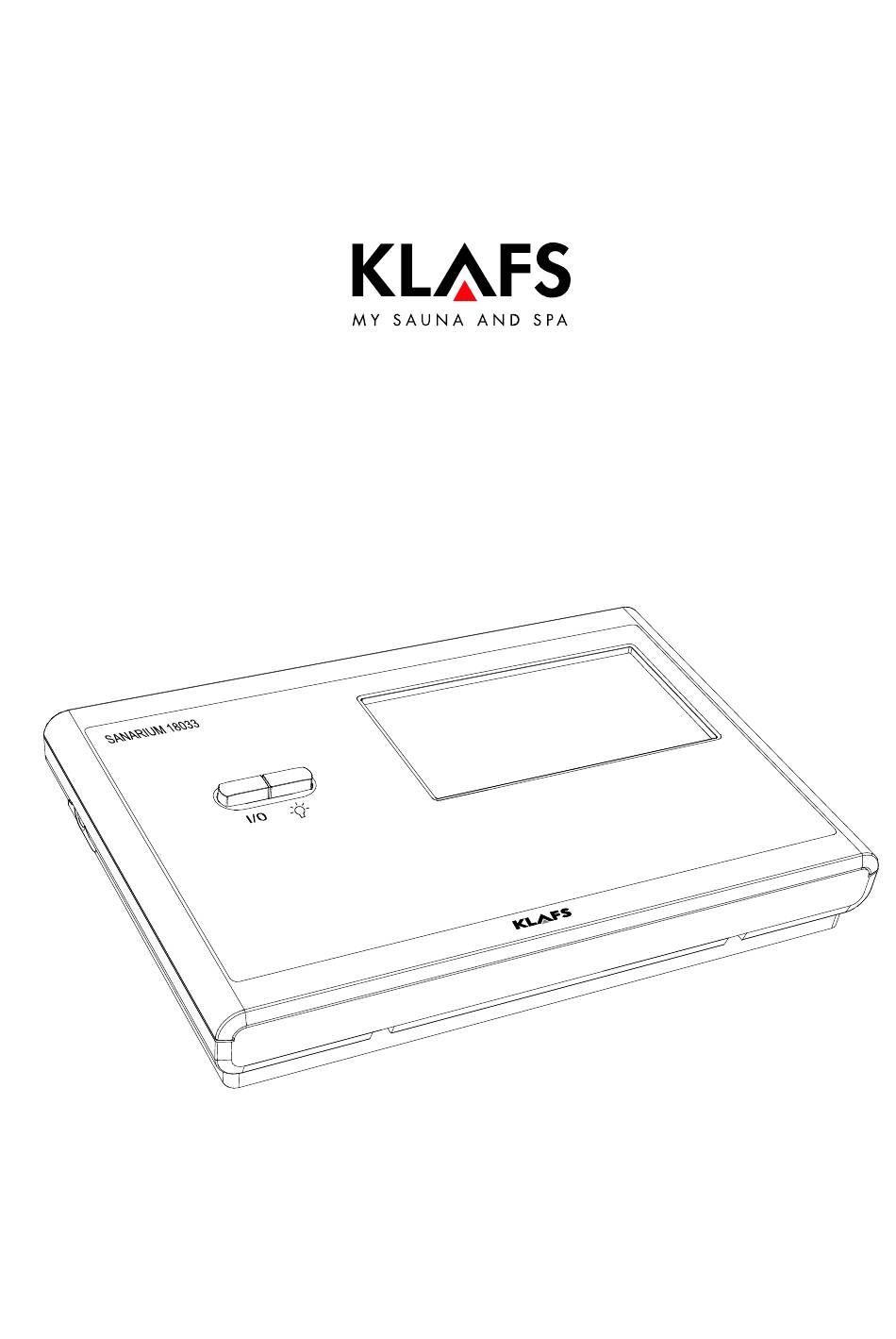

  • Page 1 Operating instructions Klafs SANARIUM B, S with 18033 controller...

  • Page 2: Table Of Contents

    Contents Page Quick guide - SANARIUM controller ......Bathing modes ..........2.1.
  • Page 3 Contents Page 10.12. Climate Manager (optional) ..........10.13.

  • Page 4: Quick Guide - Sanarium Controller

    SANARIUM B, S Quick guide - SANARIUM controller The Klafs SANARIUM controller enables you to operate your SANARIUM quickly and easily. There are three or four preset standard programs for each bathing mode (Sauna/SANARIUM). Any changes made to the standard program settings are saved in a custom program. There is a custom program for each bathing mode.

  • Page 5: Bathing Modes

    SANARIUM B, S Bathing modes All bathing modes in your Klafs SANARIUM have been designed to improve your general health and well-being. However, you should still take into account any pre-existing health conditions when choosing your bathing program. This includes:...

  • Page 6: Technical Data

    SANARIUM B, S Technical data Controller type 18033: 3/N/PE ~400 V, max. 9 kW. Optional InfraPLUS: 1/N/PE ~230 V, max. 350 W per InfraPLUS unit. Ambient conditions: Temperature 0 °C to 35 °C, max. relative humidity 80 %. Intended use The controller is intended for use with the heaters tested and approved by the German VDE (Association for Electrical, Electronic and Information Technologies) or TÜV (Technical Inspection...

  • Page 7: General Safety Information

    VDE regulations. Use a residual-current breaker I 3-mm contact opening in the connecting feed line. Contact Klafs customer service if faults cannot be rectified by a qualified electrician. Remote activation (remote power-on unit): Setting, controlling and/or adjusting the controller using a command or a remote control unit performed outside of the range of vision of the sauna heater.

  • Page 8: Controller

    SANARIUM B, S Controller 7.1. Operating and display elements Item Description Controller main switch. The main switch switches off the mains power to the controller. The internal clock has a power reserve for a few months in the event of a power failure.

  • Page 9: Touchscreen - Overview

    SANARIUM B, S Controller 7.2. Touchscreen - Overview Section Description Cabin control (optional). Function for remotely controlling the controller via the Klafs Sauna smartphone app. See page 11. Bathing mode. See page 13. Status bar. Display only, no touchscreen function.

  • Page 10: Touchscreen - Basic Operation And Display Symbols

    SANARIUM B, S Controller 7.3. Touchscreen - Basic operation and display symbols The control panel must be switched on at the main switch. See page 18. Operate the control panel by pressing on the touchscreen with your finger. The touchscreen is divided into display sections and function symbols. Functions are activated by pressing the symbols displayed.

  • Page 11: Touchscreen - Section 1: Cabin Control With Door Contact Switch (Optional)

    Performs a visual precheck of the inside of the cabin to ensure that there are no flammable objects near the sauna heater or the infrared heater. Notice: The cabin can only be started via the Klafs Sauna app if this visual check has been carried out after the last sauna session.

  • Page 12: Touchscreen - Section 1: Cabin Control Without Door Contact Switch

    Carry out a visual precheck of the inside of the cabin to ensure that there are no flammable objects near the sauna heater or the infrared heater. The cabin can only be started via the Klafs Sauna app if this visual check has been carried out after the last sauna session.

  • Page 13: Touchscreen - Section 2: Bathing Modes

    SANARIUM B, S Controller 7.6. Touchscreen - Section 2: Bathing modes Symbol: Display/function: Sauna mode. See page 23. bathing mode. Only available with the Sauna bathing mode. When the PUR symbol appears, the cabin has reached the correct temperature for the P bathing mode and it can be switched on.

  • Page 14: Touchscreen - Section 3: Status Bar

    The Climate Manager is connected and in operation. The Climate Manager automatically controls the speed of the fan. The Klafs IMES-1 is connected. There are no faults in the data exchange between Klafs IMES-1 and the controller. The controller is in Service mode.

  • Page 15: Touchscreen - Section 4: Digital Display Of Bathing Parameters, Digital Display Of

    SANARIUM B, S Controller 7.8. Touchscreen - Section 4: Digital display of bathing parameters, digital display of preset time mode, ready-to-use symbol Symbol: Display/function: Displays the temperature in digital form. Ready-to-use symbol. The inside of the cabin has reached the set temperature. Displays the time in digital form.

  • Page 16: Touchscreen - Section 5: Special Features, Cabin Light, Clock

    Symbol is flashing at 1 Hz = Touchscreen can be used. Symbol appears = Touchscreen is locked. Setting up the touchscreen lock - See Servicing Instructions 18029, 18033, 18040. To switch the touchscreen lock on/off, see page 48. Set the scent pump.

  • Page 17: Touchscreen - Section 6: Controller With Bar Scale, Parameter Input

    SANARIUM B, S Controller 7.10. Touchscreen - Section 6: Controller with bar scale, parameter input Symbol: Display/function: The bar scale displays the settings in ten bars. The bar scale is used to set parameters such as humidity, music volume, fan speed, scent and InfraPLUS intensity.

  • Page 18: Basic Functions And Settings

    SANARIUM B, S Basic functions and settings 8.1. Switching the power supply on/off at the main switch Switching the power supply on Press button (1). The controller goes into standby mode. When the controller is switched on, the following symbols are displayed: Bathing mode, on/off, cabin light and clock.

  • Page 19: Switching The Cabin Light On/Off

    SANARIUM B, S Basic functions and settings 8.2. Switching the cabin light on/off Press button (1). Or press the symbol (2) if the controller is switched on. The cabin light switches on or off. The cabin light can be switched on by pressing button (1) even when the main switch is off.

  • Page 20: Setting The Time

    SANARIUM B, S Basic functions and settings 8.3. Setting the time Press the symbol (1) or (2). The digits for the hour start flashing. Set the hour by pressing the +/- symbols. Confirm the set hour by pressing the OK symbol.

  • Page 21: Standby Mode

    The cabin control function for remotely controlling the controller via the Klafs Sauna app is only available for cabins that have WLAN installed and activated. See page 14 for the WLAN function.

  • Page 22: Setting The Water Hardness

    SANARIUM B, S Basic functions and settings 8.5. Setting the water hardness Requirement: Ask your water supplier about your area's water hardness in order set the correct settings on the control panel. Start SANARIUM mode. Press the symbol (1). The screen for setting the humidity is displayed. Press the symbol (1) again twice within one second.

  • Page 23: Operation

    SANARIUM B, S Operation 9.1. Sauna mode Risk of fire! Before commissioning the controller, always ensure that there are no flammable objects near the sauna heater or infrared heater in the cabin. To enjoy a sauna, empty the evaporator water tank. To decommission the evaporator, see page 38, 39.

  • Page 24: Pur Bathing Mode

    SANARIUM B, S Operation 9.2. bathing mode The P bathing mode is only available with the Sauna bathing mode. Starting P bathing mode To start the P bathing mode, the Sauna bathing mode must be started and the cabin must reach the preset temperature. Once the preset temperature has been reached, the symbol (1) appears.

  • Page 25: Sanarium Mode

    SANARIUM B, S Operation 9.3. SANARIUM mode Risk of fire! Before commissioning the controller, always ensure that there are no flammable objects near the sauna heater or infrared heater in the cabin. On models with a key switch (optional), changes to bathing parameters in the sauna cabin must be confirmed by pressing the key switch within 30 minutes.
  • Page 26 SANARIUM B, S Operation 9.3. SANARIUM mode Continued Stopping SANARIUM Press the symbol (1). The bathing mode is cancelled. The backlit ring goes out. Automatic follow-on program after SANARIUM mode On models with wall-mounted air extractor control: Set air extractor opening to position 4.

  • Page 27: Infraplus Mode (Optional)

    SANARIUM B, S Operation 9.4. InfraPLUS mode (optional) Risk of fire! Before commissioning the controller, always ensure that there are no flammable objects near the sauna heater or infrared heater in the cabin. On models with a key switch (optional), changes to bathing parameters in the sauna cabin must be confirmed by pressing the key switch within 30 minutes.
  • Page 28 SANARIUM B, S Operation 9.4. InfraPLUS mode (optional) Continued Starting InfraPLUS Step inside the cabin and put the backrest into position: Raise the backrest, swing it out and then set it down on the bench. Place a towel down where you will sit. Sit down in front of the infrared heater with a naked upper body.
  • Page 29 SANARIUM B, S Operation 9.4. InfraPLUS mode (optional) Continued Stopping InfraPLUS Press the symbol (1). The bathing mode is cancelled. The backlit ring goes out. Automatic follow-on program after using InfraPLUS mode On models with wall-mounted air extractor control: Set air extractor opening to position 4.

  • Page 30: Remote Power-On Unit (Optional)

    SANARIUM B, S Operation 9.5. Remote power-on unit (optional) Cabin light LED. Bathing mode LEDs. Cabin light button H, Indicates the selected bathing Switches cabin light mode. on/off. Mode button G, for selecting bathing mode. The remote power-on unit is available as an optional extra. Please see delivery documents for scope of supply.

  • Page 31: Ur Button, With/Without Ir Receiver

    SANARIUM B, S Operation 9.6. Interior display (optional), with SaunaP button, with/without IR receiver IR-receiver LED. SaunaP bathing mode LED active/inactive. Seven-segment display. SaunaP button. Start/stop the bathing mode. Sauna - time Sauna - actual temperature SANARIUM - actual humidity Target humidity Target temperature Remaining bathing time...

  • Page 32: Interior Display (Optional), With Saunap

    SANARIUM B, S Operation 9.6. Interior display (optional), with SaunaP button, with/without IR receiver Continued Starting the SaunaP bathing mode Prerequisite: The temperature must be reached. The symbol must appear in the display. If necessary, start the Sauna bathing mode, see page 23. It is possible to start the SaunaP bathing mode using the controller or on the interior display (optional).

  • Page 33: Green Sauna Button

    SANARIUM B, S Operation 9.7. Green Sauna button Green Sauna operating status: LED lights up green = Green Sauna active. No bathing session. Devices that are not required can be switched off. Touch key. LED lights up blue = Green Sauna on standby. Bathing session.

  • Page 34: Wellcontrol (Optional)

    SANARIUM B, S Operation 9.8. WELLCONTROL (optional) WELLCONTROL allows you to operate the sauna controller via the interior display with infrared sensor. AQUAVIVA, Starry Sky, coloured light and reading light switch off after a delay of up to 30 seconds after the bathing program has finished. WELLCONTROL button functions: Changes the temperature.
  • Page 35 Only use batteries with a temperature rating up to 130 °C. Batteries that have a lower temperature rating may leak or cause an exothermic oxidation reaction (explosion). Battery brand Tadiran, type: SL-560/S. Can be ordered from Klafs, for example, with the item number 30601167. PAGE 35 50701206/02.18...

  • Page 36: Sanarium B - Commissioning The Evaporator

    SANARIUM B, S Operation 9.9. SANARIUM B - Commissioning the evaporator Filling the evaporator Only fill the evaporator when it is cold. Fill with the water quantity required for the intended bathing time. Do not put any additives into the water.

  • Page 37: Sanarium S - Preparing The Evaporator

    SANARIUM B, S Operation 9.10. SANARIUM S - Preparing the evaporator Open the angle valve (1) for the water inlet. Switch on the illuminated switch (2) on the evaporator. Once the evaporator is ready, the green OPERATION LED lights up. If the yellow or red LED (3) lights up: Carry out maintenance as described on page 60.

  • Page 38: Sanarium B - Decommissioning The Evaporator

    SANARIUM B, S Operation 9.11. SANARIUM B - Decommissioning the evaporator Draining residual water Drain the water after every bath. Danger of scalding! The residual water will be hot straight after a session has finished. Place the filler can (1) under the drain (2). Open the drain valve (3) - turn the drain valve to the right.

  • Page 39: Sanarium S - Decommissioning The Evaporator

    SANARIUM B, S Operation 9.12. SANARIUM S - Decommissioning the evaporator Decommission the evaporator when it is not in use for prolonged periods of time. If the yellow or red LED (1) lights up: Carry out maintenance as described on page 60. Close the angle valve (2) for the water inlet.

  • Page 40: Custom Settings

    SANARIUM B, S Custom settings 10.1. Selecting the standard/custom program For Sauna, SANARIUM* and InfraPLUS** (optional) modes, there is a custom program (Pr 1) in which you can set personalised bathing parameters (temperature, humidity*, intensity** and bathing time). There are three standard programs for Sauna mode and four standard programs for SANARIUM* or InfraPLUS** mode (optional);...
  • Page 41 Custom settings 10.1. Selecting the standard/custom program Continued Program: Temperature Sauna SANARIUM Humidity Custom program Custom program Custom program 80 °C 50 °C approx. 35 g/m 90 °C 55 °C approx. 50 g/m 95 °C 60 °C approx. 70 g/m 70 °C approx.

  • Page 42: Setting The Temperature

    SANARIUM B, S Custom settings 10.2. Setting the temperature Changing the temperature Press the symbol (1) or (2). The temperature display (2) starts flashing. Set the desired temperature by pressing the +/- symbols (3). Apply the set temperature by pressing the OK symbol (4).

  • Page 43: Setting Infraplus (Optional)

    SANARIUM B, S Custom settings 10.4. Setting InfraPLUS (optional) Changing the intensity Press the symbol (1) or (2). The intensity bar scale (2) flashes. Set the desired intensity by pressing the +/- symbols (3). Apply the set intensity by pressing the OK symbol (4).

  • Page 44: Setting The Bathing Time

    SANARIUM B, S Custom settings 10.5. Setting the bathing time In InfraPLUS mode the bathing time can be set to between five and 30 minutes to the nearest minute. Changing the bathing time Press the symbol (1) or (2). The digits for the hour (2) start flashing. Set the desired bathing time (separately for hours and minutes) by pressing the +/- symbols (3).

  • Page 45: Music

    SANARIUM B, S Custom settings 10.7. Music Selecting and switching on music Press the symbol (1). The active track (2) is displayed. Tracks 1 - 6 can be selected. Track 0 switches the music off. Select the desired track by pressing the +/- symbols (3).

  • Page 46: Volume

    SANARIUM B, S Custom settings 10.8. Volume Adjusting the volume Press the symbol (1). Symbol (2) appears. Press the symbol (2). The bar scale (3) displays the set volume. Setting the bar scale to 0 switches the music off. Select the desired volume by pressing the +/- symbols (4).

  • Page 47: Setting A New Password For The Touchscreen Lock

    The default password is 1111. Requirement: The touchscreen lock must have been activated on service menu option 25 LOCK. See Servicing Instructions 18029, 18033, 18040. Setting a new password Press the symbol (1) twice, pausing for one second between presses.

  • Page 48: Switching The Touchscreen Lock On/Off

    Requirement: The touchscreen lock must have been activated on service menu option 25 LOCK. See Servicing Instructions 18029, 18033, 18040. Switching the touchscreen lock off Press the symbol (1). Enter the password one digit at a time by pressing the +/- symbol (2) and pressing the OK symbol (3) to confirm in each case.

  • Page 49: Special Features

    SANARIUM B, S Custom settings 10.11. Special features Switching special features on Press the relevant symbol (1). The special feature is switched on. The bar appears. Switching special features off Press the relevant symbol (1). The special feature is switched off. The bar goes out.

  • Page 50: Climate Manager (Optional)

    10.13. Vent flap for airing and ventilating the cabin (optional) Correct airing and ventilation ensure an optimum climate. The Klafs vent wall with adjustable vent flap (optional) allows you to regulate the air flow and volume. Ventilation: Heating mode...

  • Page 51: If Something Does Not Work

    Repairs and maintenance must only be carried out by Klafs service engineers or by technicians expressly authorised by Klafs. Klafs can only provide repairs and servicing work under warranty if this work is carried out by Klafs service engineers. Error messages The Service symbol (1) appears together with the error message number (2) (e.g.
  • Page 52 Switch the controller off at the mains. The safety temperature limiter (STL) is Do not use the sauna cabin. interrupted. Contact Klafs service engineers. Short circuit in the actual temperature sensor. Short circuit in the heater temperature sensor. PAGE 52...

  • Page 53: Other Possible Errors

    Check the FI switch and the fuse in the working. power supply. No power at Fuse SI104 has blown. Replace fuse SI104 (1.0 AT) or inform Klafs output AG1. service engineers. The fan is defective. Replace the fan. Disconnect the controller from the mains.
  • Page 54 See page 36/37. Evaporator fault. See page 60. The fuse in the cable has tripped. The inlet pump is faulty. Contact Klafs service engineers. Yellow or red LED The evaporator must be Service the evaporator. on the evaporator serviced. See page 60.
  • Page 55 SANARIUM B, S If something does not work 11.2. Other possible errors Continued Fault Cause Remedy The controller The controller is controlled by Turn off TOUCHCONTROL. cannot be started TOUCHCONTROL. After approx. 5 minutes, or operated. TOUCHCONTROL activates the The operating panel is controller.
  • Page 56 Check and secure the electrical connection. between the reading light and IMES-1 is interrupted. Remote power-on The controller will not switch On service menu item 20 KEY, change the symbol. setting to [2] Remote. See Servicing Instructions 18029, 18033, 18040. PAGE 56 50701206/02.18...

  • Page 57: Resetting The Error Message

    SANARIUM B, S If something does not work 11.3. Resetting the error message Notice: Only allow work on electrical components/assemblies to be carried out by qualified electricians who work in accordance with electrical rules and regulations. Switch the controller off, disconnect it from the mains and make sure that it cannot be switched on again.

  • Page 58: Cleaning And Maintenance

    SANARIUM B, S Cleaning and maintenance 12.1. Cleaning the sauna cabin The high humidity in SANARIUM mode does not damage the wood of your cabin. A prerequisite is that the cabin is well ventilated after use and the drying phase is completed. Never use a hose or pressure washer on the inner cabin walls, benches or seats.

  • Page 59: Sanarium B - Decalcifying The Evaporator

    SANARIUM B, S Cleaning and maintenance 12.3. SANARIUM B - Decalcifying the evaporator SANARIUM B - Draining Place the filler can (1) under the drain. Open the drain valve (2). Close the drain valve (2) again after draining the evaporator. Drain the filler can (1).

  • Page 60: Sanarium S - Evaporator

    The operating performance The local water quality. If the steam cylinder is nearly worn, the yellow or red LED (1) flashes on the evaporator. See Servicing Instructions 18029, 18033, 18040. SANARIUM S - Drain pump, change the inlet valve See Servicing Instructions 18029, 18033, 18040.

  • Page 61: Evaporator - Change The Scent Container

    SANARIUM B, S Cleaning and maintenance 12.5. Evaporator - Change the scent container The scent container (1) is located on the control panel next to the evaporator. Shake the scent container well before replacing it. Remove the hose from the empty scent container.

  • Page 62: Notes

    SANARIUM B, S Notes PAGE 62 50701206/02.18...
  • Page 63 SANARIUM B, S Notes PAGE 63 50701206/02.18...

  • Page 64: Addresses

    KLAFS GmbH Sonnwiesenweg 19 A-6361 Hopfgarten/Tirol Tel. +43 5335 2330-0 We hope your ”Klafs SANARIUM B, S with 18033 controller” promotes your well-being and provides you with hours of fun, leaving you feeling relaxed and rejuvenated. Subject to technical modifications.
