Operating instructions

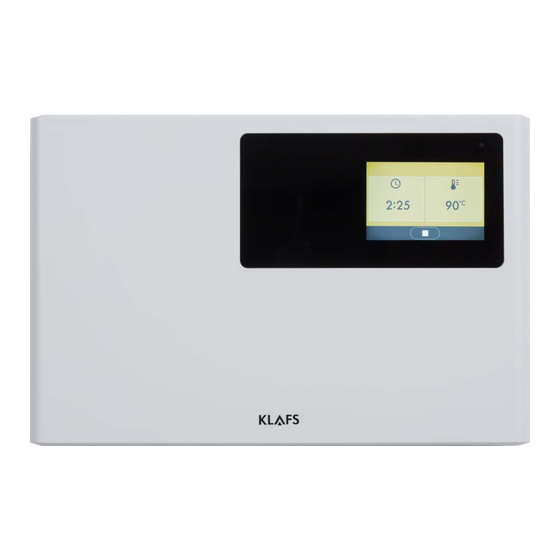

KLAFS SOFTCLIMA with controller model 21043,
21043 T
90 °C
60 °C
40 °C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOFTCLIMA 21043 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Klafs SOFTCLIMA 21043

Summary of Contents for Klafs SOFTCLIMA 21043

  • Page 1 Operating instructions KLAFS SOFTCLIMA with controller model 21043, 21043 T 90 °C 60 °C 40 °C...

  • Page 2: Table Of Contents

    CONTENTS Quick reference guide - SOFTCLIMA controller Bathing mode 2.1. SAUNA 2.2. SOFTCLIMA Technical data Intended use General safety precautions 90 °C Controller 6.1. Operating and display elements 6.2. Touchscreen 6.3. Touchscreen - Basic operation and display symbols 6.4. Touchscreen - Section 1: Title line 6.5.
  • Page 3 CONTENTS If something does not work 8.1. Error messages on the display 8.2. Other possible errors 8.3. Rectifying faults, resetting error messages Cleaning and maintenance 9.1. Cleaning the sauna cabin 9.2. Cleaning the touchscreen 90 °C 9.3. Fero S - Decalcifying the evaporator 60 °C 40 °C...

  • Page 4: Quick Reference Guide - Softclima Controller

    QUICK REFERENCE GUIDE - SOFTCLIMA CONTROLLER The KLAFS SOFTCLIMA controller enables you to operate your SOFTCLIMA quickly and easily. The bathing conditions can be changed within the allowed adjustment range before and during the bathing session. Only operate the touchscreen with your fingers.

  • Page 5: Bathing Mode

    BATHING MODE All bathing modes in your KLAFS sauna have been designed to improve your general health and well-being. However, you should still take into account any pre-existing health conditions when choosing your bathing program. This includes: Temperature Humidity 90 °C Bathing time.

  • Page 6: Technical Data

    VDE regulations. In the connecting feed line, use a residual-current v 0.03 A with a contact gap of at least 3 mm. circuit breaker I Please contact KLAFS customer service in case of a fault. 40 °C Only use original KLAFS spare parts.
  • Page 7 Never use undiluted essential oils. Only use the indicated concentration (approx. 20 - 30 drops of oil in one litre of water). Only use KLAFS essential oil extracts. Never store the bottle containing the essential oil inside the sauna cabin.

  • Page 8: Controller

    CONTROLLER 6.1. Operating and display elements 90 °C 60 °C Item Description Controller/Controller T main switch. The main switch switches off the mains power to the controller. Cabin light switch. When the controller is connected to the mains, the cabin light may be switched on independently of the main switch.

  • Page 9: Touchscreen

    6.2. Touchscreen Section Title line. Navigation, menu display. See page 11. Bathing mode, bathing parameters. 90 °C Display of the active bathing parameters. To set the bathing parameters, see page 11. Footer. Start and stop the bathing mode. Confirm entries. 60 °C See page 11.

  • Page 10: Touchscreen - Basic Operation And Display Symbols

    6.3. Touchscreen - Basic operation and display symbols Example Symbol: Display/function: The control panel must be switched on at the main switch. See page 13. Operate the control panel by pressing on the touchscreen with your finger. The touchscreen is divided into display sections and function symbols. Functions are activated by pressing the symbols displayed.

  • Page 11: Touchscreen - Section 1: Title Line

    6.4. Touchscreen - Section 1: Title line Operating symbol, display Return to the previous dialogue window. Symbol for the setting dialogue currently selected. 6.5. Touchscreen - Section 2: Bathing mode, bathing parameter Bathing programs, bathing parameters 90 °C SAUNA (3) See page 15.

  • Page 12: Touchscreen - Bathing Parameter Symbols

    6.7. Touchscreen - Bathing parameter symbols Symbol: Display/function: Setting the bathing time. See page 23. Setting the bathing temperature. See page 24. Setting the humidity. 90 °C See page 25. Setting the humidity intensity See page 25. 60 °C 40 °C Page 12 / 36...

  • Page 13: Basic Functions And Settings

    BASIC FUNCTIONS AND SETTINGS 7.1. Switching the power supply on/off at the main switch Switching the power supply on Press the touch key (1). The controller goes into standby mode and shows the bathing program symbols. 90 °C For standby, see page 14. Switching the power supply off Press the touch key (1).

  • Page 14: Standby Mode

    7.3. Standby mode The touchscreen displays the following symbols in standby mode: SAUNA bathing mode SOFTCLIMA bathing mode The backlighting switches off automatically 90 °C after five minutes of non-use. The controller can be operated via the touchscreen at any time whilst in standby mode.

  • Page 15: Bathing Mode Sauna

    7.4. Bathing mode SAUNA Risk of fire Before commissioning the controller, always check that there are no flammable objects near the sauna heater in the cabin. To enjoy a sauna, empty the evaporator water tank. See page 21 - Decommissioning the evaporator. Starting SAUNA bathing mode Press the SAUNA symbol (1).

  • Page 16: Bathing Mode Softclima

    7.5. Bathing mode SOFTCLIMA Risk of fire Before commissioning the controller, always check that there are no flammable objects near the sauna heater in the cabin. To enjoy a sauna, fill the evaporator water tank. See page 18, Fero S - Preparing the evaporator. Starting SOFTCLIMA bathing mode Press the SOFTCLIMA symbol (1).
  • Page 17 7.5. Bathing mode SOFTCLIMA Ending SOFTCLIMA bathing mode Press the symbol J (8). Subsequent drying starts. The sauna heater switches off after 30 minutes and subsequent drying ends. The controller then goes into standby mode. 90 °C Airing the cabin Ventilate the cabin after the SAUNA/SOFTCLIMA bathing mode has ended by opening the...

  • Page 18: Fero S - Preparing The Evaporator

    7.6. Fero S - Preparing the evaporator Filling the evaporator Fill the evaporator when it is cold. The maximum fill capacity is 9 litres. Topping up the evaporator Topping up the evaporator when it is hot: The temperature difference causes mechanical stress in the tank, which may become apparent due to a noise when topping up.
  • Page 19 7.6. Fero S - Preparing the evaporator Risk of fire Do not fill the aroma cup on the heater. Adding scent to the aroma cup Remove the aroma cup (1) from the steam outlet (3) with the aroma fork (2). 90 °C Pour diluted scent into the aroma cup.
  • Page 20 7.6. Fero S - Preparing the evaporator Risk of fire Do not place the herbal pillow (4) on the hot stones. Only use herbal pillows recommend by KLAFS. Adding the herbal pillow (optional) 90 °C Remove the herbal pillow holder (1) from the steam outlet (3) with the aroma fork (2).

  • Page 21: Fero S - Decommissioning The Evaporator

    7.7. Fero S - Decommissioning the evaporator Drain the water after every bathing session. Danger of scalding The residual water will be hot straight after a session has finished. Fero S - Draining the residual water 90 °C Place the filler can (1) under the drain (2).
  • Page 22 7.7. Fero S - Decommissioning the evaporator Danger of scalding Immediately after the bathing session, the aroma cup is still hot. Danger of scalding The herbal pillow holder will be hot straight after a session has finished. Emptying the aroma cup 90 °C Remove the aroma cup (1) from the steam outlet (3) with the aroma...

  • Page 23: Setting The Bathing Time

    7.8. Setting the bathing time Risk of fire Before commissioning the controller, always check that there are no flammable objects on or near the sauna heater. Changing the bathing time Set the bathing time (1) using the slider (2). Bathing time setting 90 °C HOUR:MINUTE.

  • Page 24: Setting The Temperature

    7.9. Setting the temperature Changing the temperature Set the temperature (1) using the slider (2). SAUNA: Temperature 10 °C-100 °C. SOFTCLIMA: Temperature 40 °C-60 °C. 90 °C Austria temperature 52 °C-60 °C. The temperature can also be adjusted using the +/- keys (3 and 4).

  • Page 25: Setting The Softclima Humidity

    7.10. Setting the SOFTCLIMA humidity The humidity can be adjusted only in SOFTCLIMA bathing mode. Changing the humidity Set the humidity (1) using the slider (2). SOFTCLIMA humidity 0-10 bars. 90 °C The humidity can also be adjusted using the +/- keys (3 and 4). Slider at the far right = maximum humidity;...

  • Page 26: Vent Flap For Airing And Ventilating The Cabin (Optional)

    Vent flap for airing and ventilating the cabin (optional) Correct airing and ventilation ensure an optimum climate. The KLAFS vent wall with adjustable vent flap (optional) allows you to regulate the air flow rate. Ventilation: Heating mode Vent flap, level 1 There is only a low air flow at this setting.

  • Page 27: If Something Does Not Work

    Repairs and maintenance must only be carried out by KLAFS service engineers or by technicians expressly authorised by KLAFS. customerservice@klafs.de. KLAFS can only provide repairs and servicing work under warranty if this work is carried out by KLAFS service engineers.

  • Page 28: Other Possible Errors

    Replace light fuse F3 (1.6 AT) or contact KLAFS service engineers. 60 °C Light fuse F3 has blown. customerservice@klafs.de Replace fuse AG F1 (1.6 AT) or contact KLAFS service engineers. Fuse AG F1 has blown. customerservice@klafs.de No power at output AG.

  • Page 29: Rectifying Faults, Resetting Error Messages

    8.3. Rectifying faults, resetting error messages Notice: Only allow work on electrical components/assemblies to be carried out by qualified electricians who work in accordance with electrical rules and regulations. Switch the controller off, disconnect it from the mains and make sure that it cannot be switched on again.

  • Page 30: Cleaning And Maintenance

    CLEANING AND MAINTENANCE 9.1. Cleaning the sauna cabin The high humidity in SOFTCLIMA bathing mode does not damage your cabin's wood. A prerequisite is that the cabin is well ventilated after use and the drying phase is completed. Never use a hose or pressure washer on the inner cabin walls, benches or seats. 90 °C Dirty loungers Wipe the wooden surfaces with a damp cloth.

  • Page 31: Fero S - Decalcifying The Evaporator

    9.3. Fero S - Decalcifying the evaporator Risk of chemical burns! There is a risk of chemical burns to eyes and skin when handling decalcifiers. Always follow the instructions on the package insert. Fero S - Preparing the decalcifying liquid To decalcify the evaporator, prepare 3 litres of water with decalcifier in a bucket.
  • Page 32 9.3. Fero S - Decalcifying the evaporator Fero S - Rinsing Close the drain valve (4). Fill the evaporator's filling unit (2) with fresh water. Place the filler can (3) under the drain. Open the drain valve (4). Close the drain valve (4) again 90 °C after draining the evaporator.
  • Page 33 NOTES 90 °C 60 °C 40 °C Page 33 / 36...
  • Page 34 NOTES 90 °C 60 °C 40 °C Page 34 / 36...
  • Page 35 NOTES 90 °C 60 °C 40 °C Page 35 / 36...
  • Page 36 ÖSTERREICH | SONNWIESENWEG 19 | A-6361 HOPFGARTEN/TIROL TELEFON +43 (0)5335 23 30-0 | FAX +43 (0)5335 23 30-36 | INFO@KLAFS.AT | WWW.KLAFS.AT SCHWEIZ | OBERNEUHOFSTRASSE 11 | CH-6340 BAAR TELEFON +41 (0)41 760 22 42 | FAX +41 (0)41 760 25 35 | BAAR@KLAFS.CH | WWW.KLAFS.CH...
