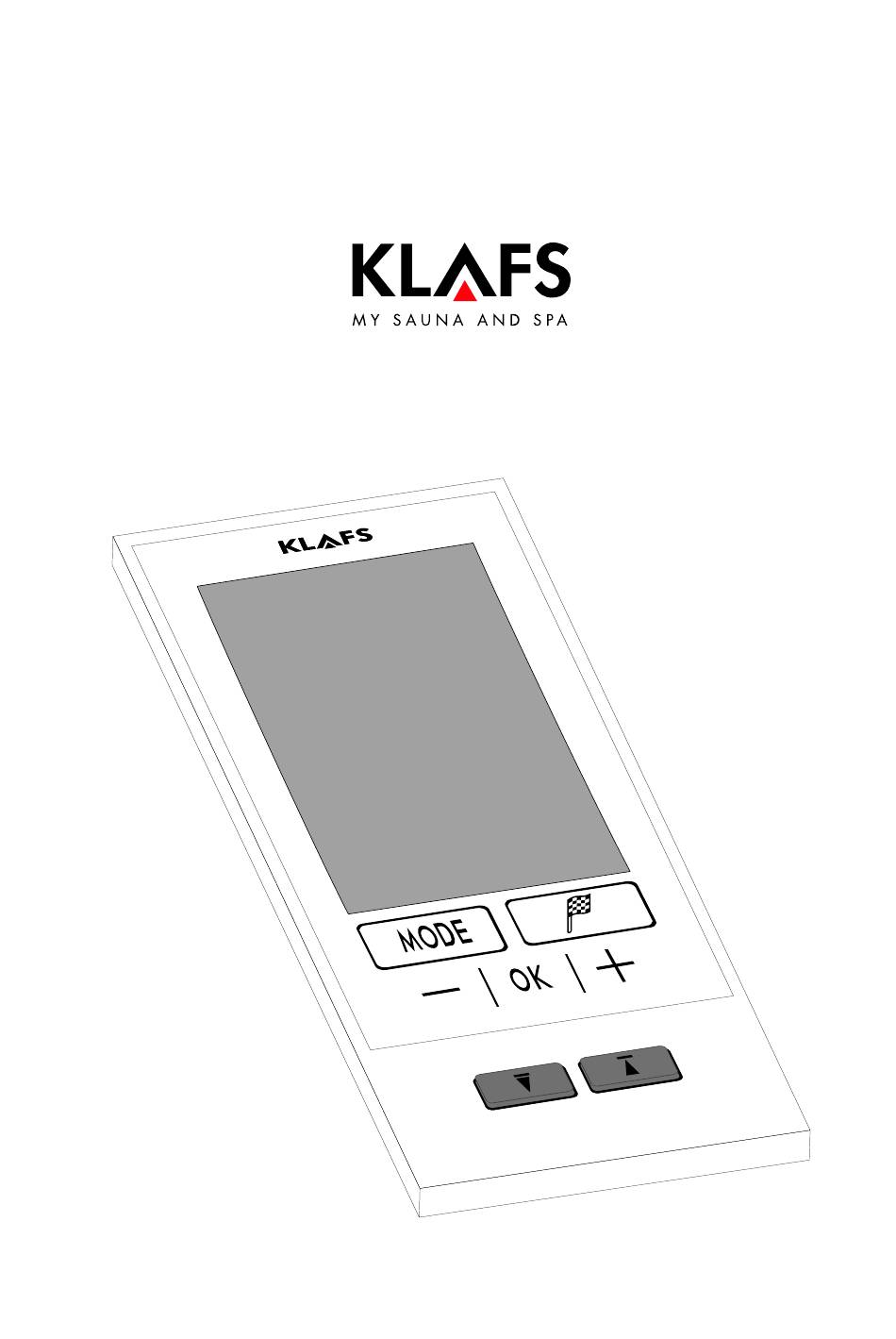

Operating instructions
ML 028 controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ML 028 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Klafs ML 028

Summary of Contents for Klafs ML 028

  • Page 1 Operating instructions ML 028 controller...

  • Page 2: Table Of Contents

    Page Quick reference guide - ML 028 controller ....Bathing modes ..........

  • Page 3: Quick Reference Guide - Ml 028 Controller

    ML 028 controller Quick reference guide - ML 028 controller The Klafs ML 028 controller enables you to operate your S1 sauna quickly and easily. There are three preset standard programs for each bathing mode (Sauna). Any changes made to the standard program settings are saved in a custom program. There is a custom program for each bathing mode.

  • Page 4: Bathing Modes

    ML 028 controller Bathing modes All bathing modes in your Klafs S1 sauna have been designed to improve your general health and well-being. However, you should still take into account any pre-existing health conditions when choosing your bathing program. This includes: Temperature Bathing time.

  • Page 5: General Safety Precautions

    Technologies) regulations. In the connecting feed line, use an I breaker with a contact opening of at least 3 mm. Contact Klafs customer service if faults cannot be rectified by a qualified electrician. Remote operation (remote switch-on): Setting, controlling and/or adjusting the controller using a command or a remote control unit that is outside the range of vision of the sauna heater or is implemented via preset time mode.

  • Page 6: Controller

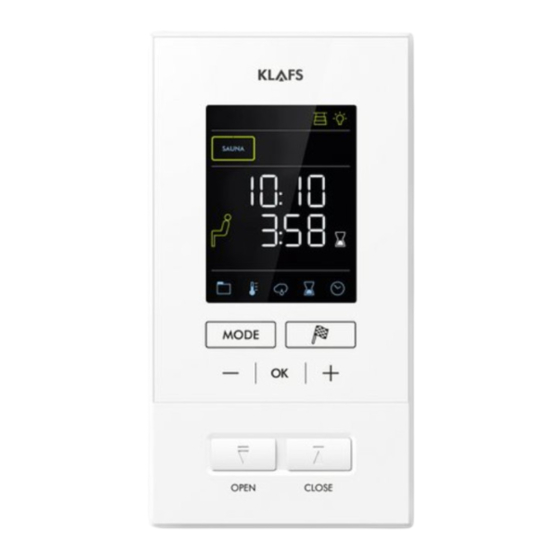

    ML 028 controller Controller 6.1. Operating and display elements Item Element Description Controller main switch. The main switch switches off the mains power to the controller. The internal clock has a power reserve for a few months in the event of a power failure.

  • Page 7: Screen

    ML 028 controller Controller 6.2. Screen Section Description Status bar. See page 9. Bathing modes. See page 10. Digital display of temperature, digital display of time (during a bathing session). See page 10. Ready-to-use symbol, digital display of time (in standby mode), digital display of preset time mode, digital display of bathing time.

  • Page 8: Screen - Basic Operation And Display Information

    ML 028 controller Controller 6.3. Screen - Basic operation and display information The control panel must be switched on at the main switch. See page 14. Operate the controller via the touch keys. Entering and changing settings will be quicker if a short pause of around one second is left between presses.

  • Page 9: Screen - Section 1: Status Bar

    ML 028 controller Controller 6.4. Screen - Section 1: Status bar The status bar acts as a display. The symbol display depends on the configuration. Symbol Display/function The controller is in Service mode. The symbol appears when one of the drive touch keys is pressed during a bathing session or when there is still residual heat in the cabin after a bathing session.

  • Page 10: Screen - Section 2: Bathing Modes

    ML 028 controller Controller 6.5. Screen - Section 2: Bathing modes Symbol Display/function Sauna mode. To start the SAUNA bathing mode, see page 19. END. To end a bathing session, see page 20. 6.6. Screen - Section 3: Digital display of temperature, digital...

  • Page 11: Screen - Section 5: Programs, Temperature, Bathing Time, Time

    ML 028 controller Controller 6.8. Screen - Section 5: Programs, temperature, bathing time, time Symbol Display/function Selecting the standard/custom program. See page 24. Setting the temperature. See page 25. Setting the bathing time. See page 26. Setting the time. See page 16.

  • Page 12: Controller Touch Keys

    ML 028 controller Controller 6.9. Controller touch keys Symbol Display/function MODE touch key: Calls up bathing program. Starts bathing program. Ends bathing program. FLAG touch key: Calls up preset time mode. Minus touch key. Selects the previous symbol. Reduces parameter setting.

  • Page 13: Cabin Touch Keys

    ML 028 controller Controller 6.10. Cabin touch keys Symbol Display/function Extending the cabin Requirement: Option: Lay floor protectors. Floor protectors are required for the cabin if it is installed on flooring such as carpet. Before extending the cabin, ensure that no persons or objects are in the path of the cabin.

  • Page 14: Basic Functions And Settings

    ML 028 controller Basic functions and settings 7.1. Switching the power supply on/off at the main switch Switching the power supply on Press the touch key (1). The controller goes into standby mode. When the controller is switched on, the following symbols appear: Time and Set the time.

  • Page 15: Switching The Cabin Light On/Off

    ML 028 controller Basic functions and settings 7.2. Switching the cabin light on/off Press the touch key (1). The cabin light is switched on or off. The symbol (2) appears on the screen when the cabin light is switched on.

  • Page 16: Setting The Time

    ML 028 controller Basic functions and settings 7.3. Setting the time Press the +/- touch keys (1) repeatedly until the backlit ring appears around the clock symbol (2). Confirm your selection by pressing the OK touch key (3). The digits for the hour (4) start flashing.

  • Page 17: Standby Mode

    ML 028 controller Basic functions and settings 7.4. Standby mode The screen displays the following symbols in standby mode: Time (1) Setting the time (2) Cabin status (3) Cabin light (4) The backlighting switches off automatically after five minutes of non-use.

  • Page 18: Operation

    ML 028 controller Operation 8.1. Extending the cabin Lay floor protectors (optional) Floor protectors are required if the cabin is installed on flooring such as carpet. If floor protectors are not required, proceed to ”Extend the cabin”. Lay the floor protector (1) flush with the floor protector underneath the cabin (2).

  • Page 19: Starting Sauna Mode

    ML 028 controller Operation 8.2. Starting Sauna mode Risk of fire! Remove all flammable objects near the sauna heater before commissioning the controller. Prerequisite: The cabin must be fully extended. The cabin status symbol (1) appears. To extend the cabin, see page 13.

  • Page 20: Ending The Bathing Session

    ML 028 controller Operation 8.3. Ending the bathing session Press the MODE touch key (1) until the text END (2) appears. The bathing session is automatically ended after three seconds. The sauna heater switches off. The controller then goes into standby mode.

  • Page 21: Folding Down The Foldaway Lounger

    ML 028 controller Operation 8.4. Folding down the foldaway lounger Risk of injury! Do not use the foldaway lounger until the supports (1) have been swung out and the foldaway lounger is firmly secured. Extend the cabin before folding down the foldaway lounger.

  • Page 22: Folding Up The Foldaway Lounger

    ML 028 controller Operation 8.5. Folding up the foldaway lounger Risk of crushing! Only handle and fold up the foldaway lounger using the hand strap (1). Grasp the foldaway lounger (1) by the hand strap, pull it up and fold it over onto the lounger.

  • Page 23: Retracting The Cabin

    ML 028 controller Operation 8.6. Retracting the cabin Retract the cabin Conditions for retracting the cabin: No bathing session may be started. The cabin must be cooled after a bathing session. Remove any objects on the sauna heater (1) or the multifunctional duct (2) inside the cabin.

  • Page 24: Custom Settings

    ML 028 controller Custom settings 9.1. Selecting the standard/custom program For each bathing mode, there is a custom program (Pr 1) available in each case for personalised settings and three standard programs with pre-defined bathing parameter settings (temperature and bathing time).

  • Page 25: Setting The Temperature

    ML 028 controller Custom settings 9.2. Setting the temperature Select the TEMPERATURE symbol (1) by pressing the +/- touch keys (2). Confirm your selection by pressing the OK touch key (3). The temperature display (4) starts flashing. Set the desired temperature by pressing the +/- touch keys (3).

  • Page 26: Setting The Bathing Time

    ML 028 controller Custom settings 9.3. Setting the bathing time Select the BATHING TIME symbol (1) by pressing the +/- touch keys (2). Confirm your selection by pressing the OK touch key (3). The bathing time display (4) starts flashing.

  • Page 27: Setting Preset Time Mode

    ML 028 controller Custom settings 9.4. Setting preset time mode Risk of fire! Remove all flammable objects near the sauna heater before commissioning the controller. Press the FLAG touch key (1). The program data for preset time mode appears: Start time (2) and Cabin temperature (3).
  • Page 28 ML 028 controller Custom settings 9.4. Setting preset time mode Continued Press the FLAG touch key (1) again. The digits for the hour (2) start flashing. Set the hour by pressing the +/- touch keys (3). Confirm the setting by pressing the OK symbol (4).

  • Page 29: Setting A New Password For The Controller Lock

    ML 028 controller Custom settings 9.5. Setting a new password for the controller lock The default password is 0000. Prerequisite: The controller lock must be switched on in the service menu (option 25 - LOCK). See servicing instructions 50001197/50001198. Press the +/- touch keys (1) at the same time.
  • Page 30 ML 028 controller Custom settings 9.5. Setting a new password for the controller lock Continued Enter and confirm the new password again (2222 in this example). If the password is entered incorrectly, the message ERR appears. PAGE 30 50001173/11.16...

  • Page 31: Switching The Controller Lock On/Off

    ML 028 controller Custom settings 9.6. Switching the controller lock on/off If the lock is switched on (padlock symbol (3) appears), the controller cannot be operated via the touch keys. Prerequisite: The controller lock must be switched on in the service menu (option 25 - LOCK).

  • Page 32: If Something Does Not Work

    Repairs and maintenance must only be carried out by Klafs service engineers or by technicians expressly authorised by Klafs. Klafs can only provide repairs and servicing work under warranty if this work is carried out by Klafs service engineers. Error messages The Service symbol (1) appears together with the error message number (2) (e.g.
  • Page 33 ML 028 controller 10. If something does not work 10.1. Error messages on the screen Continued No. Fault How to rectify the fault The cabin drive was switched off due to Remove obstacles in the cabin's range of motor overload.

  • Page 34: Other Possible Errors

    Fuse SI100 or SI101 has Replace fuse SI100 (1.0 AT) or blown. SI101 (0.8 AT), or inform Klafs service engineers. The cabin light The bulb is defective. Change the bulb. does not light up...

  • Page 35: Resetting The Error Message

    ML 028 controller If something does not work 10.3. Resetting the error message Notice! Only allow work on electrical components/assemblies to be carried out by qualified electricians who work in accordance with electrical rules and regulations. Switch the controller off, disconnect it from the mains and make sure that it cannot be switched on again.

  • Page 36: Cleaning And Maintenance

    ML 028 controller Cleaning and maintenance 11.1. Cleaning the sauna cabin Never use a hose or pressure washer on the inner cabin walls, benches or seats. Wipe the surfaces with a damp cloth. The humidity generated during operation will not damage the wood of your cabin.

  • Page 37: Varius Sauna Heater - Cleaning The Outer Panelling

    ML 028 controller Cleaning and maintenance 11.3. Varius sauna heater - Cleaning the outer panelling Brush the outer panelling with a clothes brush or lint brush. Work with the clothes brush or lint brush in one direction only. Vacuum the outer panelling with a vacuum cleaner with a brush attachment.

  • Page 38: Notes

    ML 028 controller Notes PAGE 38 50001173/11.16...
  • Page 39 ML 028 controller Notes PAGE 39 50001173/11.16...

  • Page 40: Addresses

    KLAFS GmbH Sonnwiesenweg 19 A-6361 Hopfgarten/Tirol Tel. +43 5335 2330-0 We hope your ”ML 028 controller” promotes your well-being and provides you with hours of fun, leaving you feeling relaxed and rejuvenated. Subject to technical modifications. Reproduction in whole or in part is prohibited without the written permission of KLAFS GmbH &...
