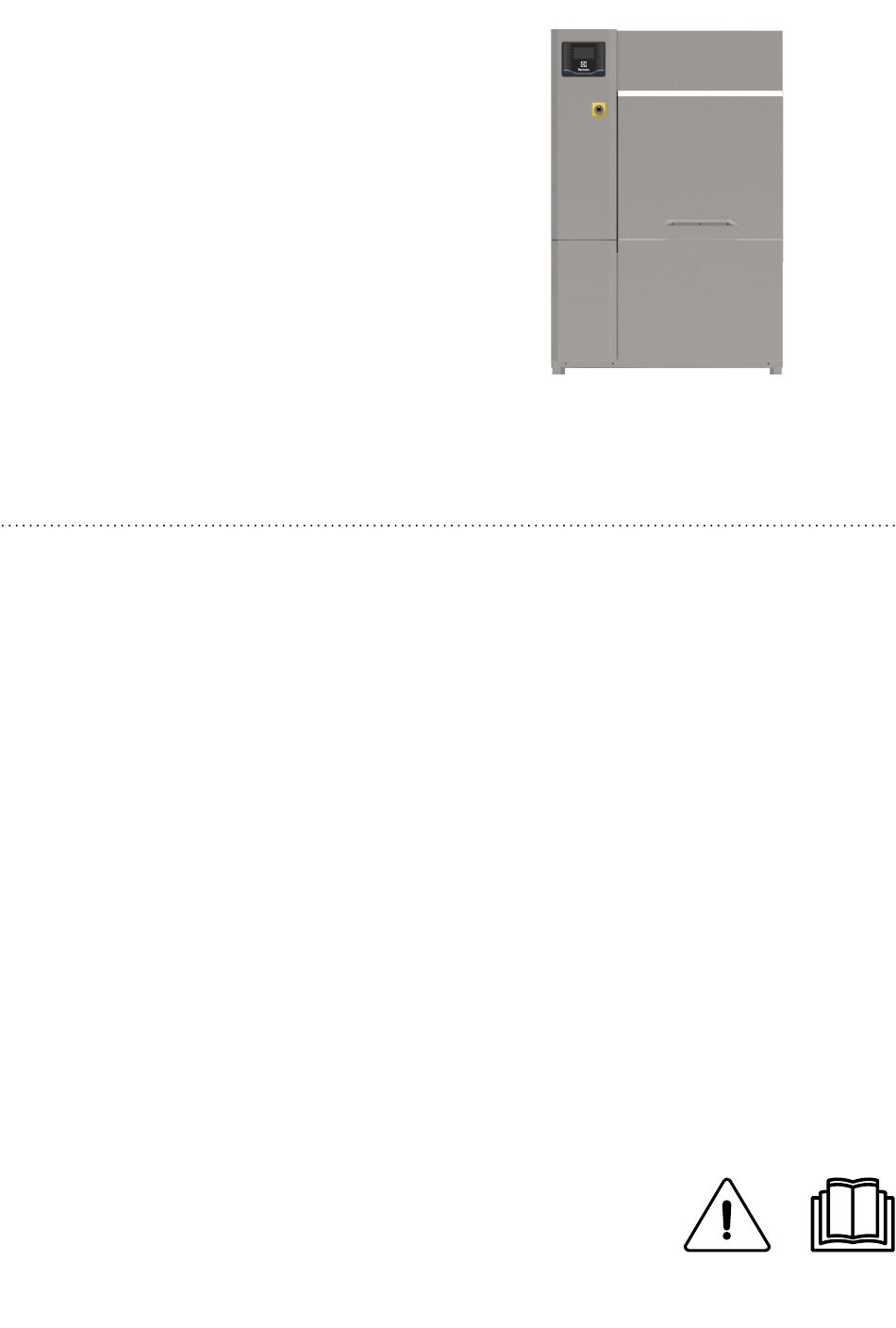

- Page 1 Rack type dishwasher Single-Rinse User manual * 59566QM02- 2020.04 *Original instructions...
- Page 2 Foreword The installation, use and maintenance manual (hereinafter Manual) provides the user with information necessary for correct and safe use of the machine (or “appliance“). The following must not be considered a long and exacting list of warnings, but rather a set of instructions suitable for improving machine performance in every respect and, above all, preventing injury to persons and animals and damage to property due to im- proper operating procedures.
-
Page 3: Table Of Contents
Contents A SAFETY INFORMATION ......................... 5 General information ........................5 General safety ..........................5 Personal protection equipment ......................6 Water connection.......................... 6 Electrical connection ........................6 Machine cleaning and maintenance....................7 Machine disposal.......................... 7 B WARRANTY ............................7 Warranty terms and exclusions ......................7 C GENERAL SAFETY RULES........................ - Page 4 L MAINTENANCE ..........................21 Maintenance intervals........................21 L.1.1 Preventive Maintenance ..................... 21 Maintenance frequency........................ 21 Precautions in case of long idle periods ................... 21 Machine disposal........................21 M TROUBLESHOOTING .......................... 22 Common faults........................... 22 General troubleshooting....................... 22 N ALARMS AND WARNINGS........................24 Introduction ..........................
-
Page 5: Asafety Information
SAFETY INFORMATION General information To ensure safe use of the machine and a proper understanding of the manual it is necessary to be familiar with the terms and typographical conventions used in the documentation. The following symbols are used in the manual to indicate and identify the various types of hazards: WARNING Danger for the health and safety of operators. -
Page 6: Personal Protection Equipment
Personal protection equipment Summary table of the Personal Protection Equipment (PPE) to be used during the various stages of the machine's service life. Stage Protective Safety Gloves Glasses Safety garments footwear helmet — ● ○ — ○ Transport ● ● ○... -
Page 7: Machine Cleaning And Maintenance
Save these instructions carefully for further consultation by the various operators. WARRANTY Warranty terms and exclusions accordance with Electrolux Professional user and mainte- nance documentation made available in paper or electronic If the purchase of this product includes warranty coverage, format. -
Page 8: Cgeneral Safety Rules
– improper or poor: installation, repair, maintenance (including tampering, modifications and repairs carried Check on Electrolux Professional website the list of authorized out by third parties not authorized) and modification of customer care. safety systems;... -
Page 9: Safety Signs To Be Placed On The Machine Or Near Its Area
Safety signs to be placed on the • keeping combustible or flammable materials, or in any case materials not compatible with or pertinent to the work, near machine or near its area the machine; Prohibition Meaning • wrong machine installation; do not oil, lubricate, repair and adjust •... -
Page 10: Dgeneral Information
Electrolux Professional spa - Viale Treviso, 15 - 33170 Pordenone (Italy) the operations to be carried out on the machine and recognise and prevent any The data plate gives the product identification and technical risks. -
Page 11: Additional Indications
IPX5 • non-compliance with the instructions contained in this Electrolux Professional spa - Viale Treviso, 15 - 33170 Pordenone (Italy) manual; • repairs not carried out in a workmanlike fashion, and replacements with parts different from those specified in... -
Page 12: Characteristics Of Personnel Trained For Normal Machine Use
Characteristics of personnel trained for • adequate general basic education and technical knowledge for reading and understanding the contents of the manual, normal machine use including correct interpretation of the drawings, signs and The Customer must make sure the personnel for normal pictograms;... -
Page 13: View Of Module Composition
View of module composition G.4.1 Wash zone Water with the addition of detergent is sprayed on the dishes 100 racks/hour through an upper and lower wash arm system. The purpose of this function is to remove all residuals of food from the dishes. -
Page 14: Istart Up
Pop Up menu Pop Up menu (cont'd.) “Alarm“ menu “Shutdown“ menu “Service“ menu, protected by a password. “Information“ menu START UP Positioning and fitting of the tank 1. wash arms; components Before starting the machine, check the fitting of: 1. tank filter “1“ and overflow “2“; 2. -
Page 15: Starting
82°C NOTE! To obtain excellence washing performance, use detergent, rinse aid and descaling agent sug- gested by Electrolux Professional. In the Electrolux Professional web site, open the “Accessories and Consumables“ web page and navigate into the dishwashing equipment tab to order most suitable detergents and accessories. - Page 16 IMPORTANT • To keep the best performance of the washing cycle, do not All the dishes must be arranged in the special racks wash alternately racks with dishes, pans and trays. in order to be washed. Do not place dishes directly on the rack conveyor system.
-
Page 17: Daily Activation
Daily activation • To start the washing cycle, touch the wash speed icon. The same icon changes in pause icon . Touch it again to IMPORTANT pause the washing cycle. Refer to the chapter “I Start up“ before using the dishwasher. -
Page 18: Door Open
Door open Drain wash tank • When the door is open, the screen shows you to close the • If you set the parameter of this option, the display shows door. you to clean the wash tank. The screen show you where the error occurs. Remove the overflow and drain the tanks. -
Page 19: Kdaily Cleaning
Shutdown The icon appears in grey Selected Not selected option NOTE! If for any reason the shutdown fails, you can Power Off deactivate the machine by turning the switch The icon appears in blue disconnector to “O“. DAILY CLEANING WARNING 2. -
Page 20: Manual Drain
• Wash arms • Rinse arms Clean the inside of door with a damp cloth and neutral detergent. Clean inside the machine. Make sure to remove any residuals of detergent or food. At the end of cleaning operations, refit all the items previously removed. - Page 21 MAINTENANCE Maintenance intervals Maintenance, inspections, Fre- Respon- checks and cleaning quency sability The inspection and maintenance intervals depend on the actual machine operating conditions and ambient conditions Yearly Service Safety signs (presence of dust, damp, etc.), therefore precise time intervals •...
- Page 22 TROUBLESHOOTING Common faults Closed water inlet taps (cold - hot) • If the inlet water taps are closed, you must open them. The Overflow missing display shows you where the error occurs and how to fix it. • If the machine does not stop to fill the water into the tanks, When the water inlet tap is opened, touch the confirm icon check if the overflow is correctly installed or missing.
- Page 23 Anomaly Type of Possible causes Actions anomaly Glasses and dishes are not Loss of The container of rinse aid is empty. Check that there is rinse-aid in the dried properly. performance. container and if necessary top it up. Rinse aid pump does not work. Call detergent and rinse aid service centre.
- Page 24 Anomaly Type of Possible causes Actions anomaly The display shows to close Blocking The magnetic switch door does Call service centre. the door. not work. Once closed the door, the dis- play shows the same anomaly. The display shows to remove Blocking The end limit switch does not work.
- Page 25 Wash Code: E114: Tank filling valve is Description: not able to fill the wash tank STOP CONTINUE Date and Time: The operator can decide to stop immediately the machine or code of the alarm continue even if a warning occurs. Short description of the alarm Date and time of the alarm The operator touches “stop“...
- Page 28 Electrolux Professional SPA Viale Treviso 15 33170 Pordenone www.professional.electrolux.com...
