Electrolux Dishwashing

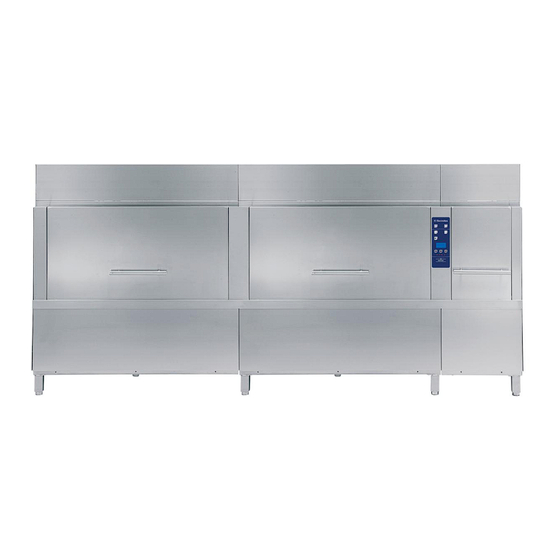

Rack Type WTM300
The Electrolux Dishwashing range is produced for customers with the highest conceivable demands for good
efficiency, economy and ergonomics for dishwashing operation. The product range comprises glasswashers,
undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot
and pan washers. The rack type dishwasher range is designed to be easily connected with the equipment
included in the Electrolux Handling System range, to create a functional and ergonomic dishwashing area. The
rack type dishwasher WTM300 has a capacity up to 300 racks per hour with 2 speeds (variable on-site). The
range consists of 6 electrically or steam heated models, available with or without Energy Saving Device (ESD).
EASY TO INSTALL
• Solid 3mm square stainless steel
sub-frame with bolt-together
construction that can be delivered
assembled or in modules to be
connected on site.
• Stainless steel wash pumps
ideal for heavy duty usage
installations.
• Brass inlet valves as standard for
extra reliability at high incoming
water temperatures.
• All rear positioned water tubes in
stainless steel.
• Only one cable for electrical
connection.
• Electrical and water connections
centralised in one area.
• Service from the front and from
the side.
• Pre-arrangements for automatic
detergent dispenser, energy
management device and HACCP
implementation (both basic as well
as integrated system).
FUNCTIONAL ZONES
• Separate 150 litre pre-wash tank
with 2,2kW wash pump supplying
upper was arms, 1,1kW wash
pump supplying lower was arms.
Maximum water contact wash
arms for best possible
pre-washing where first soil
scrapping is performed. Pre-wash
is separate from wash zone with
less than 35°C water without
detergent for maximum dirt
removal and incorporates
automatic partial drain.
• Power wash zone with 150 litre
wash tank with 2,2kW wash pump
supplying upper was arms, 1,1kW
wash pump supplying lower was
arms. Maximum water contact
wash arms for best possible
washing result.
• Separate wash and rinse zones
so detergent does not mix with the
rinse aid and is always active.
• Rinse area equipped with the
DUO-rinse system where the first
ramp is filled by the re-used final
rinse water, to eliminate any trace
of detergent, and the second ramp
is filled by hot fresh water to
guarantee sanitation of the items.
534119

Advertisement

loading

  Related Manuals for Electrolux 534116

  Summary of Contents for Electrolux 534116

  • Page 1 The rack type dishwasher range is designed to be easily connected with the equipment included in the Electrolux Handling System range, to create a functional and ergonomic dishwashing area. The rack type dishwasher WTM300 has a capacity up to 300 racks per hour with 2 speeds (variable on-site). The range consists of 6 electrically or steam heated models, available with or without Energy Saving Device (ESD).
  • Page 2 - liters/hr Steam supply relative dynamic pressure bar - min/max Steam consumption peak - Kg/h Total installed power - kW Electrolux Dishwashing Rack Type WTM300 • All models finished in top quality materials with double skinned construction to aid durability and reduce noise.
  • Page 3 KIT 9 BASKETS FOR 1-TANK RACK TYPE DW KIT SANITIZ(2 HEAT.EL)-MOD.RT 250/300R/H KIT SILASTIC CURTAINS FOR RACK TYPE DW SPLASH HOOD-MODULAR RACK T.-LOADING SIDE STEAM DRYING TUNNEL-MODULAR RT-L>R-900 STEAM DRYING TUNNEL-MODULAR RT-R>L-900 Electrolux Dishwashing Rack Type WTM300 WTM300ERA WTM300ELA WTM300ERB 534116...
  • Page 4 534116, 534118 LEGEND CWI - Cold water inlet D - Water drain EI - Electrical connection EQ - Equipotential screw HWI - Hot water inlet V - Condensation outlet XP - Connection for detergent dispenser XP - Connection for detergent probe...
  • Page 5 EI - Electrical connection EQ - Equipotential screw HWI - Hot water inlet V - Condensation outlet XP - Connection for detergent dispenser XP - Connection for detergent probe Electrolux Dishwashing Rack Type WTM300 Internet: http://www.electrolux.com/foodservice WTM300ELA WTM300ELB 534117 534119 G 3/4"...
  • Page 6 HWI - Hot water inlet SI - Steam inlet SO - Steam condenser V - Condensation outlet XP - Connection for detergent dispenser XP - Connection for detergent probe Electrolux Dishwashing Rack Type WTM300 Internet: http://www.electrolux.com/foodservice WTM300SRA 534134 G 3/4"...
  • Page 7 HWI - Hot water inlet SI - Steam inlet SO - Steam condenser V - Condensation outlet XP - Connection for detergent dispenser XP - Connection for detergent probe Electrolux Dishwashing Rack Type WTM300 Internet: http://www.electrolux.com/foodservice WTM300SLA 534135 G 3/4"...
