Hioki 9695-02 Manual

9695-02, 9695-03
Warranty
Warranty malfunctions occurring under conditions of normal use in conformity with the Instruction
Manual and Product Precautionary Markings will be repaired free of charge. This warranty is valid for
a period of one (1) year from the date of purchase. Please contact the distributor from which you
purchased the product for further information on warranty provisions.
Introduction
Thank you for purchasing the HIOKI 9695-02/03 CLAMP ON SEN-SOR. To obtain maximum
performance from the product, please read this manual first, and keep it handy for future
reference.
Overview

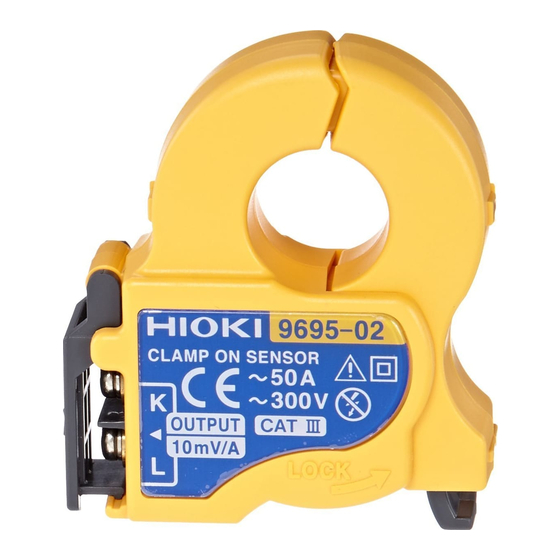

The 9695-02/03 are voltage-output, clamp-on sensors used for 50 A (9695-02) and 100 A
(9695-03) rated AC measurement.
The 9695-02/03 sensors are designed to measure alternating currents on a hot conductor
without disconnecting it from the power line. Both sensors are easy to operate and suitable
for electric current and power measurement in various fields.
Initial Inspection
When you receive the product, inspect it carefully to ensure that no damage occurred during
shipping. If damage is evident, or if it fails to operate according to the specifications, contact
your dealer or representative.
Maintenance and Service
• To clean the product, wipe it gently with a soft cloth moistened with water or mild detergent. Never
use solvents such as benzene, alco-hol, acetone, ether, ketones, thinners or gasoline, as they
can deform and discolor the case.
• If the product seems to be malfunctioning, contact your dealer or representative. Pack the
product carefully so that it will not be damaged during shipment, and include a detailed written
description of the problem. Hioki cannot be responsible for damage that occurs during shipment.
CLAMP ON SENSOR
Instruction Manual
July 2015 Revised edition 8 Printed in Japan
9695B980-08 15-07H
