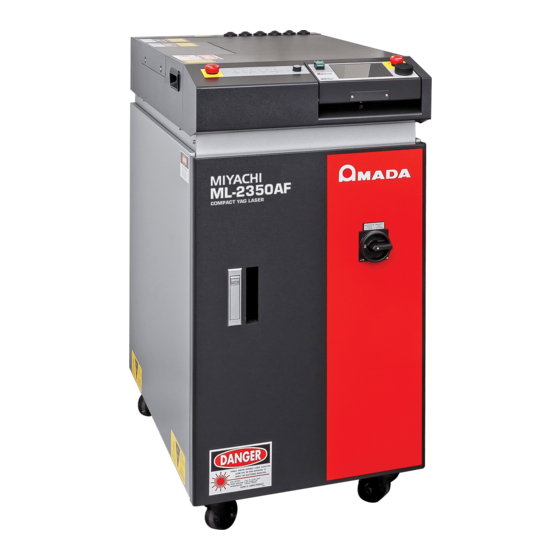

- Page 1 YAG LASER WELDER -CDRH 2350AF 2351AF OPERATION MANUAL Z01M0626E-15...
- Page 2 ML-2350AF/2351AF Thank you for purchasing our YAG Laser Welder ML-2350AF/2351AF. ML-2350AF-CDRH and ML-2351AF-CDRH are the air-cooled versions of the standard ML-2350A-CDRH and ML-2351A-CDRH, respectively. This operation manual describes only the difference of the air-cooled versions from the standard ones. See the operation manual of the standard version for how to use, such as operation method.
-
Page 3: Difference From The Standard Specifications
ML-2350AF/2351AF 1. Difference from the Standard Specifications The ML-2350AF/2351AF eliminates city water to improve the factory environment. The laser power supply, oscillator head and cooler are accommodated in one body. Transportation and installation are easy because the piping for city water is not necessary. - Page 4 ML-2350AF/2351AF Up to 32 schedules can be set by combining ・Laser output waveform ・Laser energy for upper/lower limit judgment Schedule setting ・Number of outputs per second Laser ・Number of repeated outputs Controller Laser energy (J) are measured and displayed. MLE-118A Measurement function Average power (W) Displays total number of outputs (9 digits)
- Page 5 ML-2350AF/2351AF Clearances between the Laser and Surrounding Wall ③ ML-2350AF/2351AF are provided with vents on its left and rear sides for heat radiation. Install the Laser to secure the minimum clearances of 500 mm as shown; otherwise, full performance cannot be expected. 500mm Exhaust Front...
-
Page 6: Maintenance
ML-2350AF/2351AF 3. Maintenance (1) Maintenance Parts and Standard Intervals of Inspection/Replacement In addition to maintenance parts for the standard model, perform inspection periodically referring to the following table. Operation interval Contents of Part name Model No. Item No. (*1) (*2) (standard) operation Every week... - Page 7 ML-2350AF/2351AF (2) Maintenance of the Air Filter (Side) The air filter at the side of the main unit is provided at the air inlet of the radiator. Perform cleaning for this air filter at this portion every week. Item required Phillips screwdriver Operating Procedure (1) Remove screws of the filter cover at the side of the main unit.
-
Page 8: Outline Drawing
ML-2350AF/2351AF 4. Outline Drawing The Laser Outline and Location of Warning/Caution Label See the next page for details of warning labels. ⑦ ② ⑤ ⑤ ③ ② ③ ② ② ① ⑦ ④ S HU TTER CONTROL POWER HIGH VOLTAGE READY MAIN SHUTTER ⑥... - Page 9 ML-2350AF/2351AF - 7 -...
