DMX4ALL DMX-Player L User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DMX-Player L
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMX-Player L and is the answer not in the manual?

Questions and answers

Related Manuals for DMX4ALL DMX-Player L

Summary of Contents for DMX4ALL DMX-Player L

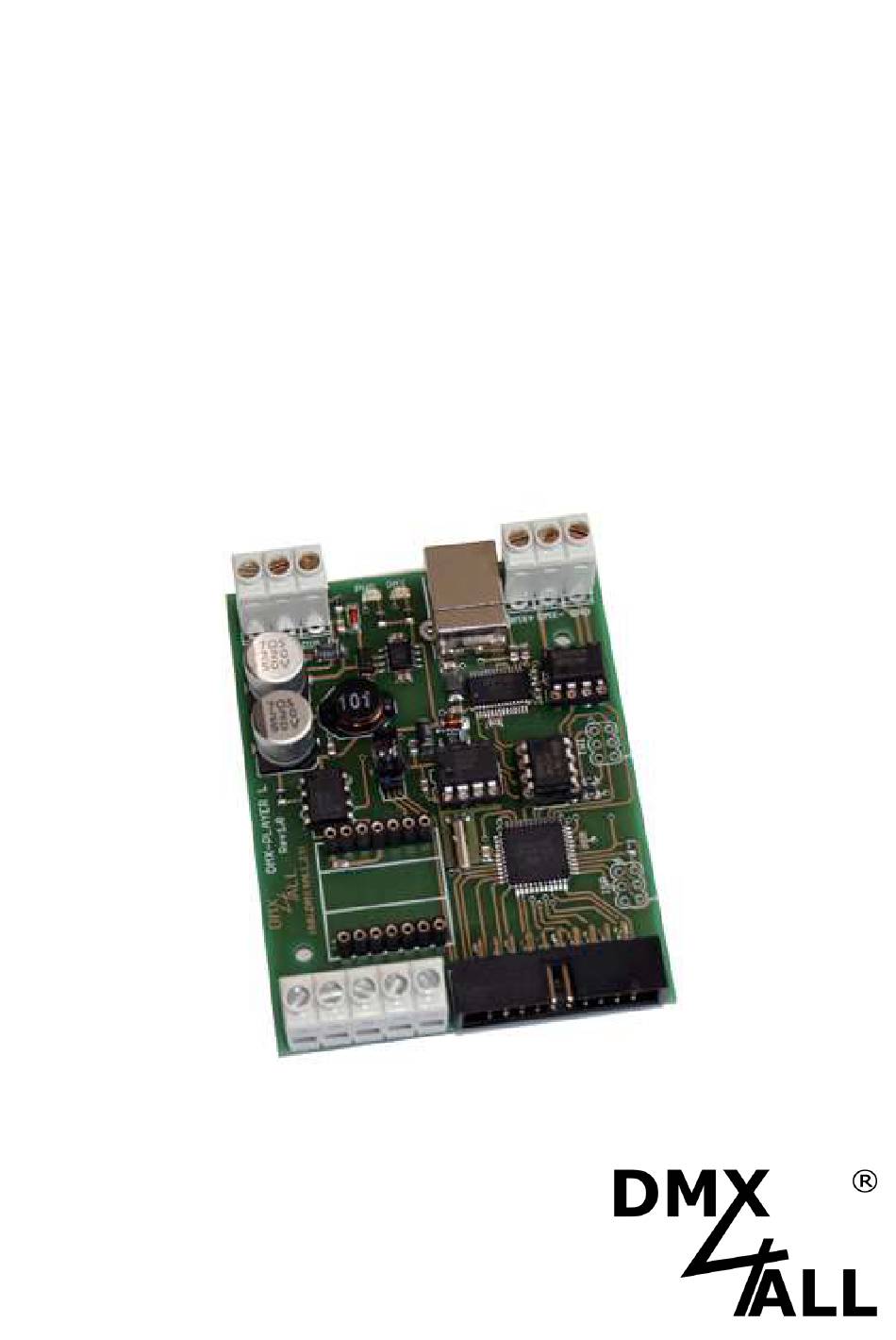

  • Page 1 DMX-Player L User Manual...

  • Page 2: Data Sheet

    DMX-Player L Description The DMX-Player L is a DMX-StandAlone device. The scenes provided in the PC can be loaded by USB on the device. Without PC the stored scenes can be reproduced. The scene selection can occur in different ways. An application in the live operation with connected PC is possible too.

  • Page 3: Installation Usb

    DMX-Player L Installation USB The Interface installation happens in two parts. Part 1: Installation the USB-driver - Put the DMX interface to a free USB port of your PC. There appears the announce-ment which was found new hardware. - Follow the hardware assistant and select for the drivers source Other Source specify and afterwards the place for the driver - Certify the located driver with Next and complete the driver’s installation with...
  • Page 4 DMX-Player L Connections Voltage supply LED-Display Connection - 0V - POWER OK - + 7 - 24V DC DMX- GREEN - DMX OK DIG IN - Control Input DMX+ USB Connection TWI-Interface Scene memory EEPROM 8k (24C64) (Standard) EEPROM 32k /24C256)

  • Page 5: Program Selection

    DMX-Player L Program selection The selection of the deposited scenes can occur by different wirings. Which wiring is used, must be configured in the Setup-Menu or the DMX-Configurator (For this see the part Configuration). The last selected scene will be recorded and after re-starting automatically launched.
  • Page 6 DMX-Player L Connection Matrix 5x5: PRG1 PRG2 PRG3 PRG4 PRG5 PRG6 PRG7 PRG8 PRG9 PRG10 Selection about numeric keypad with ENTER and BLACKOUT The input of the executive scene happens with the numeric keypad and next ENTER. The programs 1 up to 250 are possible.

  • Page 7: Brightness Setting

    Wiring with UP/DOWN button Wiring with Potentiometer During the operation the brightness value will be saved with the UP/DOWN- buttons and retained during shutdown the DMX-Player L. Speed Setting The speed setting can be carried out per UP/DOWN button or Potentiometer.

  • Page 8: Cable Length

    DMX-Player L Cable length The DMX-Player L ought to operate at the Control-Connection with cables as short as possible. Recommended are cable lengths up to 0,5 meters! To raise the operating safety resistors can be provided as shown in the following...
  • Page 9 Furthermore for every step the fade time and residence time will be set with Fade Time and Wait Time. You can write the provided scenes in the Stand-Alone-memory of the DMX-Player L. The transfer of the scenes to the interface can be started under Hardware→Write data.
  • Page 10 Default Scene on Start will be achieved by starting the DMX-Player L. Configuring the DMX-Player L The DMX-Player L can be configured about the DMX-Configurator from the version 1.5. Select therefore Settings→Hardware settings by connected DMX-Player L. It appears the following dialogue:...
  • Page 11 DMX-Player L Internal Clock (RTC) The DMX-Player L disposes of an internal clock with which scenes can be start at adjustable times. Time setting Select in the DMX-Configurator Hardware→Syncronize Clock . Now the topical PC-PC-system-time will transferred on the DMX-Player L.

  • Page 12: Ir-Operation

    DMX-Player L IR-Operation The DMX-Player L allows an IR-Operation by means of external IR-Sensor. An IR- Sensor is connected to the Pin 16 of the Control connection. The stored scenes can be called by IR-remote control. The DMX-Player L can be used by DMX4ALL LED remote control.
  • Page 13 DMX-Player L Dimensions All details in mm View from the components side (USB-Connection right)
  • Page 14 DMX-Player L CE-conformity This assembly (board) is controlled by a microprocessor and uses high frequency (8MHz). To get the characteristics of the assembly in relation to the CE-conformity, an installation in a compact metal casing is necessary. Risk-Notes You purchased a technical product. Conformable to the best available technology the...
  • Page 15 Germany Last changes: 29.09.2016 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
