DMX-Servo-Control 2
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DMX-Servo-Control 2 and is the answer not in the manual?

Questions and answers

Related Manuals for DMX4ALL DMX-Servo-Control 2

Summary of Contents for DMX4ALL DMX-Servo-Control 2

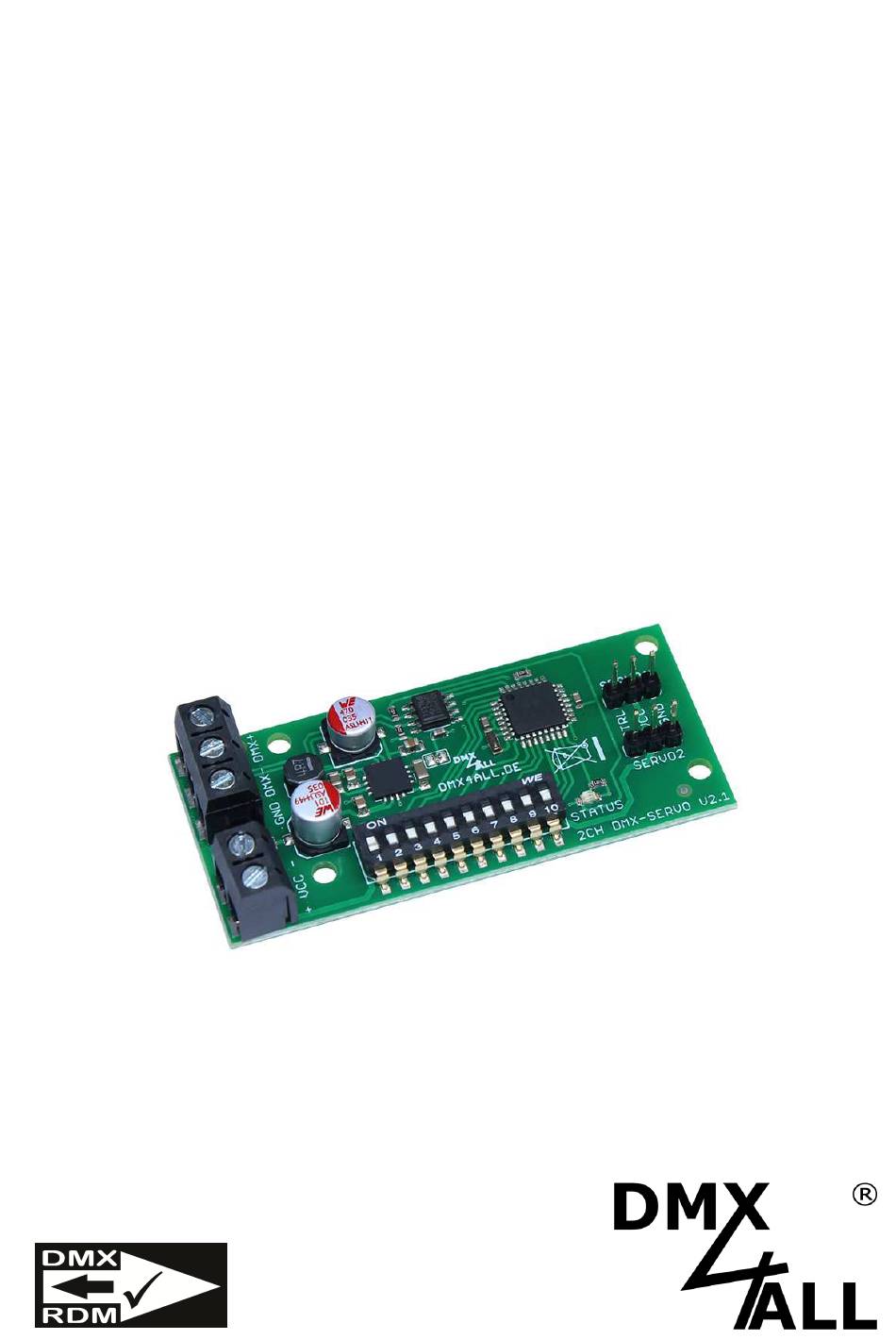

  • Page 1 DMX-Servo-Control 2 User Manual...
  • Page 2 For your own safety, please read this user manual and warnings carefully before installation. Description The DMX-Servo-Control 2 is designed for controlling of two servos via DMX. Two Servos The DMX Servo Control 2 has two servo ports. Each can be controlled via one DMX channel.

  • Page 3: Data Sheet

    DMX-Servo-Control 2 Data sheet Power supply: 5-12V DC 50mA without connected servo Protocol: DMX512 Servo-Voltage: 5-12V DC (corresponds to the supply voltage) Servo-Power: max. 3A in sum for both servos DMX-Channels: 2 Channels Connection: 1x screw terminal / 2pin 1x screw terminal / 3pin...
  • Page 4 DMX-Servo-Control 2 Connection ATTENTION : This DMX-Servo-Control 2 is NOT ADMITTED for applications whom has safety-relevant requirements or in which dangerous situations can occur !

  • Page 5: Led Display

    DMX-Servo-Control 2 LED-Display The integrated LED is a multifunction display. During to the normal operation mode the LED lights permanently. In this case the device is working. Furthermore, the LED shows the current status. In this case the LED lights up in short pitches and then is missing for longer time.

  • Page 6: Dmx Addressing

    DMX-Servo-Control 2 DMX-Addressing The Start Address is adjustable via DIP-Switches. Switch 1 has the valency 2 (=1), switch 2 the valency 2 (=2) and so on up to switch9 with the valency 2 (=256). The sum of the switches showing ON is equal to the start address.
  • Page 7 Normally this impulse is between 1ms and 2ms, which is also the standard setting for the DMX-Servo-Control 2. These are the end positions of the Servos where it is not limited mechanically. A pulse length of 1.5ms would be the Servo middle position.
  • Page 8 DMX-Servo-Control 2 Adjust Servo control signal In according to the used Servo it can be advantageous to adapt the impulse-times. The minimum time for the left position can be set within the range 0,1-2,5ms. The maximum time for the right position must be bigger than the minimum time and can be maximum 2,54ms.
  • Page 9 DMX-Servo-Control 2 (from Hardware V2.1) RDM is the short form for Remote Device Management. As soon as the device is within the system, device-dependent settings occur remotely via RDM command due to the uniquely assigned UID. A direct access to the device is not necessary.
  • Page 10 DMX-Servo-Control 2 Parameter ID Discovery ANSI/ Command Command Command PID:  SERIAL_NUMBER 0xD400 PID:   LEFT_ADJUST 0xD450 PID:   RIGHT_ADJUST 0xD451 1) Manufacturer depending RDM control commands (MSC - Manufacturer Specific Type) Manufacturer depending RDM control commands SERIAL_NUMBER PID: 0xD400 Outputs a text description (ASCII-Text) of the device serial number.

  • Page 11: Factory Reset

    Factory Reset Before performing the factory reset, read all the steps carefully. To reset the DMX-Servo-Control 2 to the delivery state proceed as follows: Turn off the device (Disconnect power supply !) Set address switch 1 to 10 on ON Turn on the device (Connect power supply !) Now, the LED flashes 20x within ca.
  • Page 12 DMX-Servo-Control 2 Dimensions All details in mm...
  • Page 13 DMX-Servo-Control 2 CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary.
  • Page 14 DMX-Servo-Control 2 Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary.
  • Page 15 Germany Last changes: 20.10.2021 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
