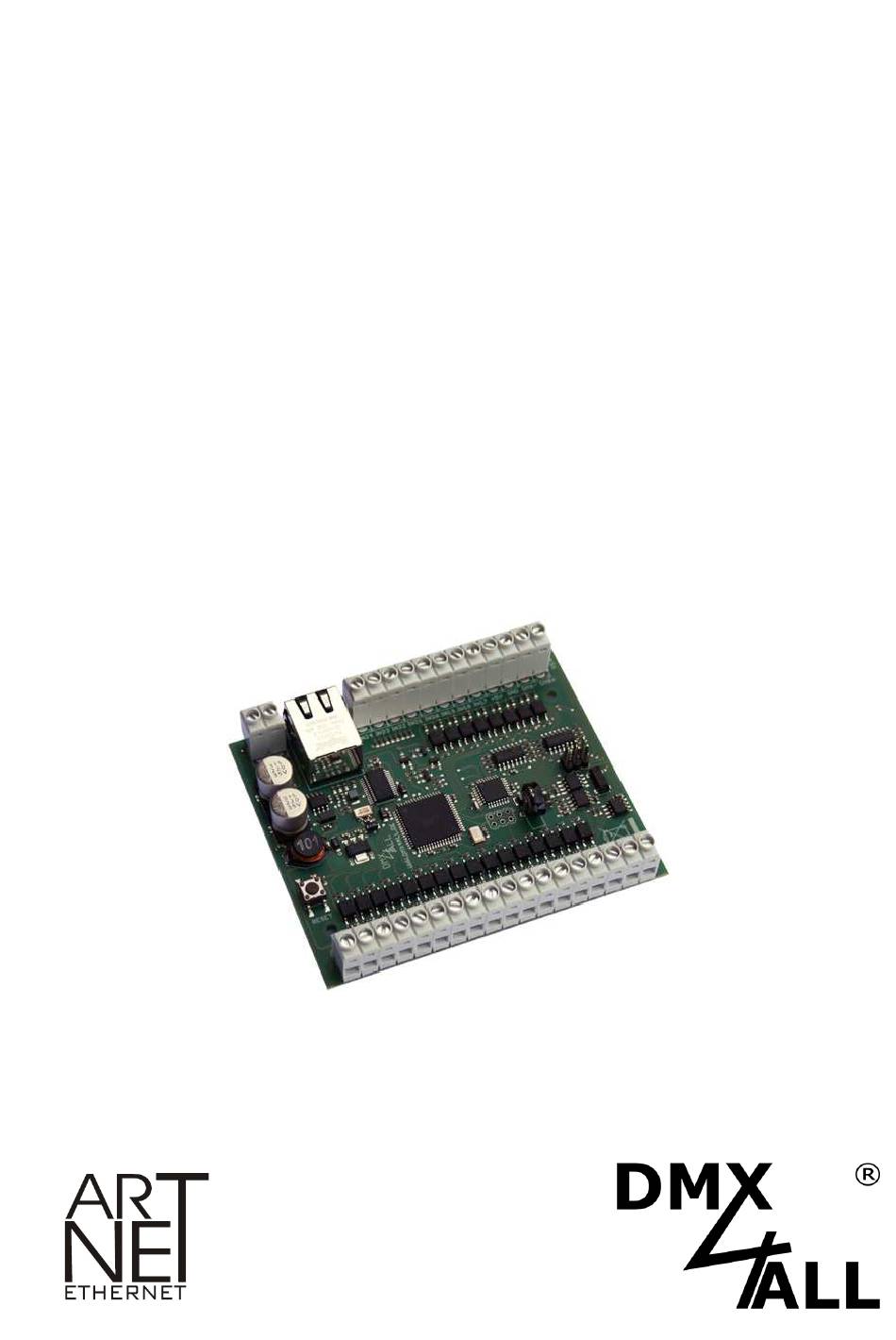

  • Page 1 ArtNet-DMX Mux24 User manual Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.
  • Page 2: Table Of Contents

    ArtNet-DMX Mux24 For your own safety, please read this user manual and warnings carefully before installation. Inhaltsverzeichnis Description ........................3 Data sheet ........................4 Connection ......................... 5 LED-Display ........................ 6 Configuration ......................6 Set the IP with the IP-Configurator ................6 Device Configuration ....................
  • Page 3: Description

    ArtNet-DMX Mux24 Description The ArtNet-DMX Mux24 has 16 digital inputs and 8 additional inputs which are switchable for analog or digital. The output occurs via ArtNet and DMX. 16 Long Distance Inputs 16 digital inputs are available to connect buttons or switches. The inputs are designed as Long Distance Inputs, so the switching elements can also be mounted at a greater distance.
  • Page 4: Data Sheet

    ArtNet-DMX Mux24 Data sheet 7-24V DC / 0,5A Power supply: 0,4A@12V / 0,2A@24V RJ45 Ethernet: 512 DMX channels DMX-OUT: Long Distance Digital Input Inputs: Analog Input or Long Distance Digital Input Switch Modi per input: Button Toggle-Button Dimmer Up Dimmer Down...
  • Page 5: Connection

    ArtNet-DMX Mux24 Connection Ethernet Analog 0-10V Analog 0-5V Analog 1-10V POWER 12-24V DC DMX OUT ArtNet-DMX Mux24...
  • Page 6: Led-Display

    The IP-Configurator allows setting the IP-Address and the net mask also if the PCs network setting is not in the IP-Range of the ArtNet-DMX Mux24. Install the software IP-Configurator Connect the ArtNet-DMX Mux24 with the net mask and turn it on Start the software IP-Configurator The ArtNet-DMX Mux24 is shown in the list...
  • Page 7 ArtNet-DMX Mux24 Set the IP with web browser The assigned IP-Address within the delivery status is 2.0.0.5 which will be used for the web-interface as well as for the ArtNet. Set your computers network card to this IP range to access the IP address via the web browser.
  • Page 8: Device Configuration

    ArtNet-DMX Mux24 Device Configuration Please call up the IP of the ArtNet-DMX Mux24 within the web browser and address bar (delivery status: 2.0.0.5) and to get the following configuration side: Main Device Parameter Each device needs an own IP-Address that the assignment occurs clearly within the network.
  • Page 9 ArtNet-DMX Mux24 Input 17-24 Mode The function of inputs 17-24 is set. ArtNet Output Parameter The ArtNet output parameters specify the values for the Art-Net™ output. Net / SubNet / Universe (Port) are the Art-Net™ parameter defining the aim. The Transmit Mode specifies how to output data via Art-Net™.
  • Page 10: Digital Inputs (In1-In16)

    ArtNet-DMX Mux24 Digital Inputs (IN1-IN16) The digital inputs are designed as LONG DISTANCE inputs which allow using longer supply pipes to the switching elements. The input wiring occurs with a switch or a button, connect to GND, as shown in the...
  • Page 11 ArtNet-DMX Mux24 Configuration of the Inputs The inputs are configured via the web interface. Therefore, the both sites for configuration Input 1-8 and Input 9-16 are available. For the Input the Mode is selected separately. The input field Parameter specifies which function is to execute, e.g. which DMX channel is to set to which DMX value.
  • Page 12 ArtNet-DMX Mux24 In the Parameter input field, the DMX channel and the DMX value that the corresponding input is to control are specified. The DMX channel specification is to occur as decimal value from 1 to 512. If several DMX channels are controlled via one input, the individual DMX channels must be entered separately by a semicolon or comma.
  • Page 13 ArtNet-DMX Mux24 The following modes can be selected for each digital input: Switch The mode Switch sets the DMX channel(s) to the specified value as long as the input is controlled (operated). If the input is not activated (not operated), the value 0 (0% / OFF) is set.
  • Page 14 ArtNet-DMX Mux24 Use digital inputs as binary inputs For the digital inputs there are the possibilities to build one output value away several inputs. In this case the input must be configured as Switch. The specification for the channels needs than an +=VALUE.
  • Page 15: Analog / Digital Inputs (In17-In24)

    ArtNet-DMX Mux24 Analog / Digital Inputs (IN17-IN24) The analog/digital inputs are adaptable for using as LONG DISTANCE digital inputs or analog inputs. The inputs will be configured via the web-interface. The selection, if the inputs should be used analog or digital, occurs in on the site MAIN.
  • Page 16 ArtNet-DMX Mux24 The wiring can occur in several ways Connection with external analog signal (0-10V / 0-5V / 1-10V) analog 0-10V analog 0-10V Connection with potentiometer (Modi must be 0-5V) Connection as digital input The wiring as LONG DISTANCE digital input occurs with a switch or button, connect...
  • Page 17 ArtNet-DMX Mux24 Fit the output values of the analog inputs For the analog inputs it is possible to adjust the assignment of the input value to the output value. In this case, the input must be configured as analog 0-10V and the assignment must be adding in the parameter input.
  • Page 18 ArtNet-DMX Mux24 Example: „17=[2.5V-8V]:[40-180]“  Output occurs on DMX channel 17; Up to a voltage of 2.5V the DMX value 40 will be outputted; Between 2.5V and 8V the output value is outputted linearly from 40 up to 180; From a voltage of 8V the DMX value 180 is outputted.
  • Page 19: Send Wake On Lan (Wol)

    ArtNet-DMX Mux24 Send Wake On Lan (WoL) The ArtNet-DMX Mux24 can send a Wake On Lan (WoL) message via Ethernet when an input is activated (selected). For this the mode Button must be selected and as parameter „WoL(xx-xx-xx-xx-xx- xx)” specified.
  • Page 20: Timer

    ArtNet-DMX Mux24 Timer The ArtNet-DMX Mux24 offers 4 timer. Each of these have a time for switch-on and a time for switch-off as well as a selection for the weekdays on which the timer should be active. The channel on which the timer should work will be specified as decimal value from 1 up to 512.
  • Page 21: Dmx-Output

    ArtNet-DMX Mux24 DMX-Output The ArtNet-DMX Mux24 has a DMX-Output which can be used to connect DMX-able devices directly. DMX OUT ArtNet-DMX Mux24 At the DMX-Output a DMX-Signal with 512 DMX-Channels will be outputted. The values of the DMX-channels will be determined via the digital inputs and the configuration.
  • Page 22: Factory Reset

    ArtNet-DMX Mux24 Factory Reset The ArtNet-DMX Mux24 can be set into the delivery status via the button. Please proceed as follows: Turn off the device Push button and hold Turn on the device The yellow LED flashes Release button Push button again and hold The green and yellow LED flashes now for ca.
  • Page 23: Firmware-Update

    ArtNet-DMX Mux24 Firmware-Update The ArtNet-DMX Mux24 has an update function which allows transferring prospective Firmware-versions. Please proceed as follows: Turn off the device Push button and hold Turn on the device The yellow LED flashes Release button Generate a net-work connection to the PC...
  • Page 24: Equipment

    ArtNet-DMX Mux24 Equipment Top-hat rail housing 1050 Power supply 12V Network cable...
  • Page 25: Ce-Conformity

    ArtNet-DMX Mux24 CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary.
  • Page 26: Risk Notes

    ArtNet-DMX Mux24 Risk Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary.
  • Page 27 D-44869 Bochum Germany Letzte Änderung: 03.02.2022 © Copyright DMX4ALL GmbH Alle Rechte vorbehalten. Kein Teil dieses Handbuches darf in irgendeiner Form (Fotokopie, Druck, Mikrofilm oder in einem anderen Verfahren) ohne ausdrückliche schriftliche Genehmigung reproduziert oder unter Verwendung elektronischer Systeme verarbeitet, vervielfältigt oder verbreitet werden.
