  • Page 1 WirelessDMX RX/TX board User Manual...

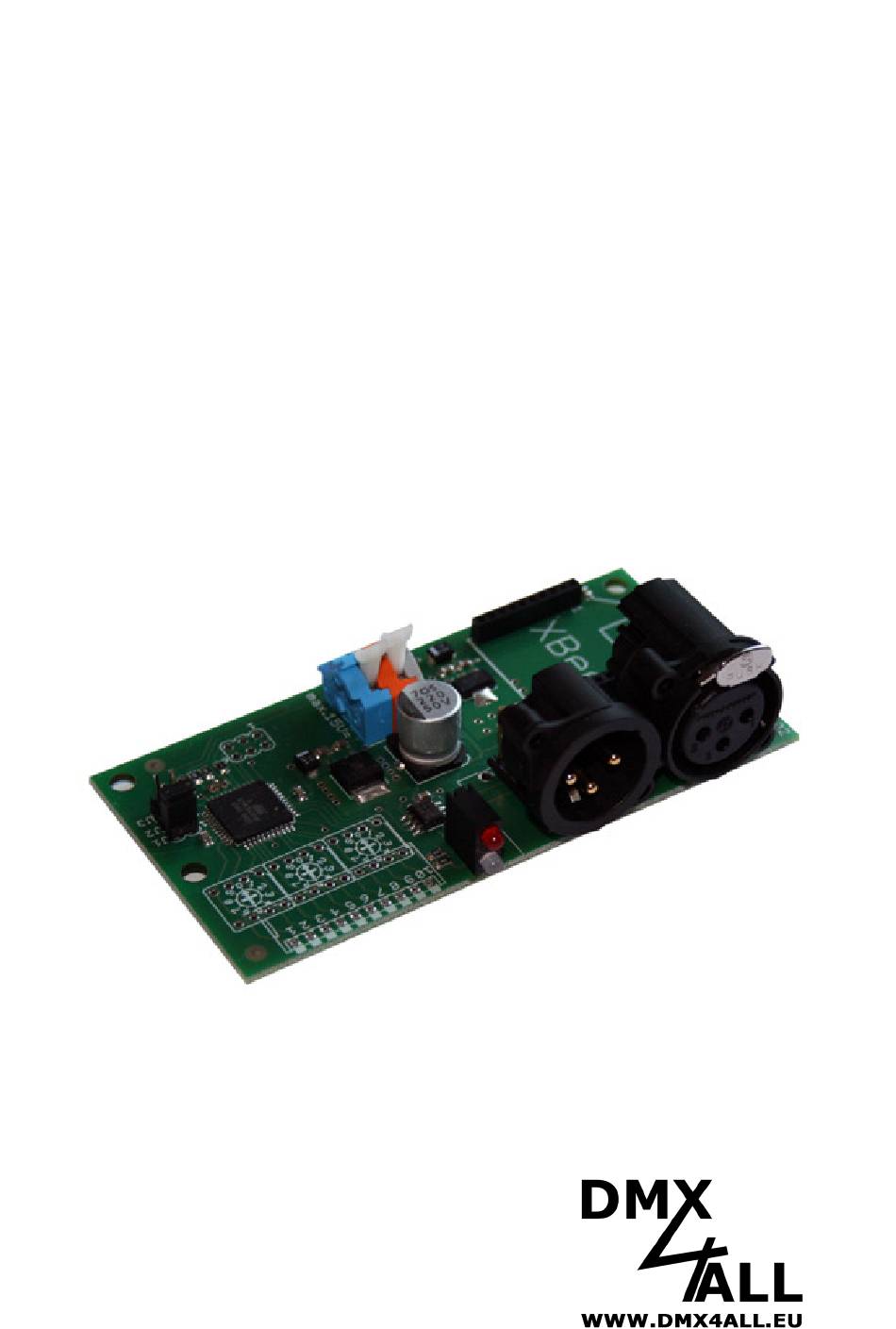

  • Page 2 WirelessDMX RX/TX board Specifications The WirelessDMX installation board is designed for operation with XBee-wireless modules. Each WirelessDMX installation board can be configured as a transmitter or receiver unit. Technical Data Power supply: 7-15V DC / 500mA Transferred DMX channel: 512 DMX-Connection: 3-pin XLR 5-pin XLR as special design possibly...
  • Page 3 WirelessDMX RX/TX board Connection of the Interfaces DMX OUT DMX IN 1 – GND 1 – GND 2 – DATA- 2 – DATA- 3 – DATA+ 3 – DATA+ Wireless module Power supply Attention: Please observe the Orange – 9-15V installation direction and obey Blue –...
  • Page 4 WirelessDMX RX/TX board Start-up One-of configuration of the wireless module For each wireless module a configuration is necessary. You must it carry out one- of. Please follow in addition the single steps: Put the wireless module on the board. Pay attention to the installation direction, absolutely! Close Jumper J3 Now, connect the power supply...
  • Page 5 WirelessDMX RX/TX board Dimensions Board mounting d=3,2 30,5 17,78 Front-panel-cut d=3,2 d=3,2 30,5 45,88 55,78 65,68 68,88 78,78 88,68 (all dimensions in mm)
  • Page 6 WirelessDMX RX/TX board Accessoires Wireless module XB24-AWI-001 2,4GHz; 1mW with antenna Wireless module XB24-AUI-001 2,4GHz; 1mW with UFL connector Wireless module XBP24-AUI-001J 2,4GHz; 10mW with UFL connector...
  • Page 7 WirelessDMX RX/TX board CE-conformity This assembly (board) is controlled by a microprocessor and uses high frequency (8MHz). To get the characteristics of the assembly in relation to the CE-conformity, an installation in a compact metal casing is necessary. Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning.
  • Page 8 D-44869 Bochum Germany © Copyright 2010 DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
