BEGA 33 200 Installation And Technical Information

BEGA
Installation and Technical Information
Tools Required:
Phillips medium screw driver
3 mm hex key
Standard medium slotted screwdriver
Protection Class: IP65
Weight: 0.4 lbs.
Notice to Installer for 33 200:
1. BEGA luminaires may be damaged if connected to conduit systems containing water - Article
300-5G of National Electric Code requires that "Conduits or raceways through which moisture
may contact energized live parts shall be sealed or plugged at either or both ends".
2. Luminaire is Non-IC rated. Insulation must be at least 3" from luminaire.
3. Suitable for installation in hollow wall construction or poured concrete construction.
4. Back housing (BB2100LED) provided with (2) 7/8" holes (horizontal entry) for 1/2" trade size conduit.
NOTE: Internal components will not fit if conduit enters vertically.
5. Back housing must be installed so that the front face is flush with the finished wall.
6. Suitable for through wiring: max. of (4) No. 12 AWG conductors (plus ground) rated for 90°C.
7. Suitable for wall applications only. (No ceiling and in-grade applications).
8. LEDs are high-quality electronic components! Please avoid touching the light output opening of the
LED directly during installation.
Requires a 24V DC class 2 electronic power supply to operate intended LED
NOTE:
wattage.
(not included). DO NOT USE LINE VOLTAGE

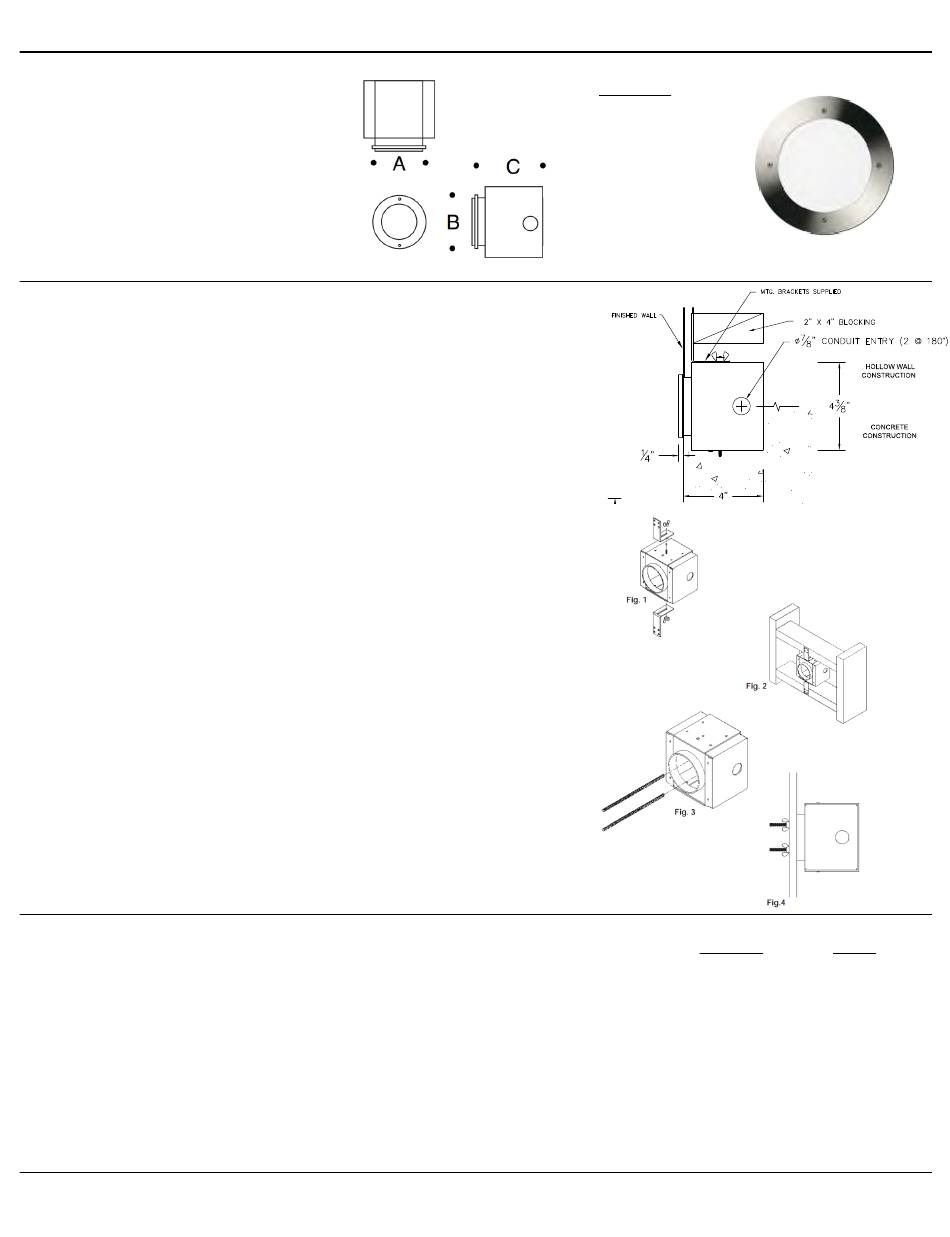

BB2100LED - back housing installation in hollow (stud) wall construction:
1. Install the (2) slotted mounting brackets provided as shown in Figure #1, using the (2) #6-32
wing nuts provided in the installation kit.
2. Adjust the brackets (by loosening the #6-32 wing nuts) so that the face of the back box will be
flush to the finished wall surface after installation.
3. Secure the mounting brackets to wood or metal horizontal blocking as shown in Figure #2.
4. Connect conduit to back housing and pull wires for electrical connections to be made later.
BB2100LED - back housing installation in poured concrete construction:
1. Attach (2) #8-32 threaded rods into the pressed nuts located in the bottom of the fixture back box (Fig
#3).
2. Attach the fixture back box to the concrete form using the wing nuts and washers provided in the
installation kit (Fig #4).
3. Connect conduit to back housing and pull wires for electrical connections to be made later. Pour
concrete. IMPORTANT NOTE!!! DO NOT PUMP OR DROP CONCRETE DIRECTLY ON TOP OF
THE BACK HOUSING.
4. After concrete is poured, remove the #8-32 wing nuts from the threaded rod before removing the form.
33 200 - inner housing wiring and installation:
1. Undo faceplate screws and carefully remove trim ring and lens.
2. Connect the corresponding positive and negative wires from the inner housing to the remote driver.
3. Place a small bead of silicone between edge of housing and wall to provide a seal.
4. Install inner housing into back housing, and tighten the (2) M3 screws until secure.
5. Install faceplate casting and lens. Make sure that gasket and lens are seated properly.
6. Tighten the (4) M4 flathead screws evenly to secure.
Relamping/Maintenance
No relamping required.
Lamp: 2.1W LED - 24V DC
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA-US 2018
LED recessed wall luminaires made of stainless steel
Accessories
Please refer to the appropriate
accessory installation sheet for
further instruction when applicable.
Remote 25W LED Driver 19 580
Remote 50W LED Driver 19 591
Dimensions
A: 3⅛
B: 4 "
Replacement Parts
Description
Faceplate
Glass
Gasket
LED (3000K)
33 200
Part No
710813B
140515
830887.1
74020
33 200
06/2018
Page 1 of 2
