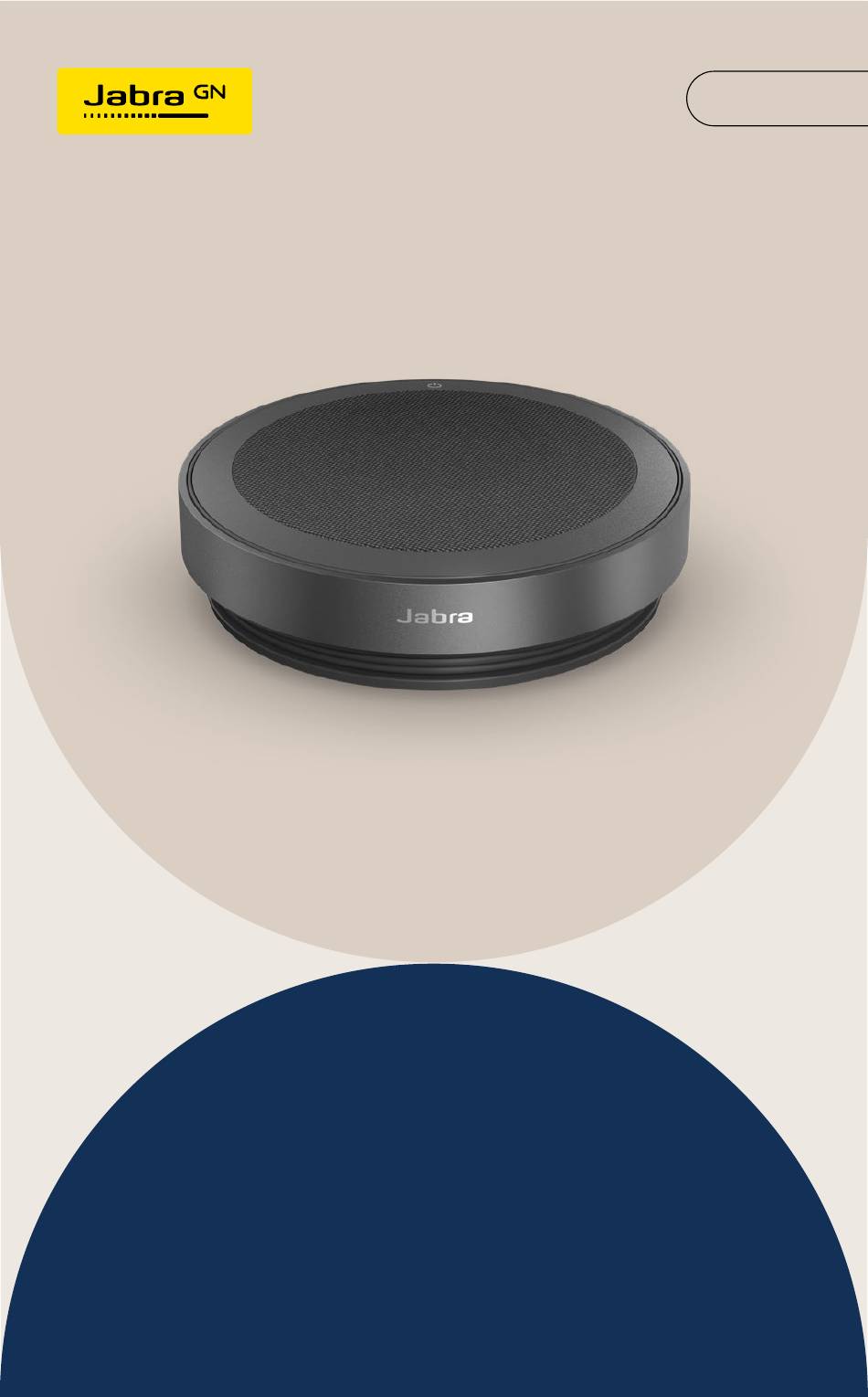

- Page 1 USER MANUAL SPEAK2 Technology for life’s new rhythm...
- Page 2 ® © 2023 GN Audio A /S. All rights reserved. Jabra is a ® trademark of GN Audio A/S. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by GN Audio A/S is under license.
- Page 3 1. Welcome .........5 2. Overview .........6 2.1 Microsoft Teams version 2.2 UC version 2.3 Included accessories 2.4 Optional accessories 3. Position guide ........8 4. How to charge .......9 4.1 USB charging 4.2 Automatic power off 4.3 Battery status 5. How to connect ......12 5.1 Connect to a computer (USB cable) 5.2 Connect to a computer (Bluetooth adapter) 5.3 Connect to a smartphone or tablet...
- Page 4 7. Applications and firmware up- date ..........32 7.1 Jabra Sound+ 7.2 Jabra Direct 7.3 Update firmware 8. Support ........34 8.1 FAQ and technical specifications 8.2 How to care for your Jabra device 8.3 How to clean your Jabra device...
- Page 5 • Voice Level Normalization equalizes all voices • Certified for leading virtual meeting platform * Super-wideband audio experience requires UC client support, and device support. ** Initial activation is required via the Jabra Sound+ or Jabra Direct apps...
- Page 6 2. Overview 2.1 Microsoft Teams version Power on/off Play/pause music (customizable Status LED ring button) Microsoft Teams Microphone Quality Indicator (enable in app) End/reject call Answer call Bluetooth Battery status Volume down Volume up Mute microphone (only visible when the microphone is active) 2.2 UC version Power on/off Play/pause music...
-
Page 7: Included Accessories
2.3 Included accessories USB A USB C Carry pouch Jabra Link Bluetooth adapter Depending on the Speak2 75 version, the Jabra Link Bluetooth adapter may not be included. It can be purchased at Jabra.com/accessories 2.4 Optional accessories Optional accessories available jabra.com/accessories... - Page 8 3. Position guide For the optimal audio quality, position the speakerphone in the center of the table, up to 2.5m/8.2ft from each participant, but no closer than 0.5m/1.6ft. 0.5m - 2.5m 1.6ft - 8.2ft...
-
Page 9: How To Charge
4. How to charge 4.1 USB charging Plug the speakerphone into a USB power source using the attached USB cable. Depending on the power output of the port, faster charging is available when using USB C. The battery lasts for up to 32 hours of wireless use. USB C USB A... -
Page 10: Automatic Power Off
Bluetooth device for 15 minutes. If connected to a Bluetooth device and not plugged into power, the speakerphone will power off after 8 hours of no interaction. This setting can be configured in Jabra Direct or Jabra Sound+. -
Page 11: Battery Status
4.3 Battery status To view the current battery status, tap the Battery button. The LED ring will flash to indicate the status. When the battery status is critically low, the Battery button will flash red. Critically low battery Medium battery... -
Page 12: How To Connect
5.1 Connect to a computer (USB cable) Plug the speakerphone into a USB C or USB A port on your computer. You may need to set the Jabra Speak2 75 as the playback and recording device in your operating system audio settings and in the video conferencing tool (Microsoft Teams, Zoom, Cisco Webex, etc.) audio settings. - Page 13 The Bluetooth range is up to 30m/98ft. For the speakerphone to work correctly, you may need to set the Jabra Link 380 Bluetooth adapter as the playback and recording device in your operating system audio settings and in the video conferencing tool (Microsoft Teams, Zoom, Cisco Webex, etc.) audio settings.
- Page 14 If you need to re-pair the speakerphone with the Jabra Link 380 Bluetooth adapter, use Jabra Direct. 5.3 Connect to a smartphone or tablet Hold the Bluetooth button for 3 seconds and follow the voice-guided instructions to pair to your smartphone or tablet. The Bluetooth range is up to 10m/33ft.
-
Page 15: How To Use
6. How to use Power button Smart button Microsoft Teams button* Answer call End/reject call button button Bluetooth button Battery button Volume down Volume up button button Mute button *Microsoft Teams version only 6.1 Button visibility The buttons are backlit and only visible when the speakerphone is powered on, except for the Power button, which is always visible. -
Page 16: Typical Use
6.2 Typical use WHAT Hold (2 sec) the Power Power on/off button Tap the Answer call Answer call button Tap the End/reject call End/reject call button Tap (or hold) the Volume Increase/decrease up or Volume down volume button Tap the Mute button Mute/unmute (only visible when the microphone... - Page 17 Play/pause music (default), speed dial Tap the Smart button or mobile device voice assistant Button functionality depends on the Microsoft Teams desktop application. Certified for USB connection or Jabra Link 380 Bluetooth adapter connection. Standard Bluetooth connections are not certified.
-
Page 18: Multiple Call Handling
6.3 Multiple call handling WHAT Put current call on hold Tap the Answer call and answer incoming call button Switch between held call Tap the Answer call and active call button Reject incoming call and Tap the End/reject continue current call call button... -
Page 19: Smart Button
6.4 Smart button The Smart button can be customized using Jabra Direct or Jabra Sound+. The options available are: • Play/pause music (default) • Speed dial • Mobile device voice assistant • None If None is selected, the Smart button will not... - Page 20 6.5 Microsoft Teams button The Microsoft Teams button is only visible when the speakerphone is connected to your computer and you are signed in to Microsoft Teams. button behaves differently depending on the current status of Microsoft Teams. To quickly locate the Microsoft Teams button by touch, there is a small tab on the underside of the Microsoft Teams button.
- Page 21 WHAT YOU SEE WHAT IT MEANS Solid purple Connected to Microsoft Teams Notifications* Flashing • Microsoft Teams purple meeting ready to join Microsoft • Microsoft Teams Teams missed call button • Microsoft Teams voicemail * The Microsoft Teams LEDs can show only one notification at a time. The Microsoft Teams button will interact with the last received notification.
- Page 22 Join a Microsoft Teams meeting When a scheduled Microsoft Teams meeting has started, the Microsoft Teams button will flash purple. Tap the Microsoft Teams button on the speakerphone to join the meeting.
- Page 23 View Microsoft Teams missed calls and voicemails If you have Microsoft Teams missed calls or voicemails, the Microsoft Teams button will flash purple. Tap the Microsoft Teams button on the speakerphone to view the list of missed calls and voicemails on your computer.
- Page 24 Bring Microsoft Teams to foreground When Microsoft Teams is running but is minimized, tap the Microsoft Teams button on the speakerphone to maximize and bring it to the foreground on your computer.
- Page 25 Raise/lower your hand during a Microsoft Teams meeting During a Microsoft Teams meeting, hold (2 sec) Microsoft Teams button speakerphone to raise/lower your hand. This action will be indicated by a yellow hand icon next to your name.
- Page 26 6.6 Status LED ring LED RING STATUS In call Muted Incoming call Incoming call during a call Incoming call while muted Factory reset...
- Page 27 LED RING STATUS Firmware update Standby LED status Media streaming...
- Page 28 Poor voice pickup. Move closer to the speakerphone or speak louder/ clearer. Very poor voice pickup. Move closer to the speakerphone and speak louder/clearer. The Microphone Quality Indicator is disabled by default and can be enabled using Jabra Direct or Jabra Sound+.
- Page 29 The speakerphone indicates factory reset, battery level, pairing and Bluetooth connection status. You can select tone or voice notifications using Jabra Direct or Jabra Sound+. The language of the voice notifications can be changed using Jabra Direct. The supported languages are English, Chinese Mandarin,...
-
Page 30: Auto Reconnect
Bluetooth devices will be unpaired and need to be paired with the speakerphone again. Auto-reconnect can be configured in Jabra Direct or Jabra Sound+. To pair a device with the speakerphone, hold (3 sec) the Bluetooth button on the speakerphone and follow the voice-guided instructions. -
Page 31: Factory Reset
Resetting the speakerphone clears the list of paired Bluetooth devices and also clears all personalized settings. After a factory reset, it is necessary to re-pair the Jabra Speak2 75 to your Bluetooth devices. To factory reset, hold the Answer call button and the End/reject call button for 4 seconds until ‘restore to factory default’... - Page 32 7. Applications and firmware update 7.1 Jabra Sound+ Jabra Sound+ is a mobile application that allows you to configure the Jabra Speak2 75 based on your needs. 7.2 Jabra Direct Jabra Direct desktop application designed to support, manage enable optimal functionality for Jabra devices.
-
Page 33: Update Firmware
Jabra devices. Jabra Direct or Sound+ will notify you when a firmware update is available. • With Jabra Direct, connect the Jabra Speak2 75 to a computer using the USB cable or the Jabra Link 380 Bluetooth adapter. - Page 34 The Jabra Speak2 75 FAQ, certifications, and technical specifications at jabra.com/support 8.2 How to care for your Jabra device • The Jabra Speak2 75 is for indoor use only. • Avoid storage at extreme temperatures (above 45°C/113°F or below -20°C/-4°F).
- Page 35 8.3 How to clean your Jabra device Keep your product clean by following these best practices for hygiene. 1. Apply normal dish soap and water to a cloth, making sure you wring out excess liquid so the cloth is not dripping wet. Use soap and water only –...
