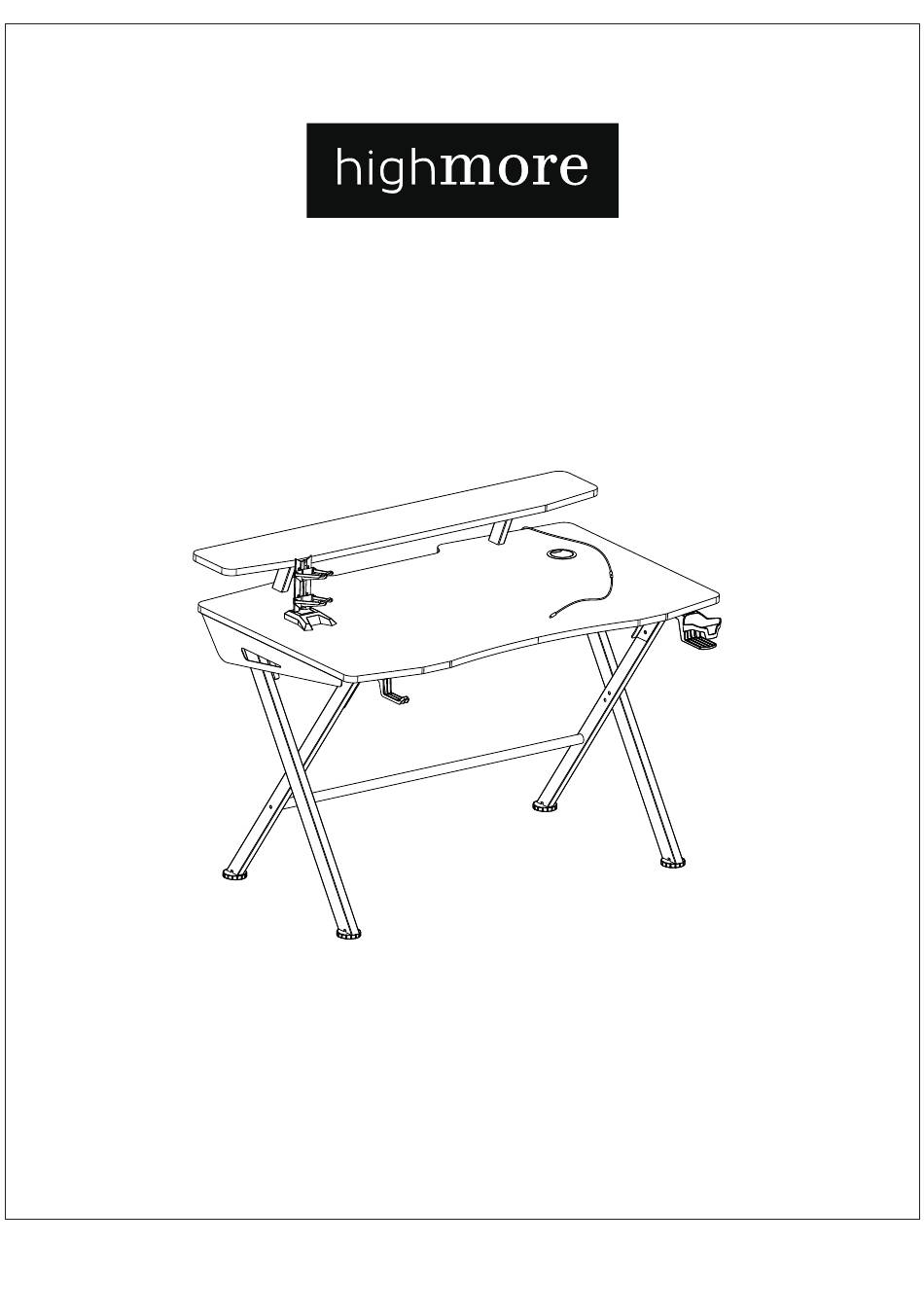

- Page 1 Raid Fixed Gaming Desk Assembly Instruc�ons Product Ref-HM-GD005-001 Imported By: Forward Industries, 33401. U.S.A Issue 1 - 09/09/21...
- Page 3 Table Top Qty 1 (47.6*29.5*0.7") Shelf Qty 1 (47.6*7.9*0.7") Outer Leg (Le�) Qty 1 Outer Leg (Right) Qty 1 Inner Leg (Right) Qty 1 (35.9*2.0*1.0") (35.9*2.0*1.0") (35.9*1.6*0.8") Inner Leg (Le�) Qty 1 Stretcher Qty 1 (35.9*1.6*0.8") (φ1.0*38.8")
- Page 4 Shelf Support Qty 2 Outer Bracket (Le�) Outer Bracket (Right) Qty 1 Qty 1 (4.5*3.7*2.2") (7.0*2.4*1.9") (7.0*2.4*1.9") Inner Bracket (Right) Inner Bracket (Le�) Side Panel (Right) Qty 1 Qty 1 Qty 1 (6.8*2.4*1.5") (6.8*2.4*1.5") (24.1*4.2*0.8") Side Panel (Le�) Headphone Hook Cup Holder Qty 1 Qty 1 Qty 1...
- Page 5 M8 Screw Qty 16 (M8*0.63") M8 Screw Qty 8 (M8*1.38") M4 Screw Qty 14 (M4*0.39") 5x5 Allen key(with cross) Qty 1 St4.2 Screw Qty 6 (St4.2*0.51") (0.2*0.2*3.15”)
- Page 6 STEP 1 Carefully locate inner legs into posi�on. Right Le� Underside Front SHOWN UPSIDE DOWN STEP 2 Locate outer legs into posi�on. Right Le� SHOWN UPSIDE DOWN...
- Page 7 STEP 3 Locate brackets into posi�on. Secure using screws M8 Screw Qty 16 SHOWN UPSIDE DOWN 5x5 Qty 1 STEP 4 Use screws to secure legs Secure stretcher using screws M8 Screw Qty 6 SHOWN UPSIDE DOWN 5x5 Qty 1...
- Page 8 STEP 5 Assemble side panels to top using screws Screw feet into legs Front M4 Screw Qty 6 SHOWN UPSIDE DOWN 5x5 Qty 1...
- Page 9 STEP 6 Assemble headphone hook and cup holder to the underside of top using screws Right Le� Front St4.2 Screw Qty 6 SHOWN UPSIDE DOWN 5x5 Qty 1 STEP 7 Feed the cable on the underside of shelf through one of the shelf supports Secure shelf supports Angle towards back...
- Page 10 STEP 8 With help, turn the desk into the standing posi�on. Warning the desk is heavy, li� with care. With help feed cable through the hole in top Carefully lower shelf Front into posi�on at the back of Secure from the underside Back using screws M8 Screw Qty 2...
- Page 11 STEP 10 Assembly is complete If you have ques�ons regarding the opera�on of your purchase, or in the unlikely event you need to return the unit because it is faulty or is no longer wanted, please contact our product returns department at customerservice@forwardindustries.com, or 561-465-0030, Op�on 0.
