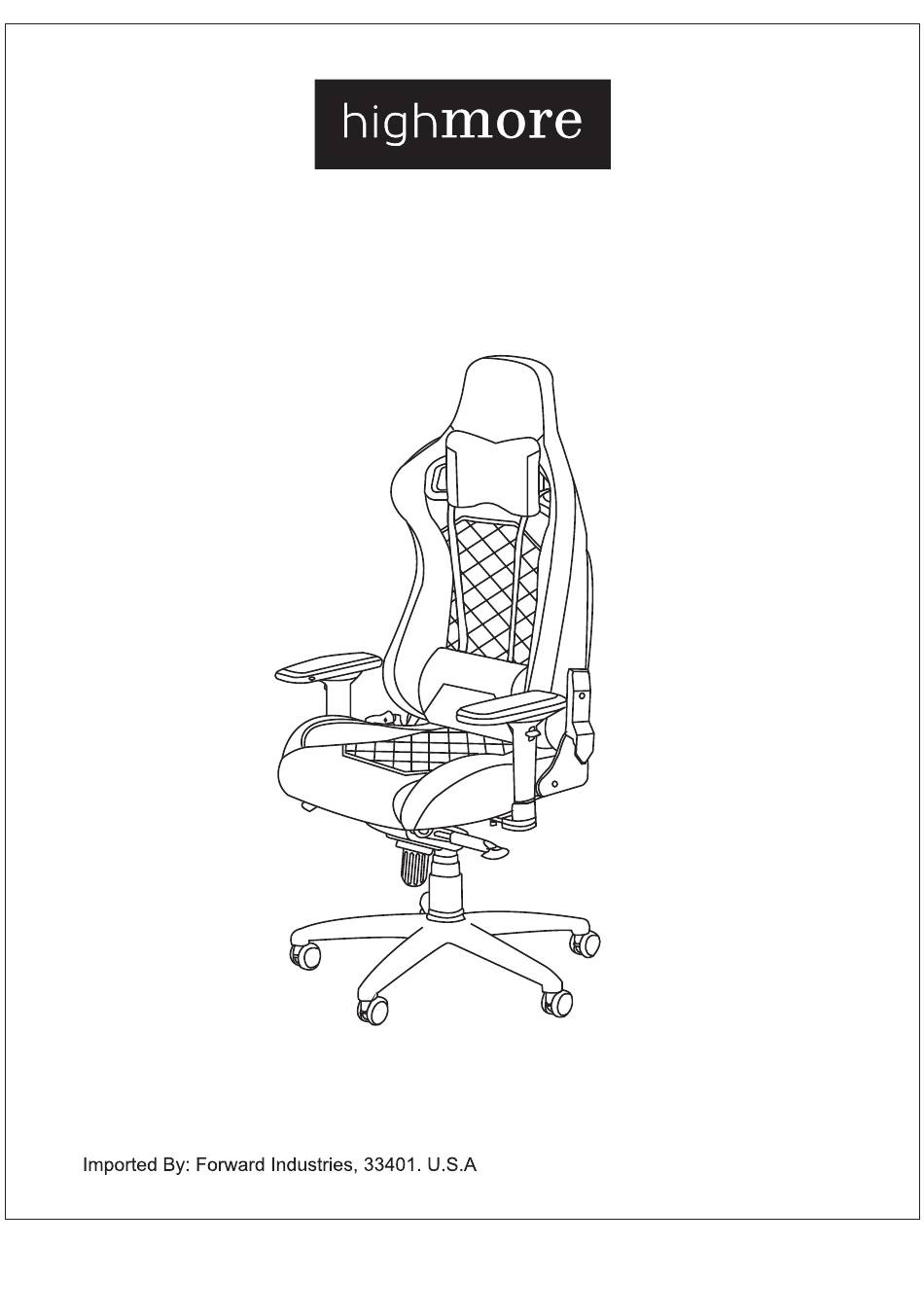

- Page 1 Element Gaming Chair User Manual Product Ref-HM-GC004-001 Issue 1 - 11/10/21...
- Page 2 1. The maximum weight that can be placed on this product is 308lbs. 2. Check carefully to ensure correct and complete assembly before using. 3. Don’t allow children to play near the chair as their behaviour is unpredictable. The manufacturer is not responsible for loss, injury, or damage due to improper actions or use.
- Page 3 Backrest Qty 1 Seat Pad Qty 1 Base Qty 1 Neck Cushion Qty 1 Lumbar Cushion Side Cover Qty 2 Qty 1 Tilt Mechanism Qty 1 Gas Lift Piston Gas Lift Piston Qty 1 Handle Sleeve Qty 2 Cover Qty 1 Caster Qty 5 Armrest Qty 1 Pair...
- Page 4 Side Cover Cap Qty 4 M8(0.79inch) Qty 16 M5(0.31inch) Qty 6 Allen Key Qty 1...
- Page 5 STEP 1 Assemble casters the underside of base Shown upside down STEP 2 Push gas lift piston into base Fit gas lift piston cover loosely over piston...
- Page 6 STEP 3 Assemble armrests the underside of seat pad using fixings Back Front Shown upside down M8(0.79inch) Allen Key STEP 4 Ensuring it is the correct way round, assemble tilt mechanism to the underside of seat pad using screws Back Front M8(0.79inch) Allen Key...
- Page 7 STEP 5 Carefully locate seat pad over the gas lift pistion Push down Firmly to secure. Back Front Shown Upside Down...
- Page 8 STEP 6 Fit neck cushion lumbar cushion to the front of backrest Join strap buckles to secure.
- Page 9 STEP 7 With help, locate backrest in between recline Seat Pad Secure using screws M8(0.79inch) Allen Key...
- Page 10 STEP 8 Use screw + cover and allen key to fix the adjust cover on the backrest and seat Side Cover M5(0.31inch) Allen Key...
-
Page 11: Seating Adjustment
STEP 9 ROCKING FUNCTION Lift up the handle on left side to unlock the rocking function. Press down the handle to lock the rocking function. Turn the knob clockwise to increase the rocking spring strength. Turn the knob counter clockwise to decrease the rocking spring strength. -
Page 12: Armrest Adjustment
STEP 11 4D ARMREST ADJUSTMENT Rotate the armrest to adjust the direction. lift the button to adjust the height. Press the button to adjust the front&back. Front&Back Press the button to adjust the left&right. Up&down Left&Right STEP 12 ADJUST LUMBAR PILLOW Lift the handle on right side to recline and release it to any desired position. - Page 13 If you have questions regarding the operation of you purchase, or in the unlikely event you need to return the unit because it is faulty or is no longer wanted, please contact our product returns department at customerservice@forwardindustries.com, or 561-465-0030, Option 0. Address: Forward Industries, 105 Sourth Narcissus Avenue Suite 412, West Palm Beach, FL 33401...
