8. REMOTE MOUNTING INSTRUCTIONS

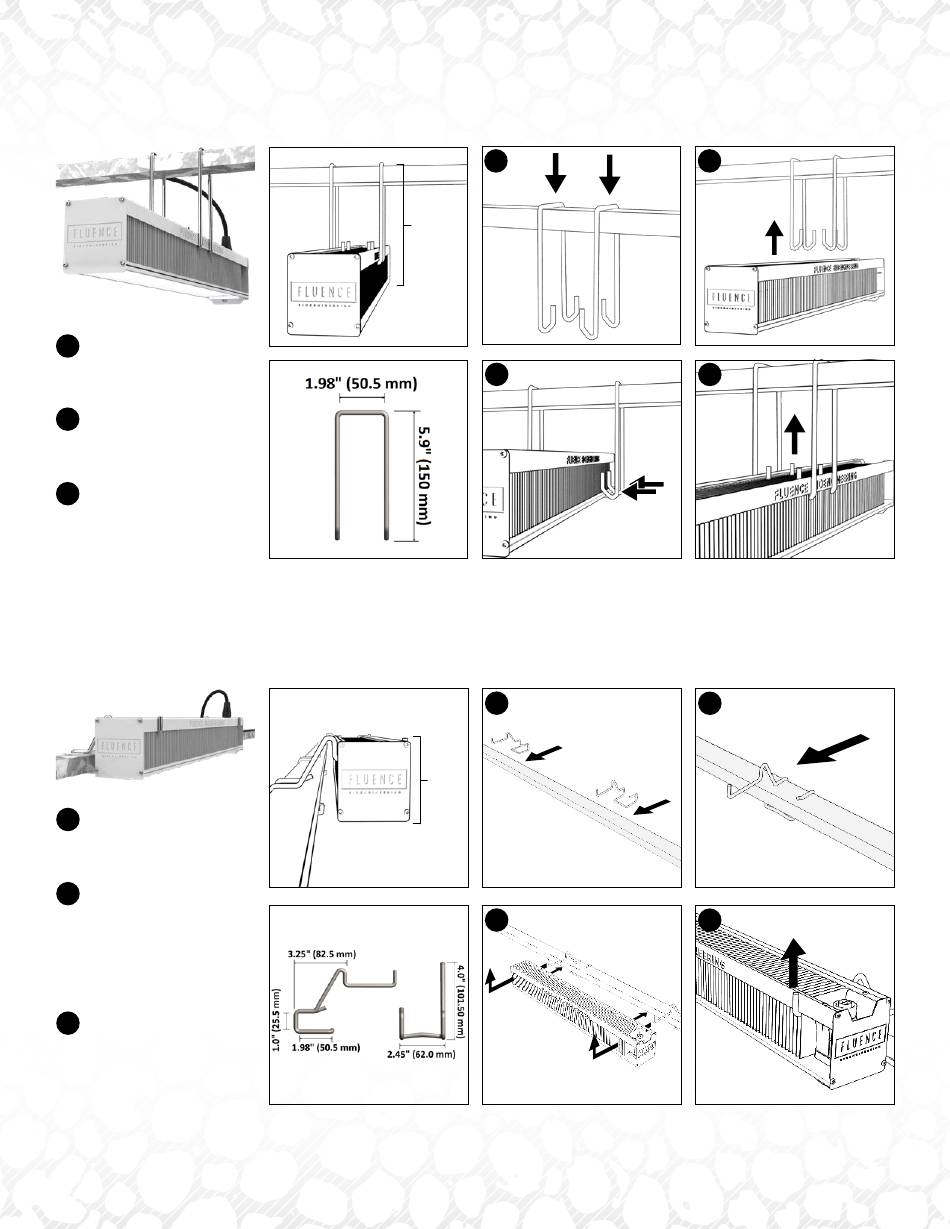

8.1 VYPR Perpendicular Mount Kit (AMV3-10572-20)
Suitable for 25 mm x 50 mm T-slotted strut.
1 Take (2) mounting hangers.
Hang both brackets over the
support structure as shown.
2
Hold the VYPR fixture up to the
hangers, perpendicular to the
support structure, as shown.
Hook the hanger ends on
3
each side onto the VYPR
fixture as shown between
the cooling fins.
8.2 VYPR Parallel Mount Kit (AMV3-10571-20)
Suitable for 25 mm x 50 mm T-slotted strut.
Take (2) mounting hangers.
1
Hang both brackets on the
support structure as shown.
Hold the VYPR fixture up
2
to the hangers, and slide
onto the brackets. Guide
the bracket arms through
the cooling fins and rest the
VYPR fixture on the arms.
3 Ensure that the bracket
arm hooks are all the way
through and secure against
the outside of the VYPR
fixture frame shown.
12
FRONT VIEW
8.38"
(213 mm)
Front View
3.3"
(84 mm)
1
3a
1a
2
2
3b
1b
3
