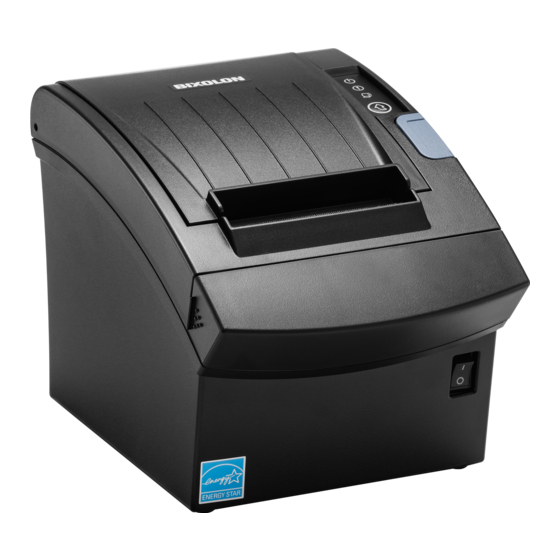

Network Connection Manual
Thermal POS Printer
Ver. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-350plusV and is the answer not in the manual?

Questions and answers

Related Manuals for BIXOLON SRP-350plusV

Summary of Contents for BIXOLON SRP-350plusV

  • Page 1 Network Connection Manual Thermal POS Printer Ver. 1.00 http://www.bixolon.com...

  • Page 2: Table Of Contents

    Network Connection Manual Table of Contents Copyright ......................... 3 1. Introduction ........................ 4 2. Precaution ........................4 3. Specification ........................ 5 4. How to Connect ......................6 4-1 Connecting Printer ......................7 4-2 Check Network Setting ....................8 4-3 Initial Wireless LAN Connection (Windows 10) ............11 4-4 Initial Wireless LAN Connection (Android Soft AP mode) ........17 4-5 Initial Wireless LAN Connection (iOS Soft AP mode) ..........18 4-6 How to change Infrastructure mode ................19...

  • Page 3: Copyright

    This user manual and all property of the product are protected under copyright law. It is strictly prohibited to copy, store, and transmit the whole or any part of the manual and any property of the product without the prior written approval of BIXOLON Co., Ltd.

  • Page 4: Introduction

    Network Connection Manual 1. Introduction This Network manual provides information on the connection of network with the Industrial Label printer. 2. Precaution 1) The printer has to be within 100m(Outdoor) from AP(Access point) to connect WLAN. Although 35m is able to communicate in door, WLAN could be affected by environment to be shorten.

  • Page 5: Specification

    Network Connection Manual 3. Specification Categories Feature Implementation Interface 10/100 Base-T All in one(Auto detection) DHCP Client, HTTP, ARP, ICMP, IPv4, TCP, Protocol Operation Mode Infrastructure, Soft AP, Ad-hoc, Wi-Fi Direct Wireless IEEE 802.11b/g/n, IEEE 802.11a/b/g/n Standard Range Up to 100m free space (Outdoor) WLAN WEP64/128 WPA1/2 - PSK...

  • Page 6: How To Connect

    Network Connection Manual 4. How to Connect Both Ethernet and WLAN can be configured through the printer’s LCD Display, USB, Ethernet or WLAN interface. When you want to change the Ethernet or WLAN of the printer, the network settings of the host(PC, PDA, etc) and Ethernet or WLAN of the printer must configured properly configured so that communication can be established.

  • Page 7: Connecting Printer

    Network Connection Manual 4-1 Connecting Printer 1) USB cable Connect USB cable to Printer, PC device. Use the “Net Configuration Tool” to adjust the settings. 2) WLAN Connect to the AP (Access Point) configured in Infrastructure mode in order to connect to the LAN/wireless network Infrastructure mode In order to configure the network between the wireless host device and the printer,...

  • Page 8: Check Network Setting

    Network Connection Manual 4-2 Check Network Setting 1) Ethernet Interface Card Function When the printer is booted, press the function button to output the network setting value. It takes about 10 seconds to apply the LAN setting after turning on the power. LAN SETTING MAC ADDRESS : 00:15:94:C2:6B:A8 IP ADDRESS...
  • Page 9 Network Connection Manual 2) On-Board Ethernet / WLAN Cover Open Button Feed Button After the printer has finished booting, open the printer cover and press and hold the FEED Button for 5 seconds. This will cause the interface setting confirmation mode. Then add the paper, close the cover, and check that the following message is printed.
  • Page 10 : 192.168.0.1 PORT : 9100 INACT. TIME <LAN 정보 출력> WLAN SETTING WLAN F/W VERSION : 02.00(3930) SYSTEM NAME : SRP-350plusV NETWORK MODE : SOFT AP FREQUENCY : (Priarity) 2.4GHz/5GHz AUTHENTICATION : OPEN ENCRYTION : NONE ESSID : PRINTER_B03223 DHCP : ENABLED IP ADDRESS : 192.168.1.1...

  • Page 11: Initial Wireless Lan Connection (Windows 10)

    Network Connection Manual 4-3 Initial Wireless LAN Connection (Windows 10) • If a wireless LAN utility program is installed, set it using the program or exit the wireless program and set it in the following orders. 1) Search the “Control Panel” and then Click the “Open”. 2) Search the “Control Panel”...
  • Page 12 Network Connection Manual 3) Click the “Change adapter settings”. Click the “WiFi Properties”. 4) Select Internet Protocol Version 4(TCP/IPv4), and then click Properties. Ver.1.00 - 12 -...
  • Page 13 Network Connection Manual 5) Set the IP settings as shown below, and then click OK. 6) Click the “Set up a new connection or network”. Ver.1.00 - 13 -...
  • Page 14 Network Connection Manual 7) Click the “Manually create a wireless network”. Ver.1.00 - 14 -...
  • Page 15 Network Connection Manual 8) ‘Network name’ = PRINTER_XXXXXX ‘Security type’ = Open, Check “Start this connection automatically”, “Connect even if the network is not broadcasting” and then click the “Next” Ver.1.00 - 15 -...
  • Page 16 Network Connection Manual 9) Click the “Close”. 10) After completing configuration, PRINTER_XXXXXX network will be created. When the printer is set to the default value (Soft-AP mode, SSID: PRINTER_XXXXXX), it will automatically connect. Ver.1.00 - 16 -...

  • Page 17: Initial Wireless Lan Connection (Android Soft Ap Mode)

    Network Connection Manual 4-4 Initial Wireless LAN Connection (Android Soft AP mode) 1) Select “Wi-Fi”. 2) Select the printer to connect 3) Select “CONNECT”. 4) Wi-Fi communication is available Ver.1.00 - 17 -...

  • Page 18: Initial Wireless Lan Connection (Ios Soft Ap Mode)

    Network Connection Manual 4-5 Initial Wireless LAN Connection (iOS Soft AP mode) 1) Select “Wi-Fi”. 2) Wi-Fi ON and Select the printer to connect 3) Wi-Fi communication is available Ver.1.00 - 18 -...

  • Page 19: How To Change Infrastructure Mode

    Network Connection Manual 4-6 How to change Infrastructure mode 1) Enter the IP address of the printer in the address bar, and the following login window will pop up. Enter the ID and Password set for the printer, and then click [LOG IN] Default User Name: admin, Password: password 2) Select “Wireless”...
  • Page 20 Network Connection Manual 3) Select “Infrastructure”, and set SSID, WLAN Security Type. 4) Reboot the Printer. For changing network setting values using Net configuration tool, Refer to ‘Net configuration tool manual’. Ver.1.00 - 20 -...

  • Page 21: Configuration

    Network Connection Manual 5. Configuration 5-1 LAN Setting Values Classification Item Remarks Input Range 0~3600 Inactivity Time TCP connection hold time integer(Sec) IP Assignment IP assignment method DHCP/Manual Method Network IP Address Printer IP IP Address Subnet Mask Subnet mask IP Address Gateway Default Gateway...

  • Page 22: Wlan Setting Values

    Network Connection Manual 5-2 WLAN Setting Values Classification Item Description Input Range WLAN setting status Home display Wireless LAN operating Network Mode Infrastructure/Adhoc mode Channel when creating Adhoc Channel 1~14 Adhoc network SSID ID of the AP to connect 1~32 letters Inactivity Time TCP connection hold time 0~3600 integer...

  • Page 23: Ethernet / Wlan Test By Using Windows Test Page

    Operating systems that allow you to use the Windows printer driver are Windows, XP, Server 2003, VISTA, 2008 Server, 7, 8, 10. You can download the latest version of Windows driver from our home page. (www.bixolon.com) 1) Double-click the Windows Driver installation file. 2) Click Install.
  • Page 24 Network Connection Manual 3) Select Installation and click Next. 4) Select Model Name and click Next. Ver.1.00 - 24 -...
  • Page 25 Network Connection Manual 5) Select Ethernet and click Add TCP/IP Port. 6) Enter the IP address and port number, and then click Next. Ver.1.00 - 25 -...
  • Page 26 Network Connection Manual 7) Click Next. 8) Click Next. Ver.1.00 - 26 -...
  • Page 27 Network Connection Manual 9) Click Next. 10) Click Finish. Ver.1.00 - 27 -...
  • Page 28 Network Connection Manual 11) Open the printer properties window in the Windows OS. (1) Installing on Windows XP / Server 2003 ※ Control Panel – Printers and Faxes. (2) Installing on Windows VISTA / Server 2008 / 7 / 8 / Server 2012 / 10 ※...
  • Page 29 Network Connection Manual 14) Click Print Test Page and check printing status. Proper installation of the driver is indicated if the test page is printed normally. Ver.1.00 - 29 -...

  • Page 30: Factory Reset

    Network Connection Manual 7. Factory Reset This function changes the LAN settings of the printer to the initial factory settings. 7-1 Initializing Ethernet Interface Setting Function With the printer turned off, press the function key button and turn the printer on. After pressing and holding the function key button for about 5 seconds, release it.

  • Page 31: Initializing Wlan Setting

    Network Connection Manual 7-2 Initializing On-Board Ethernet / WLAN Setting Cover Open Button FEED Button After the printer has finished booting, open the printer cover and press and hold the FEED Button for 5 seconds. This will cause the interface setting confirmation mode. Then add the paper, close the cover, and check that the following message is printed.
  • Page 32 Network Connection Manual If the above message is printed, select Mode 2 / 4, and you will see the following WLAN information. To select Mode 2, press the Feed button twice quickly / once long. To select Mode 4, press the Feed button four times quickly / once long. LAN(WLAN) Factory Reset OK! Reboot Printer.

  • Page 33: Troubleshooting

    Network Connection Manual 8. Troubleshooting Check network setting When using Ethernet [IP Address] Check whether the IP Address band of the printer rand the AP(or wireless terminals) are the same. The first three digits of the four digit value in the IP Address must be the same.
  • Page 34 Network Connection Manual [Authentication/Encryption] Check the authentication/encryption setting status. Check whether the settings of the printer and the AP(wireless terminals) are the same. Ver.1.00 - 34 -...
  • Page 35 Network Connection Manual PING Check Checking IP collision 1. When entering IP address manually without using DHCP, you must check whether the corresponding IP address is used by other equipment. The printer may not work normally when there is a collision in the IP address. 2.
  • Page 36 Network Connection Manual Check Cable When using Ethernet In order to check whether the problem is due to the LAN cable, connect the cable connected to the printer to other terminals or the PC to confirm whether its operation is normal.
  • Page 37 Network Connection Manual Revision History Rev. Date Description 신규제작 1.00 2022-12-07 Ver.1.00 - 37 -...
