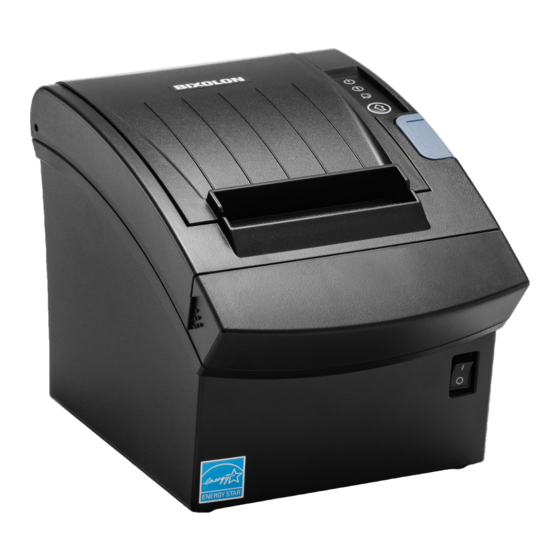

BIXOLON SRP-350V Command Manual

Thermal pos printer
Hide thumbs Also See for SRP-350V:

Advertisement

Quick Links

Download this manual
Thermal POS Printer
Command Manual
Ver. 1.00
http://www.bixolon.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRP-350V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON SRP-350V

Summary of Contents for BIXOLON SRP-350V

  • Page 1 Thermal POS Printer Command Manual Ver. 1.00 http://www.bixolon.com...

  • Page 2: Table Of Contents

    Thermal POS Printer ■ Contents 1. Notice ........................................3 2. Supported Models....................................4 3. Control Commands List in Alphanumeric Order..........................5 3-1 Command Description Items ................................7 3-2 Details of Control Commands ................................8 BIXOLON - 2 - Ver. 1.00...

  • Page 3: Notice

    BIXOLON Corporation. BIXOLON has no liability for loss or damage arising from or relating to your use of or reliance on the information in the document.

  • Page 4: Supported Models

    ➢ SRP-380II ➢ SRP-382II ➢ SRP-F310II ➢ SRP-F312II ➢ SRP-350plusIII ➢ SRP-352plusIII ➢ SRP-350plusV ➢ SRP-352plusV ➢ SRP-350III ➢ SRP-352III ➢ SRP-350V ➢ SRP-352V ➢ SRP-330II ➢ SRP-332II ➢ SRP-330III ➢ SRP-332III ➢ SRP-E300 ➢ SRP-E302 ➢ SRP-B300 ➢ SRP-Q300 ➢...

  • Page 5: Control Commands List In Alphanumeric Order

    ESC J Print and feed paper GS / Print downloaded bit image ESC L Select page mode GS : Start/end macro definition ESC M Select character font GS B Turn white/black reverse print mode on/off BIXOLON - 5 - Ver. 1.00...
  • Page 6 GS v 0 Print raster bit image GS w Set bar code width BS M Select device font type Select cut mode and executes a partial/full BS V BS ^ P Set power saving mode BIXOLON - 6 - Ver. 1.00...

  • Page 7: Command Description Items

    Range: Argument value (Setting range) for the command Default: Initial argument value for the command Description: Detailed command function description Remarks: Additional information about using the command Differences: Variations depending on the printer model BIXOLON - 7 - Ver. 1.00...

  • Page 8: Details Of Control Commands

    Remarks : ■ The horizontal tab position is set by <ESC> D. ■ With the underline mode turned on, the underline printing is not applied to the tab space created by this command. Differences: None BIXOLON - 8 - Ver. 1.00...
  • Page 9 This command prints the data in the print buffer and feeds one line based on the current set line spacing in standard mode. Remarks: ■ In page mode, the printer does not perform actual printing, but moving only the print position to the next line. Differences: None BIXOLON - 9 - Ver. 1.00...
  • Page 10 ■ This command works in page mode enabled by ESC L. ■ If the paper is positioned at the print starting position, this command is ignored, not performing actual paper feeding operation. Differences: None BIXOLON - 10 - Ver. 1.00...
  • Page 11 Print and carriage return Code: ASCII Decimal Range: None Default: None Description: This command prints the data. With auto line feed enabled, it performs printing and one line feeding same as LF. Differences: None BIXOLON - 11 - Ver. 1.00...
  • Page 12 None Default: None Description: This command clears the receive buffer and print buffers in page mode. Remarks: ■ This command is effective only in page mode that is set by ESC L. Differences: None BIXOLON - 12 - Ver. 1.00...
  • Page 13 Drawer kick-out connector pin 3 is LOW Drawer kick-out connector pin 3 is HIGH Online Offline Not used. Fixed to On Not used. Fixed to Off Not used. Fixed to Off Not used. Fixed to Off BIXOLON - 13 - Ver. 1.00...
  • Page 14 Not used. Fixed to Off No autocutter error Autocutter error occurred Not used. Fixed to On Not used. Fixed to Off Not used. Fixed to Off Not used. Fixed to Off n=4: paper sensor status BIXOLON - 14 - Ver. 1.00...
  • Page 15 ■ The status is transmitted to the host upon being requested that can check the printer operational condition with it and takes appropriate measures accordingly. ■ The real time command is stored into the receive buffer and executed with higher priority than other commands. Differences: None BIXOLON - 15 - Ver. 1.00...
  • Page 16 ■ Upon receiving this command, the printer outputs the drive pulse to the specified connector pin. ■ The real time command is stored into the receive buffer and executed with higher priority than other commands. Differences: None BIXOLON - 16 - Ver. 1.00...
  • Page 17 Remarks: ■ In a double width mode, the right space will be doubled. ■ Horizontal motion unit varies depending the printer model. Differences: Horizontal motion unit: ■ 180dpi: 0.141mm(1/180 inch) ■ 203dpi: 0.125mm(1/203 inch) BIXOLON - 17 - Ver. 1.00...
  • Page 18 ■ The entire character print width is underlined, but the space skipped by HT is not. ■ If both double width and double height are selected, the characters will be quadrupled. Differences: None BIXOLON - 18 - Ver. 1.00...
  • Page 19 ■ In page mode, the horizontal motion unit is applied when printing start poison is defined to the upper right or lower right of print area using ESC T, otherwise, the vertical motion unit is used. Differences: Horizontal motion unit: ■ 180dpi: 0.141mm(1/180 inch) ■ 203dpi: 0.125mm(1/203 inch) BIXOLON - 19 - Ver. 1.00...
  • Page 20 When n=0, the user-defined character set is deselected. • When n=1, the user-defined character set is selected. • Remarks: ■ The resident character set is enabled and used right after canceling the user defined character set. Differences: None BIXOLON - 20 - Ver. 1.00...
  • Page 21 ■ Once user defined characters are defined, they remain available until they are redefined; ESC ? or ESC @ is executed; the printer is reset. ■ The following shows the relationship between the definition data and printing result with downloaded character consisting of 9x7 dots. Differences: None BIXOLON - 21 - Ver. 1.00...
  • Page 22 (DPI) 8-dot single-density nL + nH x 256 8-dot double-density nL + nH x 256 24-dot single-density (nL + nH x 256) x 3 24-dot double-density (nL + nH x 256) x 3 BIXOLON - 22 - Ver. 1.00...
  • Page 23 203/3 203/2 nL + nH x 256 8-dot double-density 203/3 nL + nH x 256 24-dot single-density 203/2 (nL + nH x 256) x 3 24-dot double-density (nL + nH x 256) x 3 BIXOLON - 23 - Ver. 1.00...
  • Page 24 Turns on underline mode, set at 2-dot thick Remarks: ■ The spaces generated by horizontal tab are not underlined. ■ Using bit 7 of ESC !, the underline mode can be activated/deactivated as well. Differences: None BIXOLON - 24 - Ver. 1.00...
  • Page 25 ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: Default line spacing: ■ 180dpi: 4.23 mm (30 dots) ■ 203dpi: 3.75 mm(30 dots) BIXOLON - 25 - Ver. 1.00...
  • Page 26 Vertical or horizontal motion unit and maximum line spacing settable: Model Vertical unit Horizontal unit Max line spacing 180dpi 0.0705mm (1/360 inch) 0.141mm (1/180 inch) 17.98mm 203dpi 0.0625mm (1/406 inches) 0.125mm (1/203 inches) 15.937mm BIXOLON - 26 - Ver. 1.00...
  • Page 27 ■ The normal operation will be resumed by ESC @, power cycling or printer reset. ■ If LSB is activated when the printer is disabled by this command, the status is transmitted to the host at a preset interval. Differences: None BIXOLON - 27 - Ver. 1.00...
  • Page 28 This command removes user-defined character specified by character code n. Remarks: ■ In place of the deleted user-defined character, the cooresponding resident character is printed. ■ The user-defined characters for each font can be deleted independently. Differences: None BIXOLON - 28 - Ver. 1.00...
  • Page 29 ■ All of the settings such as print mode and line feed are cleared. ■ NV graphics and NV user memory are not cleared. ■ In page mode, this command removes the data in print areas, restores the initial settings and returns to standard mode. Differences: None BIXOLON - 29 - Ver. 1.00...
  • Page 30 ■ Up to 32 horizontal tabs can be set, the data exceeding this limit is processed as normal ones. ■ Even if the character width is changed after setting the horizontal tab positions, the horizontal tab positions remain unchanged. Differences: None BIXOLON - 30 - Ver. 1.00...
  • Page 31 When the LSB of n is 1, emphasized mode is turned on. • Remarks: ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 31 - Ver. 1.00...
  • Page 32 When the LSB of n is 1, emphasized mode is turned on. • Remarks: ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 32 - Ver. 1.00...
  • Page 33 ■ When used in page mode, this command moves only the print position, not executing actual printing. Differences: Vertical motion unit and maximum feed amount: Model Vertical unit Max feed amount 180dpi 0.0705mm (1/360 inch) 17.98mm 203dpi 0.0625mm (1/406 inches) 15.937mm BIXOLON - 33 - Ver. 1.00...
  • Page 34 ■ In page mode, the command, FF, prompts printing the data in the printer buffer collectively. LF, CR, ESC J, and ESC d just move the print position, not performing actual printing. Differences: None BIXOLON - 34 - Ver. 1.00...
  • Page 35 ■ The printer model has it own configuration of Font A and B. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 35 - Ver. 1.00...
  • Page 36 Denmark II Denmark I Spain II Sweden Latin America Italy Korea Remarks: ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 36 - Ver. 1.00...
  • Page 37 ■ The conditions by the following commands are defined independently in standard mode and page mode. ESC SP, ESC 2, and ESC 3 • ■ In standard mode, CAN and GS $ are ignored. Differences: None BIXOLON - 37 - Ver. 1.00...
  • Page 38 ESC 3, ESC J, GS $ the horizontal motion unit. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 38 - Ver. 1.00...
  • Page 39 ■ If set in page mode, the 90° clockwise rotation mode has effect after the printer returns to standard mode. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 39 - Ver. 1.00...
  • Page 40 Vertical starting position = [(yL + yH x 256) x (vertical motion units)] • Horizontal printing area width = [(dxL + dxH x 256) x (horizontal motion units)] • Vertical printing area width = [(dyL + dyH x 256) x (vertical motion units)] • BIXOLON - 40 - Ver. 1.00...
  • Page 41 ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: The maximum printable area(Max horizontal printable area, Max vertical printable area): Model Max horizontal printable area Max vertical printable area 180dpi 72.2mm(512dots) 234.3mm(1662dots) 203dpi 72mm(576dots) 207.75mm(1662dots) BIXOLON - 41 - Ver. 1.00...
  • Page 42 ESC T, otherwise, the vertical motion unit is used. ■ Even if the underline mode is turned on, the space skipped by this command is not printed underlined. Differences: None BIXOLON - 42 - Ver. 1.00...
  • Page 43 ■ This command is not effective in page mode. If this command is processed in page mode, the setting by this command becomes effective when the printer returns to standard mode. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 43 - Ver. 1.00...
  • Page 44 ■ In page mode, this command moves only the print position, not performing actual print. ■ If the feed amount set is beyond the maximum feed amount, the feed amount will be set to the maximum feed amount automatically. Differences: None BIXOLON - 44 - Ver. 1.00...
  • Page 45 Autocutter options can be changed via Unified Utility (MSW 5-1, MSW 5-2). ■ Printers not built in auto-cutters cannot carry this command out, and the printer does not work and displays the auto-cutter error signals on LED. BIXOLON - 45 - Ver. 1.00...
  • Page 46 Autocutter options can be changed via Unified Utility (MSW 5-1, MSW 5-2). ■ Printers not built in auto-cutters cannot carry this command out, and the printer does not work and displays the auto- cutter error signals on LED. BIXOLON - 46 - Ver. 1.00...
  • Page 47 ■ The ON time is [t1 x 2ms], and the OFF time is as [t2 x 2ms]. If t2 is smaller than t1, OFF time is set to [t1 x 2ms]. • Differences: None BIXOLON - 47 - Ver. 1.00...
  • Page 48 Page 17 866 (Cyrillic #2) Page 18 852 (Latin 2) Page 19 858 (Euro) Page 21 862 (Hebrew DOS code) Page 22 864 (Arabic) Page 23 Thai42 Page 24 1253 (Greek) Page 25 1254 (Turkish) BIXOLON - 48 - Ver. 1.00...
  • Page 49 Page 51 VISCII(Vietnamese3) Page 52 CP912(Albania) User Code Page (Space) Remarks : ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 49 - Ver. 1.00...
  • Page 50 ■ The near end senor is optional while paper end sensor required. ■ If the printer is not equipped with a near end sensor, the paper near end sensor is considered as normal condition. Differences: None BIXOLON - 50 - Ver. 1.00...
  • Page 51 ■ 180 rotated characters are printed from right to left in upside-down print mode. ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Example Normal Upside- down Mode Differences: None BIXOLON - 51 - Ver. 1.00...
  • Page 52 ■ The printer does not print the NV bit image that is beyond one line of print area. ■ When using unidirectional print mode, there will be no vertical misali gnment between the top and bottom parts of the printed pattern. BIXOLON - 52 - Ver. 1.00...
  • Page 53 Vertical Dot Density (DPI) Horizontal Dot Density (DPI) Normal Double-width Double-height Quadruple ■ 203dpi: DPI : Dots per Inch (25.4mm) Mode Vertical Dot Density (DPI) Horizontal Dot Density (DPI) Normal Double-width 203/2 Double-height 203/2 Quadruple 203/2 203/2 BIXOLON - 53 - Ver. 1.00...
  • Page 54 (xL, xH) and (yL, yH) set the number of dots in the horizontal and vertical directions to [(xL + xH × 256) x 8] and • [(yL + yH × 256) x 8] respectively for the NV bit image. BIXOLON - 54 - Ver. 1.00...
  • Page 55 ■ During the execution of this command, paper feed button, LSB and real time functions will not operate. Bit image data and print result are as follows: • dY+1 … dY+2 … dk-2 … dk-1 dY x 2 … ■ The capacity of NV memory area is 256KB. Differences: None BIXOLON - 55 - Ver. 1.00...
  • Page 56 Specifies the number of times normal font size in the Refer to Table 2 vertical direction [Enlarged in vertical direction] Specifies the number of times normal font size in the Refer to Table 1 horizontal direction [Enlarged in horizontal direction] BIXOLON - 56 - Ver. 1.00...
  • Page 57 ■ Double width and double height modes can be set by ESC !. ■ Multi-byte code characters are specified only by this command. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 57 - Ver. 1.00...
  • Page 58 With the starting position of the upper left or lower right on the print area, the vertical motion unit is used. • In other cases, the horizontal motion unit is used. • ■ The configuration beyond the print area set by ESC W is ignored. Differences: None BIXOLON - 58 - Ver. 1.00...
  • Page 59 ■ All of the data transmitted from the host to the printer is printed and identified in hexadecimal dump mode. ■ The real time command and LSB operations are not executed during the printing of printer configuration (m=2, 50). Differences: None BIXOLON - 59 - Ver. 1.00...
  • Page 60 GS ( L pL pH m fn kc1 kc2 x y Prints the specified NV graphics data GS ( L pL pH m fn a bx by c xL xH yL Stores the graphics data in the print buffer memory yH d1…dk BIXOLON - 60 - Ver. 1.00...
  • Page 61 ■ While storing data by this command, the printer is in BUSY state where receiving of data is not available. Therefore, it is not recommended to send data during this process. ■ The real time commands and LSB operations are not allowed during NV memory operation process. Differences: None BIXOLON - 61 - Ver. 1.00...
  • Page 62 ■ The data length is variable. ■ The total capacitu of the NV user memory is selectable as any one of[0, 64K, 128K, 192K, 256K] bytes with GS ( E. The default value is 256K. Differences: None BIXOLON - 62 - Ver. 1.00...
  • Page 63 ■ The graphics data is defined by Function 112. ■ The required amount of line feed pitch is used for printing graphics data, regardless of the existing setting value of the pitch. Differences: None BIXOLON - 63 - Ver. 1.00...
  • Page 64 ■ The setting value is sent from bit 8 to bit 1, consisting of 8 bytes in total. Off: Hexadecimal = 30H / Decimal = 48 • On: Hexadecimal = 31H / Decimal = 49 • Remarks: None Differences: None BIXOLON - 64 - Ver. 1.00...
  • Page 65 48 - 57 2 - 80 bytes 1 byte ■ When the key code is not present : Hexadecimal Decimal Amount of Data Header 1 byte Flag 1 byte Status 1 byte 1 byte BIXOLON - 65 - Ver. 1.00...
  • Page 66 - When the status (for the last data block) is Hexadecimal = 40H / Decimal = 64) Response Process performed ASCII Decimal Ends the process Transmits the previous data again Cancels the process. Differences: None BIXOLON - 66 - Ver. 1.00...
  • Page 67 This command removes all defined NV graphics data. Remarks : ■ The graphics data is define by Function 67 into the NV graphics memory with the sector dedicated for storing NV graphics data. Differences: None BIXOLON - 67 - Ver. 1.00...
  • Page 68 32 ≤ kc2 ≤ 126 Default: None Description : Deletes the NV graphics data defined by the codes kc1 and kc2. Remarks : ■ The graphics data is define by Function 67. Differences: None BIXOLON - 68 - Ver. 1.00...
  • Page 69 (xL + xH x 256). • yL and yH specify the number of dots in horizontal direction to (yL + yH x 256) dots. • BIXOLON - 69 - Ver. 1.00...
  • Page 70 The rest of NV graphics data groups having no change should be redefined along with the new group stored. ■ When NV graphics data groups are saved, each of the groups is allocated with N in the order of download. Differences: None BIXOLON - 70 - Ver. 1.00...
  • Page 71 ■ This command prints the NV graphics data defined by Function 67. ■ In page mode, this command is not effective. ■ NV graphics data beyond the print area for one line is not printed. Differences: None BIXOLON - 71 - Ver. 1.00...
  • Page 72 1 ≤ (xL + xH x 256) ≤ 415 (When by =2) 0 ≤ d ≤ 255 k = ( int ( ( xL + xH x 256 ) + 7 ) / 8 ) x ( yL + yH x 256 ) Default: None BIXOLON - 72 - Ver. 1.00...
  • Page 73 ■ The graphics data is stored in the printer buffer directly. ■ NV graphics data beyond the print area for one line is not printed. ■ Real time command is not effective during processing of this command. Differences: None BIXOLON - 73 - Ver. 1.00...
  • Page 74 QR CODE: Select the size of module Function 169 QR CODE: Select the error correction level Function 180 QR CODE: Store the data in the symbol storage area Function 181 QR CODE: Print the data in the symbol storage area BIXOLON - 74 - Ver. 1.00...
  • Page 75 ■ The same symbol data is repeatedly printed by executing Function 181 after performing Function 180. ■ The same symbol data is printed differently by executing Function 181 after setting the feature of the symbol by using Functions 165 through 169. Differences: None BIXOLON - 75 - Ver. 1.00...
  • Page 76 Printing area when processing Functions 081 • Module width (Function 067) • Option setting (Function 070) • ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 76 - Ver. 1.00...
  • Page 77 ■ With auto processing (n=0) specified, the number of rows is calculated by using the following information: Printing area when processing Functions 081 • Module height (Function 068) • ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 77 - Ver. 1.00...
  • Page 78 ■ The setting unit for printer models varies. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: Setting unit(1 dot): ■ 180dpi: 0.141(1/180 inch) ■ 203dpi: 0.125(1/203 inch) BIXOLON - 78 - Ver. 1.00...
  • Page 79 This command sets the module height of PDF417 to [the module width x n]. Remarks: ■ Settings of this command affect the processing of Functions 081. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 79 - Ver. 1.00...
  • Page 80 Error correction level 5 Error correction level 6 Error correction level 7 Error correction level 8 ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 80 - Ver. 1.00...
  • Page 81 ■ Settings of this function affect the processing of Functions 081. ■ When simplified PDF417 symbol is canceled, standard PDF417 symbol is automatically selected. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 81 - Ver. 1.00...
  • Page 82 The error correction codeword calculated by modulus 929. • ■ The setting of this command remains effective until the following processing is performed: Executing Function 080 • Executing ESC @ • Executing printer reset or power-off • Differences: None BIXOLON - 82 - Ver. 1.00...
  • Page 83 Indicator code word of left and right. • The descriptor of symbol length (the first code word in the data area). • The error correction code word calculated by modulus 929. • Pad codeword. • BIXOLON - 83 - Ver. 1.00...
  • Page 84 ■ The quiet zone is not included in the printing data. Be sure to include the adequate quiet zone for executing of this command. The quiet zone means the spaces surrounding the symbol such as upper, lower, left, and right spaces. • Differences: None BIXOLON - 84 - Ver. 1.00...
  • Page 85 Model 1 Model 2 Remarks: ■ The setting of this command affects <Function 181>. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 85 - Ver. 1.00...
  • Page 86 ■ Since the QR CODE module is square, n = module width = module height. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 86 - Ver. 1.00...
  • Page 87 ■ The setting of this command affects the processing of <Function 181>. ■ Reed-Solomon correction is employed to generate a series of error correction codewords. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 87 - Ver. 1.00...
  • Page 88 00H ~ FFH ■ The setting of this command remains effective until the following processing is performed: Performing Function 180 • Performing ESC @ • Performing the printer reset or power-off • Differences: None BIXOLON - 88 - Ver. 1.00...
  • Page 89 The four types of data compression modes are listed below. According to the symbol data in the data storage area, • automatically selects the best suitable compression mode. *Numeric Data Code *Alphanumeric Data mode *Kanji Data mode *8 bit Data mode BIXOLON - 89 - Ver. 1.00...
  • Page 90 ■ In page mode, the printer stores the symbol data in the print buffer without executing actual printing. ■ The quiet zone is not included in the printing data. Be sure to include the adequate quiet zone for executing of this command. Differences: None BIXOLON - 90 - Ver. 1.00...
  • Page 91 ■ The user-defined character and the downloaded bit image cannot be defined simultaneously. The user-defined character is cleared preceding the execution of this command. • The downloaded bit image data is cleared with ESC & executed. • Differences: None BIXOLON - 91 - Ver. 1.00...
  • Page 92 ■ Except for character size and upside-down printing mode, none of print mode such as emphasized, double-strike, etc, affects the printing of the downloaded bit image. ■ The default dot density set by GS L is applied to printing of the downloaded bit image. BIXOLON - 92 - Ver. 1.00...
  • Page 93 3, 51 Quadruple ■ 203dpi: DPI : Dots per Inch (25.4mm) Mode Vertical dot density(DPI) Horizontal dot density(DPI) 0, 48 Normal 1, 49 Double-width 203/2 2, 50 Double-height 203/2 3, 51 Quadruple 203/2 203/2 BIXOLON - 93 - Ver. 1.00...
  • Page 94 ■ The maximum number of macro data to be defined varies with respect to printer models. The data exceeding this limit is not stored. ■ ESC @ does not clear the existing defined macro. The macro remains effective until the printer reset and power cycling are executed. Differences: None BIXOLON - 94 - Ver. 1.00...
  • Page 95 ■ The right space defined by ESC SP is affected by this command. ■ In white/black reverse mode, the underline mode is not effective. ■ This mode remains effective until ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 95 - Ver. 1.00...
  • Page 96 Both above and below the bar code Remarks: ■ The font of the HRI characters is defined by GS f. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 96 - Ver. 1.00...
  • Page 97 • Printer ID type Specification Firmware version Firmware version Manufacturer BIXOLON Printer model Printer model Code page Currently enabled code page Remarks: ■ Printer information (When n = 65, 66, 67, 69) consist of [Header ~ NULL] data as shown below:...
  • Page 98 - 0x03 (Autocutter + Multi-byte character) 3(Printer feature ID) 0x63(when 3inch),0x62(when 2inch) 65(Firmware Version) Depend on firmware version information 66(Manufacturer) BIXOLON 67(Printer model) SRP-350plusV 69(Language of Font) Code page currently being used. Refer to cod page setting command, ESC t. BIXOLON - 98 - Ver.
  • Page 99 ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Printable area Left margin Printing area width Differences: None BIXOLON - 99 - Ver. 1.00...
  • Page 100 ■ If an auto cutter is not provided, the printer only feeds the paper for specified amount. ■ Vertical motion unit is used for calculating a paper feed amount. ■ Autocutter options can be changed via Unified Utility (MSW 5-1, MSW 5-2). Differences: None BIXOLON - 100 - Ver. 1.00...
  • Page 101 ■ When (left margin + printing area width) exceeds the printable area, the printing area width is automatically set to (printing area width - left margin). ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Printable area Left margin Printing area width Differences: None BIXOLON - 101 - Ver. 1.00...
  • Page 102 ■ The macro is defined by GS: ■ If the macro is not defined or r = 0, the command is ignored. ■ The macro function is useful to print the same data repeatedly. Differences: None BIXOLON - 102 - Ver. 1.00...
  • Page 103 ■ With serial interface, ASB status is transmitted continuously at the interval of 1 sec even if the status is not changed. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. BIXOLON - 103 -...
  • Page 104 ENQ in real time mode. If an unrecoverable error (bit 5) occurs, turn off the power as soon as possible. Third byte (paper sensor information) • BIXOLON - 104 - Ver. 1.00...
  • Page 105 Not used. Fixed to On Not used. Fixed to On Not used. Fixed to On Not used. Fixed to Off Not used. Fixed to Off Not used. Fixed to Off Not used. Fixed to Off Differences: None BIXOLON - 105 - Ver. 1.00...
  • Page 106 ■ The setting of this command is applied to only HRI characters. ■ The printing position of HRI characters are specified by GS H. ■ The configurations of Font A and B vary depending on the printer model. Differences: None BIXOLON - 106 - Ver. 1.00...
  • Page 107 ■ The unit of n depends on the printer model. ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. Differences: Unit of one dot: ■ 180dpi: 0.141mm(1/180 inch) ■ 203dpi: 0.125mm(1/203 inch) BIXOLON - 107 - Ver. 1.00...
  • Page 108 48 ≤ d ≤ 57, 65 ≤ d ≤ 90, CODE39 1 ≤ k d=32,36,37,43,45,46,47 1 ≤ k (even number) 48 ≤ d ≤ 57 48 ≤ d ≤ 57, 65 ≤ d ≤ 68, CODABAR 1 ≤ k d=36,43,45,46,47,58 For range ② BIXOLON - 108 - Ver. 1.00...
  • Page 109 ■ Except for character size and upside-down printing mode, none of print mode such as emphasized, double-strike, etc, affects the printing of the barcode. ■ The quiet zone of the bar code (left and right spaces of the bar code) should be considered when using this command. Differences: None BIXOLON - 109 - Ver. 1.00...
  • Page 110 Decimal Function Paper near end sensor: Paper adequate 0, 1 Paper near end sensor: Paper near end Paper end sensor: Paper present 2, 3 Paper end sensor: Paper not present Fixed Reserved Reserved Fixed BIXOLON - 110 - Ver. 1.00...
  • Page 111 Drawer kick-out connector pin 3 is LOW Drawer kick-out connector pin 3 is HIGH Reserved Reserved Reserved Fixed Reserved Reserved Fixed ■ This command can be executed in real-time mode using DLE. Differences: None BIXOLON - 111 - Ver. 1.00...
  • Page 112 ■ None of the print modes such as emphasized, double-strike, etc, affects the printing of the bit image. ■ The default dot density set by GS L is applied to printing of the bit image. BIXOLON - 112 - Ver. 1.00...
  • Page 113 Quadruple ■ 203dpi: DPI : Dots per Inch (25.4mm) Mode Vertical dot density (DPI) Horizontal dot density (DPI) 0, 48 Normal 1, 49 Double-width 203/2 2, 50 Double-height 203/2 3, 51 Quadruple 203/2 203/2 BIXOLON - 113 - Ver. 1.00...
  • Page 114 Multi-level bar codes (UPC-A, UPC-E, JAN13, HAN8, CODE93, CODE128) • Binary-level bar codes (CODE39, ITF, CODABAR) • ■ The setting of this command remains effective until ESC @, printer reset or power cycling is executed. BIXOLON - 114 - Ver. 1.00...
  • Page 115 ■ 203dpi: Binary-level bar code Multi-level bar code module width (mm) Thin element width (mm) Thick element width (mm) 0.250 0.250 0.625 0.375 0.375 1.000 0.500 0.500 1.250 0.625 0.625 1.625 0.750 0.750 2.000 BIXOLON - 115 - Ver. 1.00...
  • Page 116 ■ The printer supports 3 font types by selecting m function. Remarks: ■ The setting of this command remains effective until ESC !, ESC @, printer reset or power cycling is executed. Differences: None BIXOLON - 116 - Ver. 1.00...
  • Page 117 Feeds paper to (cutting position + n × vertical motion unit) and executes a partial cut (one point left uncut) ② Feeds paper to (cutting position + n × vertical motion unit) and executes a full cut (cuts the paper completely) Differences: None BIXOLON - 117 - Ver. 1.00...
  • Page 118 ■ When the printer is entered power saving mode, printer is wait external interrupt. Remarks: ■ If external interrupt is occurred, printer is wake up. Communication(Serial, Parallel, USB), Cover sensor, Feed switch. • Differences: None BIXOLON - 118 - Ver. 1.00...
  • Page 119 ■ The power saving set time is [t x 1s] and the default time is 20 sec. If n is smaller than 5 the power saving time is set to defaut [20 x 1s]. • Differences: None BIXOLON - 119 - Ver. 1.00...
  • Page 120 Transmitted data Decimal Amount of data Header 1byte Power saving mode Depends on the setting Depends on the setting 1byte Power saving time Depends on the setting Depends on the setting 1byte 1byte Differences: None BIXOLON - 120 - Ver. 1.00...
