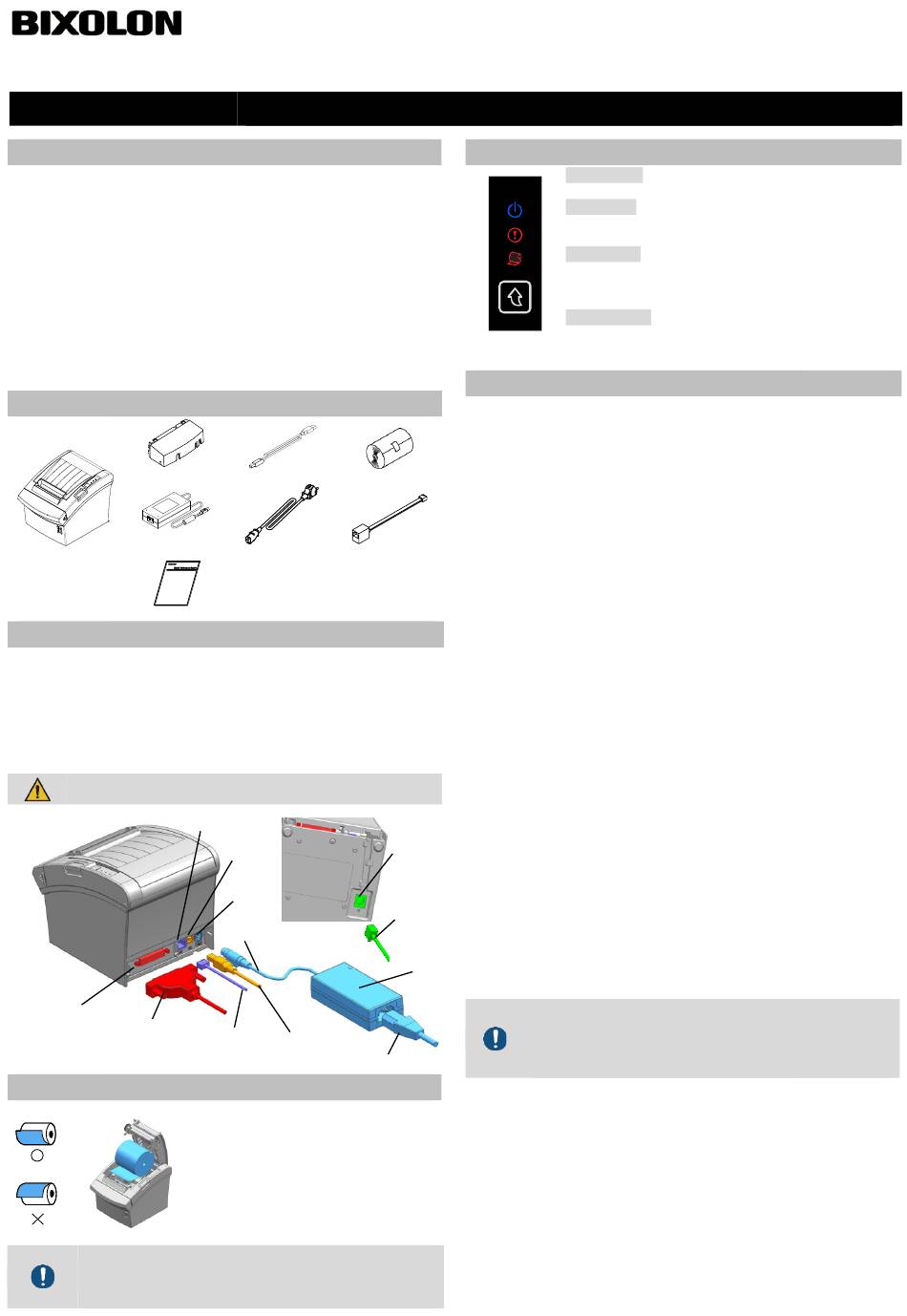

BIXOLON SRP-350plusV Installation Manual & Safety Manual

Printer Installation Guide & Safety Guide
KN04-00241A (V1.03)
◈ Information
This installation guide contains essential information required for product
installation. Please refer to the Software on the Download section of the
BIXOLON website (www.bixolon.com) for further information.
1. Manual: User's Manual, Code Table, Control Commands, Software manuals
2. Driver: Windows, OPOS, CUPS(Linux, Mac), VCOM(USB, Ethernet)
3. SDK: UPOS SDK(iOS)
4. Utility: Unified POS Utility, Net Configuration Tool, Android Utility, iOS Utility
BIXOLON maintains an ongoing effort to enhance and upgrade the functions
and quality of all its products. In following, product specifications and/or user
manual content may be changed without prior notice.
Please refer to the BIXOLON website for the addresses and phone numbers of
the company's headquarters and branch offices.
◈ Components
Cable Cover
AC/DC Adapter
SRP-350/352plusV
Installation Guide
◈ Cable Connection
1. Turn off the printer and peripheral devices.
2. Connect the power cord to the adapter and connect the adapter to the power
supply connector of the printer.
3. Check the type of the interfaces at the back of the printer (USB, Serial,
Parallel, Ethernet, Powered USB, Wireless LAN and Bluetooth) and connect
the interface cable.
4. Connect the drawer kick-out cable to the drawer kick-out port located on the
underside of the printer.
Do not use an adapter that was not supplied with the printer.
Ethernet Port
Interface port
Interface Cable
(Serial/Parallel/Powered USB/
Wireless LAN/Bluetooth)
◈ Installing Paper Roll
When closing the cover, press down on the center of the cover
to ensure that the paper is in contact with the roller. Printing
quality may not be optimum if recommended paper is not
used.
USB A-B Cable
Power Cord DK Gender
USB Port
Power Port
Power Cable
Ethernet
USB
Cable
Cable
Power Cord
1. Push the Cover Open Button to open the
Printer Cover.
2. Insert new roll paper in the correct
direction.
3. Pull the paper out slightly and close the
Printer Cover.
THERMAL PRINTER SRP-350/352plusV
◈ Using Control Panel
◈ Self-Test
The printer's functionality can be checked through the self-test. Printing
quality, ROM version, and memory switch settings can be checked through the
self-test function.
1. Check whether paper is inserted correctly.
Paper
2. Turn on the power while holding down the Feed button and the self-test
procedure will begin.
3. The printer will print out details of its current status including which version
of ROM.
4. After printing out its current status of printer, the printer will print following
lines and wait for the next step (paper light will keep blinking).
5. Press the Feed button to resume printing or hold down the button for at
least one second to change the VMSM settings.
5-1 If "Continuous "Self-Test" is selected
(1) Press the Feed button for less than one second to print the preset page.
(2) The self test ends automatically as it prints the following line and cuts
the paper.
(3) The printer goes into normal print mode upon completion of the self
test.
5-2 If "VMSM Selection" is selected
(1) The following lines will be printed when the VMSM opens.
Drawer Kick-out
Port
Drawer Kick-out
Cable
(2) Press the Feed button to run the above function.
Step 1(Select Options): press the button a number of times as shown
▶
by each menu.
Adapter
Step 2(Enter Options): hold down the button for at least one second
▶
to apply each item selected.
If a selected item is not listed above, the list of "VMSM Selection"
will be printed again. Setting the mode will be canceled if no item
is selected in Step 1.
If "0: Exit and reboot printer" is not executed, the new settings
will not be saved.
(3) Hold down the Feed button for at least 1 second to save the changes.
The following line will be printed before cutting the paper.
6. The new settings will be automatically applied when printer resets.
• Power (LED)
The Power LED is on whenever the printer is on.
• Error (LED)
Red light will be on in various error conditions such as out of
paper, cover open, etc.
• Paper (LED)
Red LED will be lit when the paper roll is running low.
The LED keeps blinking when the printer is in self-test
standby mode or macro execution standby mode.
• Feed (Button)
Press this button to feed the paper out.
Hold down this button to feed out the paper continuously.
SELECT MODES BY PRESSING FEED BUTTON.
Continuous SELF-TEST : Less than 1 second
VMSM Selection : 1 second or more
*** COMPLETED ***
** VMSM Selection **
0 : Exit and reboot printer
1 : Print current settings
2 : Set Print Density
3 : Set Print Speed
4 : Set Cutting mode
5 : Buzzer Setting
6 : Set Serial Setting
*** COMPLETED ***
