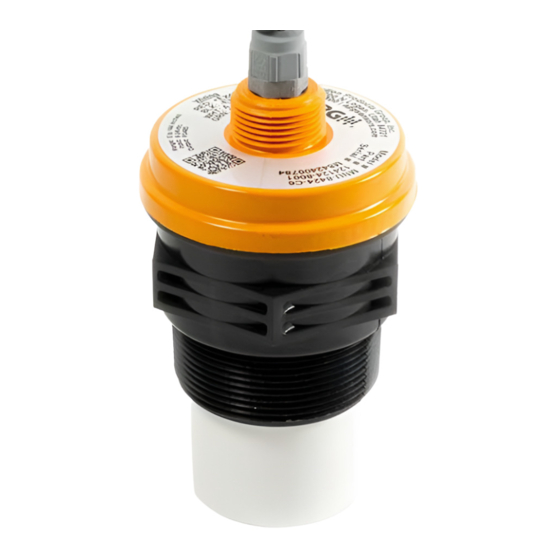

APG LPU-2428 User Manual
  1. Manuals
  2. Brands
  3. APG Manuals
  4. Security Sensors
  5. LPU-2428
  6. User manual

APG LPU-2428 User Manual

Hide thumbs Also See for LPU-2428:
Table of Contents

Advertisement

Quick Links

Download this manual
LPU-2428 & RST-4001
User Manual
APG
Doc #9002999
Rev B1, 04/15
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPU-2428 and is the answer not in the manual?

Questions and answers

Related Manuals for APG LPU-2428

Summary of Contents for APG LPU-2428

  • Page 1 LPU-2428 & RST-4001 User Manual Doc #9002999 Rev B1, 04/15...

  • Page 2: Table Of Contents

    Hazardous Location Wiring Diagram ..................43 CSA Certificate of Compliance ....................44-47  IMPORTANT: The LPU-2428 software will only operate in a 32-bit Windows environ- ment. It WILL NOT operate on a 64-bit Windows machine. Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...

  • Page 3: Introduction

    LCD display and five-button keypad or USB connection for programming your sensor. The default Application setting for the LPU-2428 is Distance, which will work in a wide variety of settings. The LPU-2428 has several additional Application settings that can be configured to meet your needs.

  • Page 4: Warranty And Warranty Restrictions

    No representation or warranty, express or implied, made by any sales representative, distributor, or other agent or representative of APG which is not specifically set forth herein shall be binding upon APG. APG shall not be liable for any incidental or consequential damages, losses or expenses directly or indirectly arising from the sale, handling, improper application or use of the goods or from any other cause relating thereto and APG’s liability hereunder, in any case, is expressly limited to the repair or replacement (at APG’s option)

  • Page 5: Chapter 1: Specifications And Options

    Chapter 1: Specifications and Options • Dimensions NON-METALLIC STRAIN RELIEF 3/4" NPT THREADS 7.25 2.65 [184.15 mm] [67.24mm] 2" NPT 5.06 THREADS [128.59 mm] ø2.79 [70.78mm] ø2.00 [50.80 mm] Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...

  • Page 6: Specifications

    • Specifications Performance Operating Range 1 - 25 ft. (0.3 - 7.6 m) on liquids and hard, flat surfaces 1 - 10 ft. (0.3 - 3 m) on bulk solids Analog Output (Sensor) 4-20 mA Analog Output (Module) Beam Pattern 9°...

  • Page 7: Chapter 2: Installation And Removal Procedures And Notes

    Chapter 2: Installation and Removal Procedures and Notes • Tools Needed Tools are not necessary for installing the LPU itself. If you are using a stand pipe to mount your LPU, you will probably need tools to install the stand pipe, but not for the LPU. •...

  • Page 8: Mounting Instructions

    • Mounting Instructions Mounting your LPU is easy if you follow a few simple steps: • Never over-tighten the sensor. • Always screw in your sensor by hand to avoid cross-threading. Thread failure can be a problem if you damage threads by over-tightening them or by crossing threads. ...

  • Page 9: Software Installation

    Chapter 3: Maintenance • General Care Your LPU-2428 ultrasonic sensor is very low maintenance and will need little care as long as it was installed correctly. However, in general, you should: • Avoid applications for which the sensor was not designed, such as extreme temperatures, contact with incompatible corrosive chemicals and fumes, or other damaging environments.

  • Page 10: Troubleshooting

    • Ensure that Blanking (Figure 4.30) is accurately set to account for any unwanted targets between the sensor and the closest acceptable target. • Ensure that the LPU-2428 software is installed in a 32-bit Windows environment. Although the software will install in a 64-bit environment, it will not operate.

  • Page 11: Repair And Returns

    • Repair and Returns Should your LPU-2428 ultrasonic sensor require service, please contact the factory via phone, email, or online chat. We will issue you a Return Material Authorization (RMA) number with instructions. • Phone: 888-525-7300 •...

  • Page 12: Rst-4001 Menu Navigation

    • RST-4001 Menu Navigation To select a menu, press the UP Arrow or DOWN Arrow button until the desired menu is displayed. Press the Right arrow to move into that menu. Then press the UP or DOWN Arrow button to move to the desired parameter.
  • Page 13 Volume APPLICAT Menu Flow - Flume APPLICAT Menu DISTANCE DISTANCE BASICSET BASICSET VOLUME FLOW LEVEL LEVEL Out Func Out Func VOLUME VOLUME FLOW FLOW LIN TABL LIN TABL SUBMERSI SUBMERSI SCTWHB Flume APPLICAT APPLICAT Flume SCTWCB Weir TankType FlowType Equation 1.00 (ft) Parshall 0.00 - 25.00...
  • Page 14 Flow - Weir APPLICAT Menu Flow - Equation APPLICAT Menu DISTANCE DISTANCE BASICSET BASICSET FLOW FLOW LEVEL LEVEL Out Func Out Func VOLUME VOLUME FLOW FLOW LIN TABL LIN TABL SUBMERSI SUBMERSI Flume Flume APPLICAT APPLICAT Weir Equation Weir Weir FlowType FlowType Equation...
  • Page 15 Submersible APPLICAT Menu DISTANCE BASICSET SUBMERSI LEVEL Out Func VOLUME FLOW LIN TABL SUBMERSI 25.00 (ft) APPLICAT 0.00 - 25.00 Depth [0.0 - 300.0] [0.000 - 7.620] [0000 - 7620] 1.00 (ft) 0.00 - 25.00 SubRange [0.0 - 300.0] [0.000 - 7.620] [0000 - 7620] 4-20 SET Menu ADVANCED Menu...

  • Page 16: Software User Interface

    • Software User Interface The LPU-2428 software user interface is one screen with five primary areas (See Figure 4.2). In the upper left are seven Menu Buttons. These buttons control the information viewed in the Display Area. Below the Menu Buttons and Display Area are six Status Boxes in two columns.

  • Page 17: Programming The Lpu-2428

    • Programming the LPU-2428 The following menus are used to program the LPU-2428 whether you use the RST-4001 alone, or in conjunction with the LPU-2428 software. As described in the RST-4001 User Interface section above, menus are navigated on the RST-4001 using the UP Arrow and DOWN Arrow, and selected with the RIGHT Arrow. In the LPU-2427 software, menus are navigated by clicking on the desired Menu Buttons on the left side of the screen.

  • Page 18: Basic Setup Menu (Basicset)

    • Basic Setup Menu (BASICSET) Figure 4.4 Menu Parameter RST-4001 Options Software Options Basic Units Default = Feet Default = Feet Setup (Units) Feet Feet Inch Inches Meters Meters Millimeters Units (Units on the RST-4001) selects the units of measurement that will be used throughout the setup process and also for display.
  • Page 19 Flow Rate (TimeUnit on the RST-4001) selects the units for flow rate measurement. TimeUnit is only displayed on the RST-4001 when Out Func is set to FLOW. Similarly, Volume Units is greyed out in the LPU-2428 software unless Application is set to Flow.

  • Page 20: App. Setup Menu (Applicat)

    305 - 7620 MM 305 - 7620 Millimeters Max Distance (Max Dist on the RST-4001) sets the maximum operating range for the LPU-2428. 25 feet is the physical limit of the LPU-2428. (See Figure 4.5) Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
  • Page 21 Figure 4.6 App/Out Func Parameter RST-4001 Options Software Options Default = 1.00 (ft) Default = 1.00 Feet Level Full Distance (Ful Dist) 0.00 - 25.00 Feet 0.00 - 25.00 Feet 0.0 - 300.0 Inch 00.0 - 300.0 Inches 0.000 - 7.620 Meters 0.000 - 7.620 Meters 000 - 7620 MM 000 - 7620 Millimeters...
  • Page 22 Figure 4.7 App/Out Func Parameter RST-4001 Options Software Options Default = SCTWHB Default = SCTWHB Volume Tank Type (TankType) SCTWCB SCTWCB Tank Type (Tank Type on the RST-4001) selects the general geometry of the tank. (See Figures 4.7-4.11) App/Out Func Parameter RST-4001 Options Software Options...
  • Page 23 Figure 4.8 App/Out Func Parameter RST-4001 Options Software Options Default = 25.00 (ft) Default = 25.00 Feet Volume Empty Distance (Emp Dist) 1.00 - 25.00 Feet 1.00 - 25.00 Feet 12.0 - 300.0 Inch 12.0 - 300.0 Inches 0.305 - 7.620 Meters 0.305 - 7.620 Meters 305 - 7620 MM 305 - 7620 Millimeters...
  • Page 24 Figure 4.9 App/Out Func Parameter RST-4001 Options Software Options Volume Radius of Hemi Default = 1.00 Default = 1.00 SCTWHB (Rad Hemi) 0.00 - 25.00 Feet 0.00 - 25.00 Feet 0.0 - 300.0 Inch 00.0 - 300.0 Inches 0.000 - 7.620 Meters 0.000 - 7.620 Meters 000 - 7620 MM 000 - 7620 Millimeters...
  • Page 25 Figure 4.10 App/Out Func Parameter RST-4001 Options Software Options Volume Cone Height Default = 1.00 Default = 1.00 SCTWCB (Cone Hei) 0.00 - 25.00 Feet 0.00 - 25.00 Feet 0.0 - 300.0 Inch 00.0 - 300.0 Inches 0.000 - 7.620 Meters 0.000 - 7.620 Meters 000 - 7620 MM 000 - 7620 Millimeters...
  • Page 26 Figure 4.11 App/Out Func Parameter RST-4001 Options Software Options Volume Tank Width Default = 1.00 Default = 1.00 (T Width) 0.00 - 25.00 Feet 0.00 - 25.00 Feet 0.0 - 300.0 Inch 00.0 - 300.0 Inches 0.000 - 7.620 Meters 0.000 - 7.620 Meters 000 - 7620 MM 000 - 7620 Millimeters...
  • Page 27 App/Out Func Parameter RST-4001 Options Software Options Volume Chute Width Default = 1.00 Default = 1.00 (C Width) 0.00 - 25.00 Feet 0.00 - 25.00 Feet 0.0 - 300.0 Inch 00.0 - 300.0 Inches 0.000 - 7.620 Meters 0.000 - 7.620 Meters 000 - 7620 MM 000 - 7620 Millimeters Chute Width (C Width on the RST-4001) sets the width of a chute under a rectangular (SRT) tank.
  • Page 28 Figure 4.12 Figure 4.13 Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
  • Page 29 Figure 4.14 App/Out Func Parameter RST-4001 Options Software Options Default = 1 Default = Q=KH Equation Equation (Equation) Q=KH Q=KLH Q=K[L-XH]H Q=K[B-A/D] Equation (Equation on the RST-4001) selects the equation that best models the flow being monitored. (See Figure 4.19-4.22) App/Out Func Parameter...
  • Page 30 Figure 4.15 Figure 4.16 Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
  • Page 31 Figure 4.17 App/Out Func Parameter RST-4001 Options Software Options Flow Zero Flow Default = 1.00 Default = 1.00 (ZeroFlow) 0.00 - 25.00 Feet 0.00 - 25.00 Feet 0.0 - 300.0 Inch 00.0 - 300.0 Inches 0.000 - 7.620 Meters 0.000 - 7.620 Meters 000 - 7620 MM 000 - 7620 Millimeters Zero Flow (ZeroFlow on the RST-4001) sets the distance from the sensor to the level of minimum flow.
  • Page 32 Figure 4.18 Figure 4.19 Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
  • Page 33 Figure 4.20 App/Out Func Parameter RST-4001 Options Software Options Flow Exponent n / n1 Default = 1.00 Default = varies (n / N1) Exponent n or n1 (n or N1 on the RST-4001) sets the value of the (first) exponent for the channel being monitored.
  • Page 34 Figure 4.21 Figure 4.22 Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
  • Page 35 App/Out Func Parameter RST-4001 Options Software Options Flow - Flume Throat Width Default = 1.00 Default = 1.00 Cut Throat (Throat W) 0.00 - 25.00 Feet 0.00 - 25.00 Feet 0.0 - 300.0 Inch 00.0 - 300.0 Inches 0.000 - 7.620 Meters 0.000 - 7.620 Meters 000 - 7620 MM 000 - 7620 Millimeters...
  • Page 36 App/Out Func Parameter RST-4001 Options Software Options Flow - Eq Constant D Default = 1.000 Default = 10.000 Q=K[B-A/D] (Diameter) 0 - 10e308 Constant D (Diameter on the RST-4001) sets the value of the D constant in the flow equation Q=K[B-A/D] Diameter can be set using the RST-4001, but can only be adjusted by 0.001 increments using the UP and DOWN arrows.
  • Page 37 Figure 4.23 Figure 4.24 Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...

  • Page 38: Setup Menu (4-20 Set)

    Transducer PSI to Milliamp Chart 0-5 PSI milliamp Feet 0-10 PSI milliamp Feet 0-15 PSI milliamp Feet 0-100 PSI milliamp Feet 11.6 10.4 23.1 13.6 34.7 16.8 10.4 46.2 20.0 11.6 12.0 11.6 11.6 57.8 13.6 13.9 10.4 13.9 69.3 15.2 16.2 11.5...
  • Page 39 Figure 4.26 Menu Parameter RST-4001 Options Software Options Default = 3.8 MA Default = Hold 4-20 Fail Safe Setup (FailSafe) 3.8 MA Hold 22 MA 3.8 mA Hold 22mA Fail Safe (FailSafe on the RST-4001) sets the output condition that the sensor will revert to in the event of a loss of echo condition.

  • Page 40: Calibration (Calibrat)

    20 ma 20 ma 4 ma 4 ma Zero 20mA Max. Zero 20mA Max. Point Setpoint Setpoint Distance Point Setpoint Setpoint Distance Figure 4.27 Figure 4.28 • Calibration (CALIBRAT) Menu Parameter RST-4001 Options Software Options Calib. Min mA Value Default = 4.00 Default = 4.00 (MinMaVal) 4.00 - MaxMaVal...

  • Page 41: Advanced (Advanced)

    Figure 4.29 • Advanced (ADVANCED) Menu Parameter RST-4001 Options Software Options Default = ON Default = ON Advncd Temp. Comp. (TempComp) ON / OFF ON / OFF Temperature Compensation (TempComp on the RST-4001) activates or deactivates the internal temperature compensation circuit. The speed of sound changes with changes in temperature, therefore changes in temperature can affect distance measurements.
  • Page 42 Figure 4.30 Menu Parameter RST-4001 Options Software Options Default = 85% Default = 100% Advncd Sensitivity (Sensitiv) 0 - 100% 0 - 100% Sensitivity (Sensitiv on the RST-4001) sets the amount of gain applied to the recieved signal. For gain control settings Auto Sense, Hard Target, and Soft Target, this setting limits the maximum gain applied by the sensor.

  • Page 43: Utilities (Utilitie)

    Menu Parameter RST-4001 Options Software Options Default = 1.00 (ft) Default = 1.00 (ft) Advncd Blanking (Blanking) 0.00 - 25.00 Feet 1.00 - 25.00 Feet 0.0 - 300.0 Inch 12.0 - 300.0 Inches 0.000 - 7.620 Meters 0.305 - 7.620 Meters 0000 - 7620 MM 305 - 7620 Millimeters Blanking (Blanking on the RST-4001) sets the Blanking distance, which is the zone from the sensor to a point...
  • Page 44 Figure 4.31 Menu Parameter RST-4001 Options Software Options Default = No Reset Default = No Reset Utilities Reset (Reset) No Reset No Reset Sensor Sensor Reset Total Reset (Reset on the RST-4001) resets the sensor to factory defaults. The Total option on the RST-4001 resets the resetable totalizer.

  • Page 45: Totalization (Totalize)

    • Totalization (TOTALIZE) Figure 4.32 Menu Parameter RST-4001 Options Software Options Flow Totalization Tot Rese Totalization (TOTALIZE) Tot NonR Totelization NO Reset ------ Reset Totalization (TOTALIZE on the RST-4001) is a submenu available only when Flow is the selected Application/ OutFunc.

  • Page 46: Chapter 5: Hazardous Location Drawing And Certification

    Chapter 5: Hazardous Location Drawings and Certification • Intrinsically Safe Wiring Diagram Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...

  • Page 47: Hazardous Location Wiring Diagram

    • Hazardous Location Wiring Diagram Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...

  • Page 48: Csa Certificate Of Compliance

    • CSA Certificate of Compliance C ertificate of C ompliance C ertificate : (@(()*) M aster C ontract : '7)*+* P roject : D ate I ssued : '7+5.5* 0 "% '@& '.(( I ssued to : A utomation P roducts G roup I nc 1025 W est 1700 N orth L ogan , UT 84321 A ttention : K arl R eid...
  • Page 49 C ertificate : M aster C ontract : (@(()*) '7)*+* P roject : '7+5.5* D ate I ssued : 0 "% '@& '.(( CLASS 2258 04 - PROCESS CONTROL EQUIPMENT - I ntrinsically S afe , E ntity - F or H azardous L ocations CLASS 2258 84 - PROCESS CONTROL EQUIPMENT - I ntrinsically S afe , E ntity - F or H azardous L ocations - C ertified to US S tandards...
  • Page 50 C ertificate : M aster C ontract : (@(()*) '7)*+* P roject : '7+5.5* D ate I ssued : 0 "% '@& '.(( 0C0 !   ('6('6.( '..)  " # ":# %# ! " % E " /# ! $ # " %   &...
  • Page 51 C ertificate : M aster C ontract : (@(()*) '7)*+* P roject : '7+5.5* D ate I ssued : 0 "% '@& '.(( J  ! #  # "# %!  " #  & ! #   L #$# # # " ! %% !"  "...
  • Page 52 Automation Products Group, Inc. Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
