PEERLESS JMWS 30 Installation And Assembly

Installation and Assembly - Jumbo Shelf Models: JMWS 30, JMWS 30S,
JMWS 30, JMWS 30S
JMWS 35, JMWS 35S
IMPORTANT! Read entire instruction sheet before
you start installation and assembly.

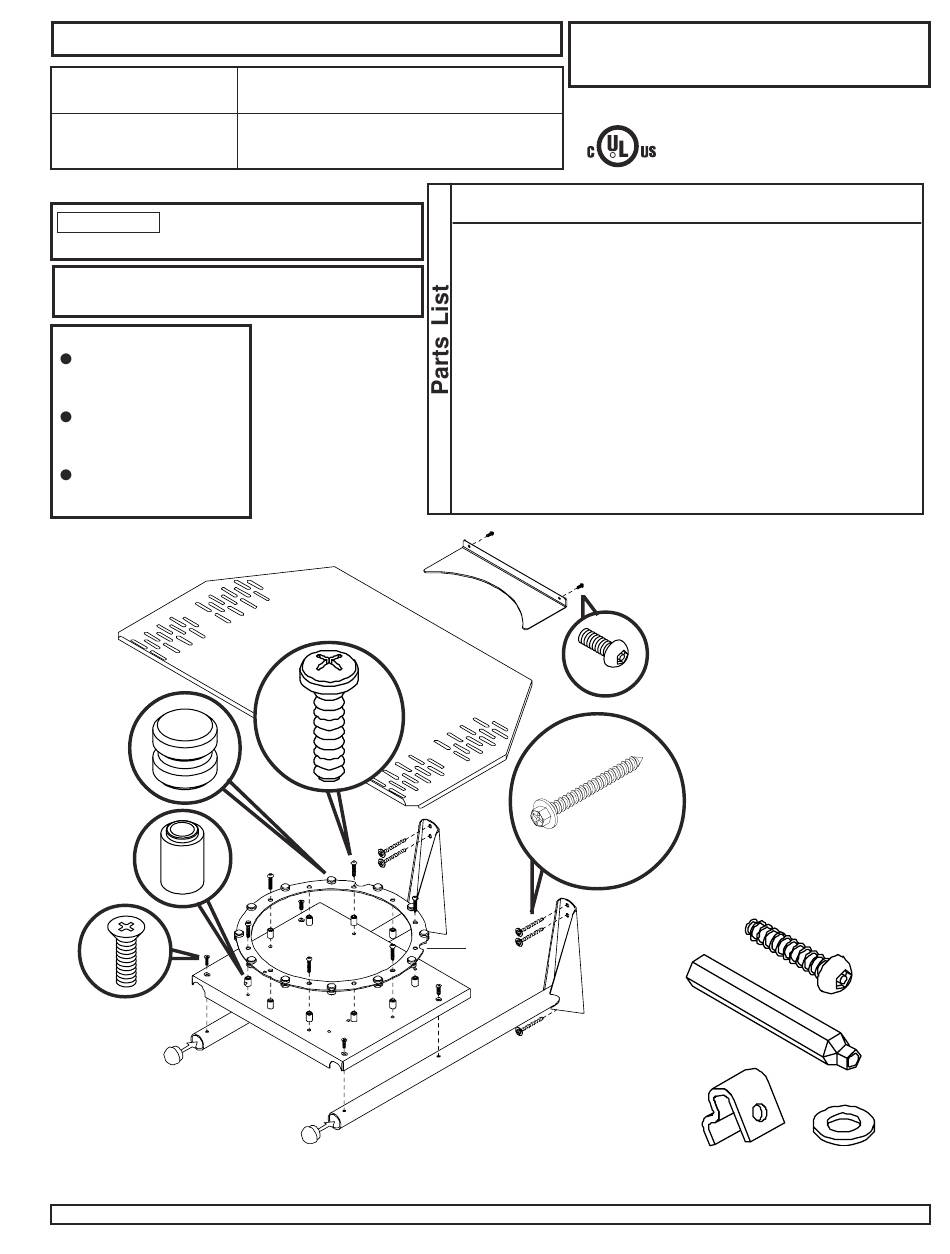

Before you start make sure all parts shown below
are included with your product.
Available Accessories:
Concrete Anchor Kit
model ACC 203 (two
required)
VCR Mount models
VPM40-N, VPM40-NS,
SVPM40-N, SVPM40-NS
Safety Belt model
ACC 666
J
K
L
E
Visit the Peerless Web Site at www.peerlessindustries.com
Product is UL rated up to 32" TV, 250 lbs.
Product is UL rated up to 36" TV, 250 lbs.
A
I
E
R
BLACK SILVER
PART # PART#
A 095-1021 095-4021
095-1022 095-4022
B 046-1002 046-4002
C 128-1092 128-4092
D 124-1533 124-4533
E 590-1021 590-4014
F 046-1001 046-4001
G 505-9010 500-2001
H 5S1-015-C03 5S1-015-C04
I 510-9110 510-9164
J 590-1037 590-2037
K 590-1036 590-2036
L 520-1048 520-2048
M 520-9249 520-9249
N 2245-081 2245-081S
O 520-9258 520-9281
P 540-9400 540-9442
Note: Some parts may appear slightly different than illustrated.
B
G
H
C
F
C
D
1 of 5
ISSUED: 7-8-98 SHEET #: 128-9017-4 08-19-04
For customer service call 1-800-729-0307 or 708-865-8870.
JMWS 35, JMWS 35S
This product is intended for use with UL Listed
products and must be installed by a qualified
professional installer.
QTY. DESCRIPTION
1 support tray (model JMWS 30)
1 support tray (model JMWS 35)
1 back clamp
2 wall arm
1 cross plate
2 end cap
1 base ring
6 M5 x .8 x 10 mm penta-pin screw
6 #14 x 2.5" (6 mm x 65 mm) screw
6 1/4-20 x 1" phillips screw
12 glide
12 spacer
4 M6 x 1 x 20 mm phillips screw
1 penta-pin driver
4 uni-clip
4 #10 x 3/4" penta-pin screw
4 flat washer
O
M
N
P
