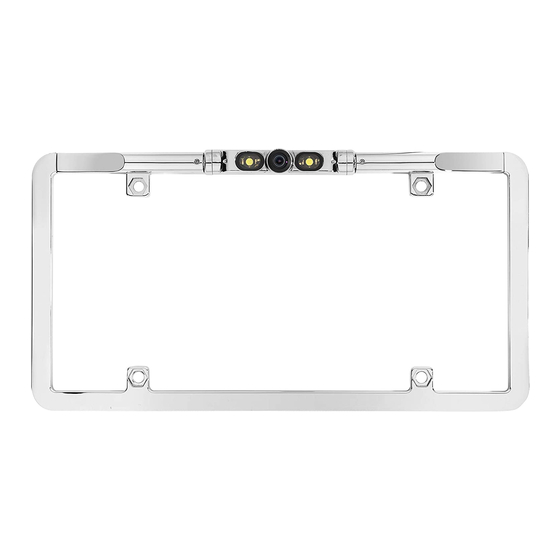

- Page 1 VTL275HDL VTL375HDL VTL405HDL VTL425HDL 130528-1...
- Page 2 Before Use/ Installation Procedure NOTE WARNING • This product is a rear view camera for checking the view at the rear of a car. • Installation and wiring of this product require specialist skill and experience. • This product is designed to supplement the driver’s rear view, but the camera images To assure your safety, please request a specialist technician to install the unit.
-
Page 3: Table Of Contents
Table of contents Rear View Camera INSTRUCTION MANUAL 1. Package ------------------------------------------------------------ 5 2. Recommended Installation Position --------------------- 6~7 * Model □ VTL275HDL □ VTL375HDL □ VTL405HDL □ VTL425HDL Please read this manual carefully before installation and operation of the product. -
Page 4: Recommended Installation Position
2. Recommended Installation Position 2. Recommended Installation Position 2-1 Examples of correct camera installation 2-2 Installing the Switch Unit 1. Clean the switch unit installation surface. Using a commercially available cleaner, wipe dirt, moisture and oil away from the surface on which the switch unit is to be attached. 2. -
Page 5: Wire Connections
3. Wire Connections 4. Camera Setting 4-1. Switch Unit Operation The switch unit can be used to switch the image display mode, view/hide the guideline display and adjust the camera. Video cord 4-2. Preparation Before Camera Setting 1. Stop the vehicle. In a parking space with white lines and tire stoppers, park the vehicle in the center of the white line frame. -
Page 6: How To Use Remote Controller
5. How to use remote controller 5. How to use remote controller (LDC On) : Factory default. STEP5.(Mirror On / Off): Factory Default or ==> Press LEFT STEP6.(Parking line On / Off) ==> Press RIGHT STEP1.(Split view left / right) ==> Press SET STEP2.(LDC + RIGHT view) ==>... -
Page 7: Dimension(Inch)
6. Dimension(inch) 6. Dimension(inch) -
Page 8: Specification
7. Specification MEMO Model VTL275HDL,VTL375HDL,VTL405HDL,VTL425HDL DC12V(Tolerence : 9VDC-16VDC Power source 70mA(LED Off), 580mA(LED On) Image sensor 1/3 progressive scan CMOS SENSOR Total Pixel 1280(H) x 960(V) Effective Pixels 720(H) x 480(V) Scanning system Progressive scan Resolution More than 1000TV S/N Ratio 50dB(AGC OFF) Min.Illumination... - Page 9 MEMO MEMO...
- Page 10 MEMO MEMO...
- Page 11 MEMO MEMO...
