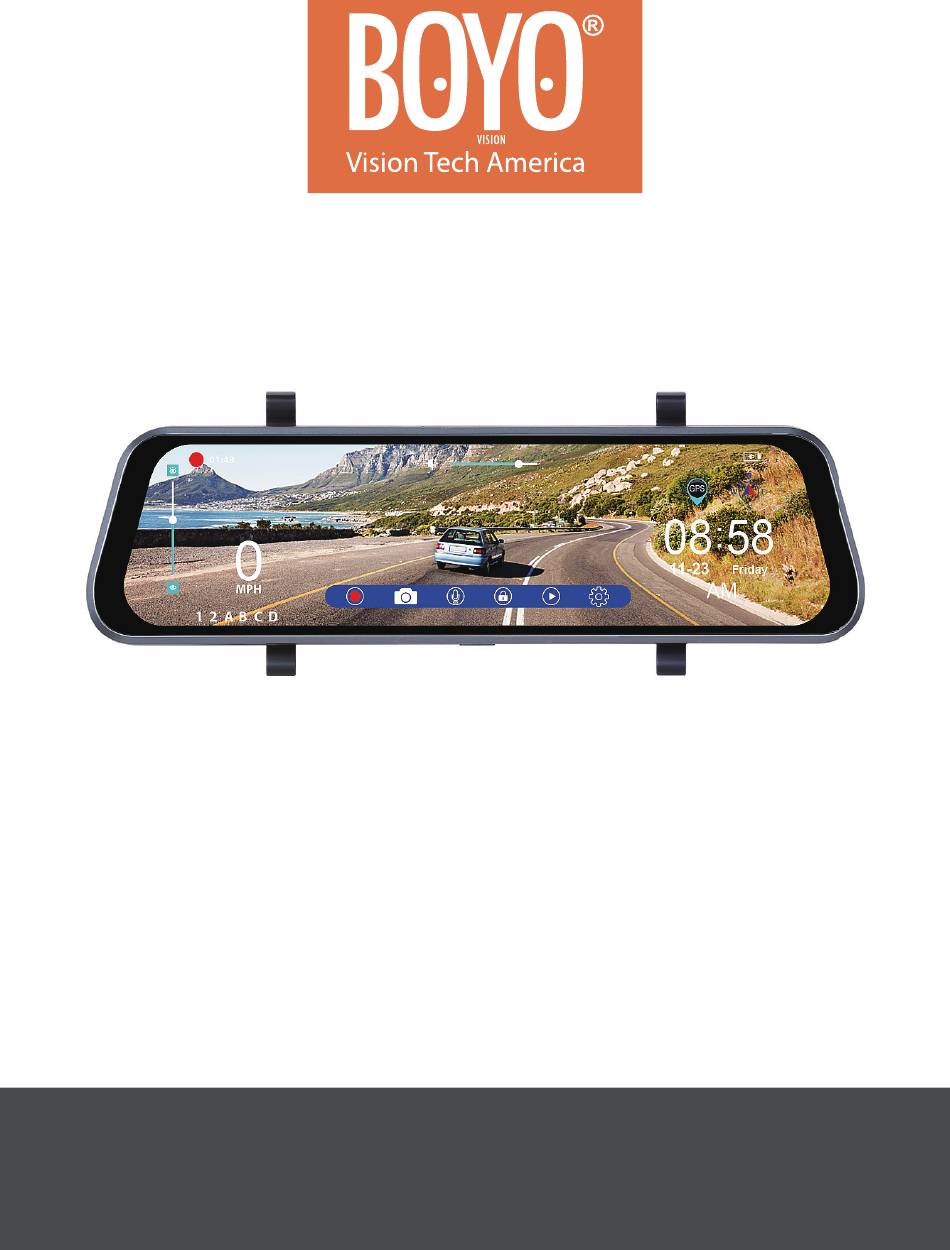

- Page 1 VTr93M Streaming Media Rear-View Mirror Monitor USER MANUAL...
- Page 3 ● The battery life-span will continuously decrease upon usage. Please charge the battery once every month to preserve the battery life. ● Please do not use the VTR93M in a wet environment as the mirror monitor is not waterproof or water resistant.
- Page 4 VTR93M Streaming Media Rear-View Mirror Monitor ● Please handle the VTR93M with care. Avoid using the VTR93M in a high electromagnetic environment. ● Operating temperature of the VTR93M is -4°F to 140°F. Continuous exposure to sunlight, especially when the VTR93M is mounted in a vehicle where the temperature exceeds above 158°F, the VTR93M may...
-
Page 5: Product Structure
VTR93M Streaming Media Rear-View Mirror Monitor 1. Product Structure 1 2 3 4 AV-IN RESET USB power input RESET button AV-IN rear camera input Speaker Micro SD Card slot Front Camera GPS antenna input LCD Screen Back strap mounting hook... -
Page 6: Power Function
Note: In low battery state, the VTR93M displays ‘Low Battery’ and will automatically saves the current file and shuts down. 11-23 Friday B. Function Keys VTR93M will enter into the main interface after it is powered on. (As shown below) 01:48 08 58 11-23... - Page 7 Click it again, the VTR93M stops recording and the disappears off the screen. Photo key: Click the key to take a photo with sounds prompt in the standby or video mode.
-
Page 8: File Management
Window adjustment bar of rear camera: The icon appears after 11-23 Friday the VTR93M is powered on and connects with rear camera. Click on the top or bottom position of the adjustment bar to adjust the viewing position of rear camera’s image on the screen, this allows the users to focus on the appropriate area behind the vehicle. -
Page 9: System Setting
11-23 Friday 1 2 A B C D VTR93M Streaming Media Rear-View Mirror Monitor 2. Click the play icon in the middle window to play the video. (As shown below) 08 59 VID_007.MOV 06 60 1080P 1920x1080 11-23 Friday 11-23... -
Page 10: Parking Monitor
Go to vehicle license plate number in the setting menu to input the license plate number. I. GPS Tracking 1. As soon as GPS antenna is connected to the VTR93M and detects a signal, the GPS icon will appear on the right of screen, when the VTR93M locates GPS successfully, the driving speed and compass direction can be viewed on the screen. - Page 11 VTR93M may not receive GPS signal indoors. J. USB Mode (USB cable not included) Connect the USB cable to the computer, the VTR93M will automatically pop up the USB menu. There are three different modes to choose from: 1. Memory Mode In this mode, you can access video files and photo files.
-
Page 12: Specifications
VTR93M Streaming Media Rear-View Mirror Monitor 3. Specifications Specifications may change without prior notice. Screen 9.35” full touch screen display 1920*1080P or 1280*720P (front cam); Video Resolution 1280*720P (rearview cam) 170° diagonal for front camera; 120° Cameras diagonal for rearview camera... - Page 13 VTR93M Streaming Media Rear-View Mirror Monitor 4. Accessories Mirror Monitor/Front Camera Rearview Camera Mounting Straps Vehicle USB Charger GPS Antenna User Manual...
