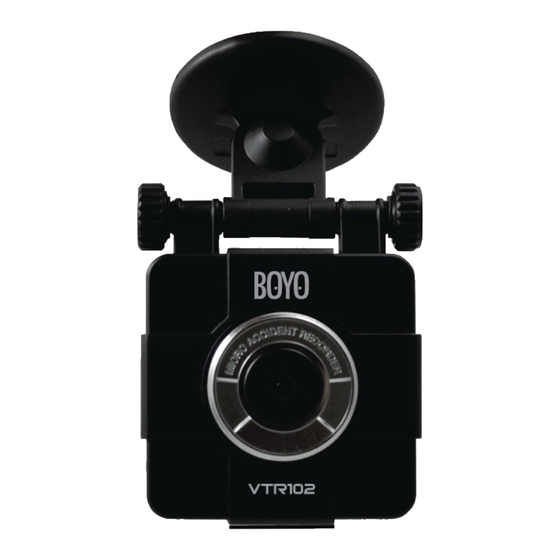

- Page 1 C A R B L A C K B O X Model- VTR102 User Manual Read carefully before using the device...
-
Page 2: Name Of Each Part
1. Name of each part Metal plate Direction control knob Direction (right/left) control stand attached here (up/down, right/left) Knob (up/down, right/left) Power input port Power microSD card switch slot Video output port Recording Microphone status LED 2. Features 2.0M pixels CMOS digital sensor Recording resolution 720x480 D1 level G-sensor built-in Video recording : mpeg4... -
Page 3: Installation
3. Installation Take off the adhesive tape from the magnetic holder. Attach the magnetic holder on the windshield of the car. Also attach the metal plate on the device. Note - Magnetic holder is optional and may not come with it, depending on countries. If it does not come in the package, take off the adhesive tape from the device and attach it on the windshield of the car directly... -
Page 4: How To Work
- If SD card is full, firstly saved files are automatically deleted in order so it keeps saving the newly recorded files. (max. 4hours / 4GB) - In case of turning the power switch off or the power off the car, VTR102 saves a last recording file. And the operation stops by the cut of inner power. -
Page 5: Time Setting
5. Normal recording, Event recording folder 1) Normal and Event recording folder is made on the top folder of SD card. 2) Normal recording folder : Saving the recorded file in general. - Folder is created with recording start date in "Normal Recording" folder. If the SD card has no longer the free space, firstly saved files are automatically deleted in order so it keeps saving the newly recorded files - File name : REC_2010_03_12_10_40_14.avi (Max 2,000 files) - Page 6 3) After insertion of micro SD card to PC, copy and paste [data_Time.cfg] file into [setting] folder of micro SD card. Copy 4)After inserting of microSD card to VTR102, turn on the power switch. And Time is automatically set in the time of [data_Time.cfg]. And the file is automatically deleted. 7.LED operation - LED displays the recording status.
- Page 7 After lighting, blinking 2 times Starting event recording every 0.5sec Blinking approx. 10 secs every In upgrade 0.25sec 8. OSD VTR102 is saving the OSD information simultaneously with video data. - The information of OSD is date and time. Recording date Recording time...
-
Page 8: Specifications
9. Specifications Power DC 12V Power Consumption 170mA Working Temperature Range -20℃ ~ 60℃ 2.0M Pixels, ⅓” CMOS Video Element Compression Format D1(720 x 480), MPEG4 Audio Format AAC (Advanced Audio Codec) Recording Storage microSD card (4GB) External Output Video Output G-sensor 3 axis(X, Y, Z) sensor Dimension... - Page 9 1. Installation of VLC media player 1) Insert CD into your computer and double click VLC media player. 2) Click [Next>], click [I Agree].
- Page 10 3) “ Choose “Minimum" at the [Select type of the install]. (User can change the install type.) Click [Next>]. After selecting the folder to install, click the [Install], and then click the [Finish], installation is completed.
- Page 11 2. How to use a basic VLC media player 10 11 12 13 [ 1 ]: Recorded file name/title indicate line [ 2 ]: Basic Menu collection [ 3 ]: Playback pictures [ 4 ]: Playback button (slow) [ 5 ]: Playback status bar [ 6 ]: Playback button (fast) [ 7 ]: Button Play/Pause [ 8 ]: Previous playback button...
- Page 12 3. Notice in playback of VLC media player 1) Install the VTR102 as the following picture. Correct stall Correct view 2) Install the VTR102 as the following picture, the recorded video file plays upside down. Upside down install Upside down view In case of the recorded file is upside down, you can rotate it, according to the following setup.
- Page 13 Select [Video Effects] on the menu bar. Check “Transform” and choose “Rotate by 180 degrees” “Rotate by 180 degrees” Click the “Close” and exit from [adjustment & effects]. You can see right view.. VLC media player : www.videolan.org BOYO SENSORS BACK UP SENSOR SYSTEMS...
