FrSky TW R6 Instruction Manual

Introduction

TWIN series TW R6 receiver features a new stable TW protocol that benefits from simultaneously integrating dual
active 2.4G frequency bands. The TW active-active protocol is different from the general active-standby
redundancy solutions (where one receiver takes over signal control only when the other is in Failsafe mode), with
the TW protocol, dual 2.4G frequency bands are active on the TW series receiver at the same time. This receiver
is designed for RC users who want to benefit from resilience and long-range in their radio communications,
typically up to tens of kilometers is achievable.

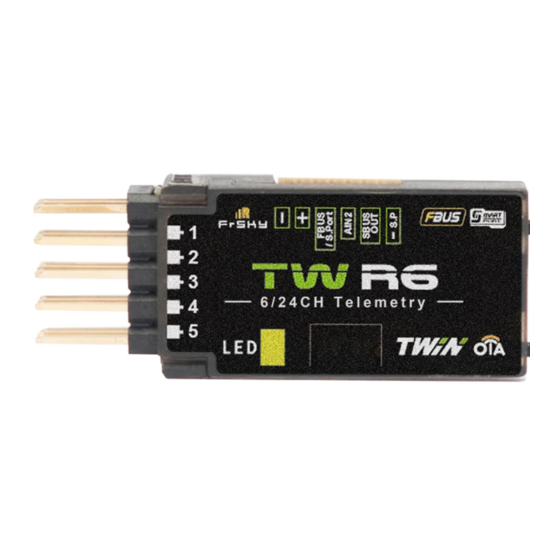

The TW R6 receiver is equipped with 2x 2.4G antennas. The signal output ports include one SBUS output
channel and 6 PWM output channel ports. It also supports telemetry functions through FBUS / S.Port. By setting
the TW R6 to use FBUS protocol in the ETHOS system, the signal control and telemetry can be connected to any
device that supports FBUS protocol through only one line to achieve bidirectional transmission, also simplifying
the model build using fewer wires. In addition to all this, the inverted S.Port on the receiver can allow for easily
connecting flight controllers.
In addition, TW R6 also supports 4ms race mode with ultra-low latency. When combining race mode with TW
series resilient dual 2.4G solution, racers have a fast, stable, and reliable signal in racing competitions, without
fear of signal loss due to interference.

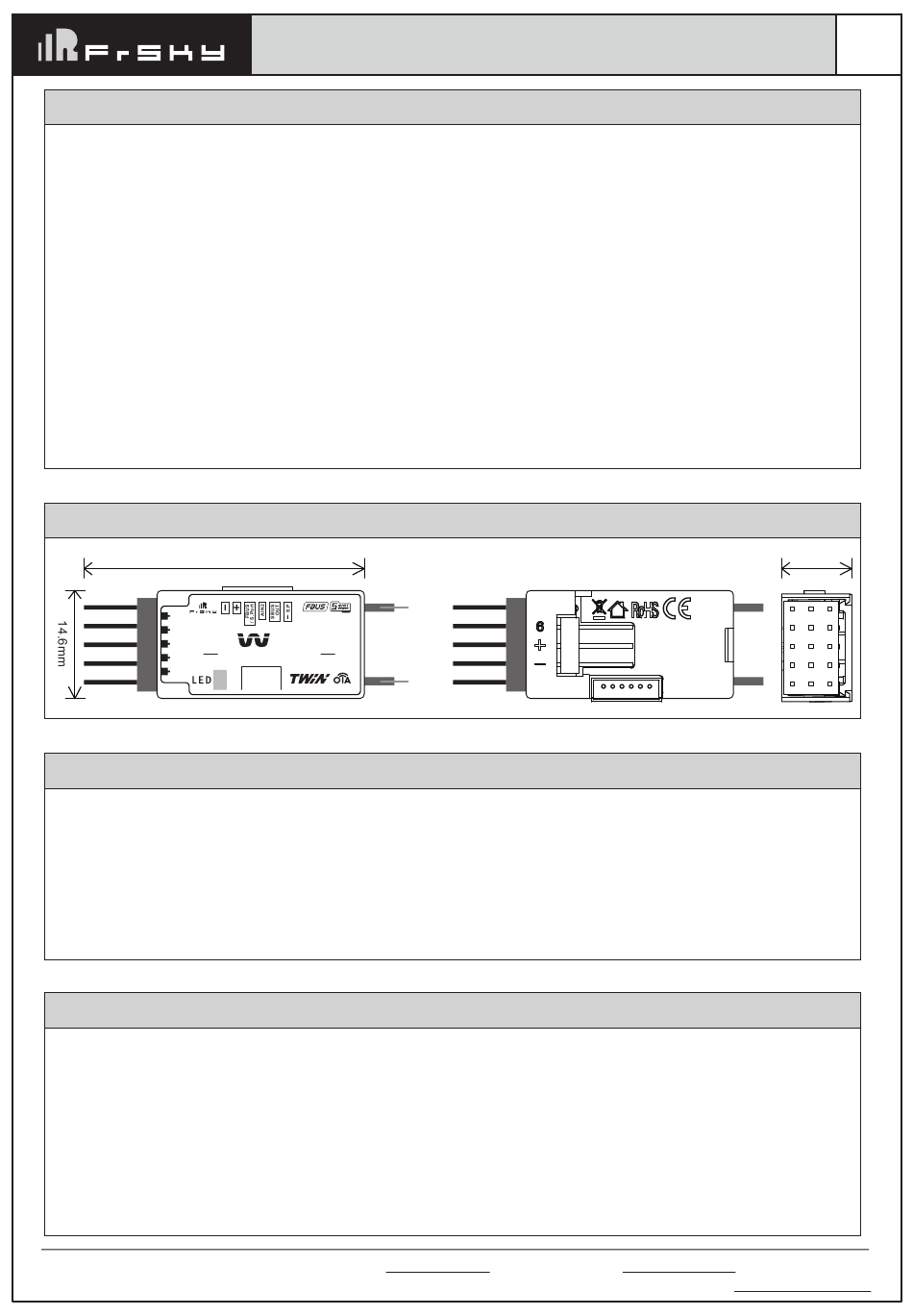

Overview

38.1mm
1
2
3
4
5

Specifications

● Frequency: Dual 2.4GHz
● Dimension: 38.1*14.6*9.5mm (L*W*H)
● Weight: 5g
● Operating Voltage: 3.5-10V (Please ensure the supplied voltage exceeds 2.8V during the use.)
● Operating Current: 60mA@5V
● Voltage Measurement Range via AIN2 (External device): 0-36V
● Antenna connector: IPEX4
● Compatibility: TWIN series Radio & RF module in TW mode.

Features

● Simultaneous working dual 2.4G TW mode
● High-precision variometer sensor
● Black-Box function
● 4ms race mode with telemetry
● Long control range (Range varies based on the RF Power settings.)
● Over-The-Air (OTA) FW update
● 6 PWM channel ports
● SBUS Out (Supports 16CH / 24CH mode)
● FBUS / S.Port
● Inverted S.Port
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky TW R6 Receiver
T R6
6 / 2 4 C H T e l e m e t r y
www.frsky-rc.com
LoRa
FSK
Contact us : frsky@frsky-rc.com
Version
1.0
9.5mm
