Isl85009Eval1Z Evaluation Board User Guide
Description
The
ISL85009
is a 3.8V to 18V input, 9A synchronous buck
regulator for applications with input voltage from multi-cell
batteries or regulated 5V and 12V power rails. The device also
provides an integrated bootstrap diode for the high-side gate
driver to reduce the external parts count. The

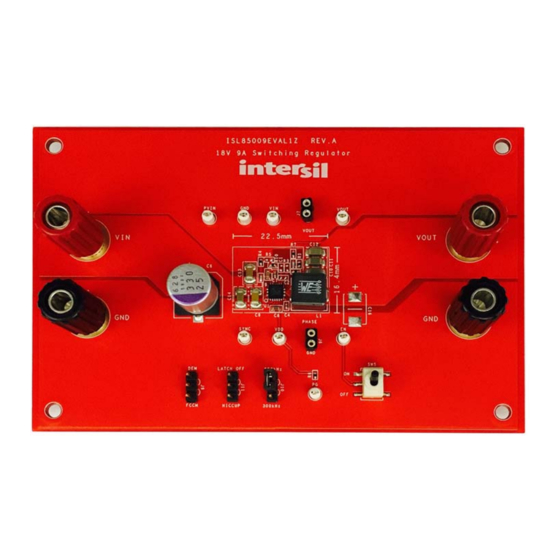

ISL85009EVAL1Z platform allows quick evaluation of the
high-performance features of the ISL85009 buck regulator.
Specifications
This board has been configured and optimized for the following
operating conditions:
• Input voltage range from 4.5V to 18V
• 1.8V nominal output voltage
• Up to 9A output current capability
• Default internally set to 600kHz switching frequency
• Default internally set to 3ms soft-start
• Operating temperature range: -40°C to +85°C
PVIN
4.5V TO 18V
C
GND
February 15, 2017
UG112.0
15
14
13
VIN
EN
DNC
PVIN
PHASE
IN
GND
SYNC
MODE
FREQ
1
2
3

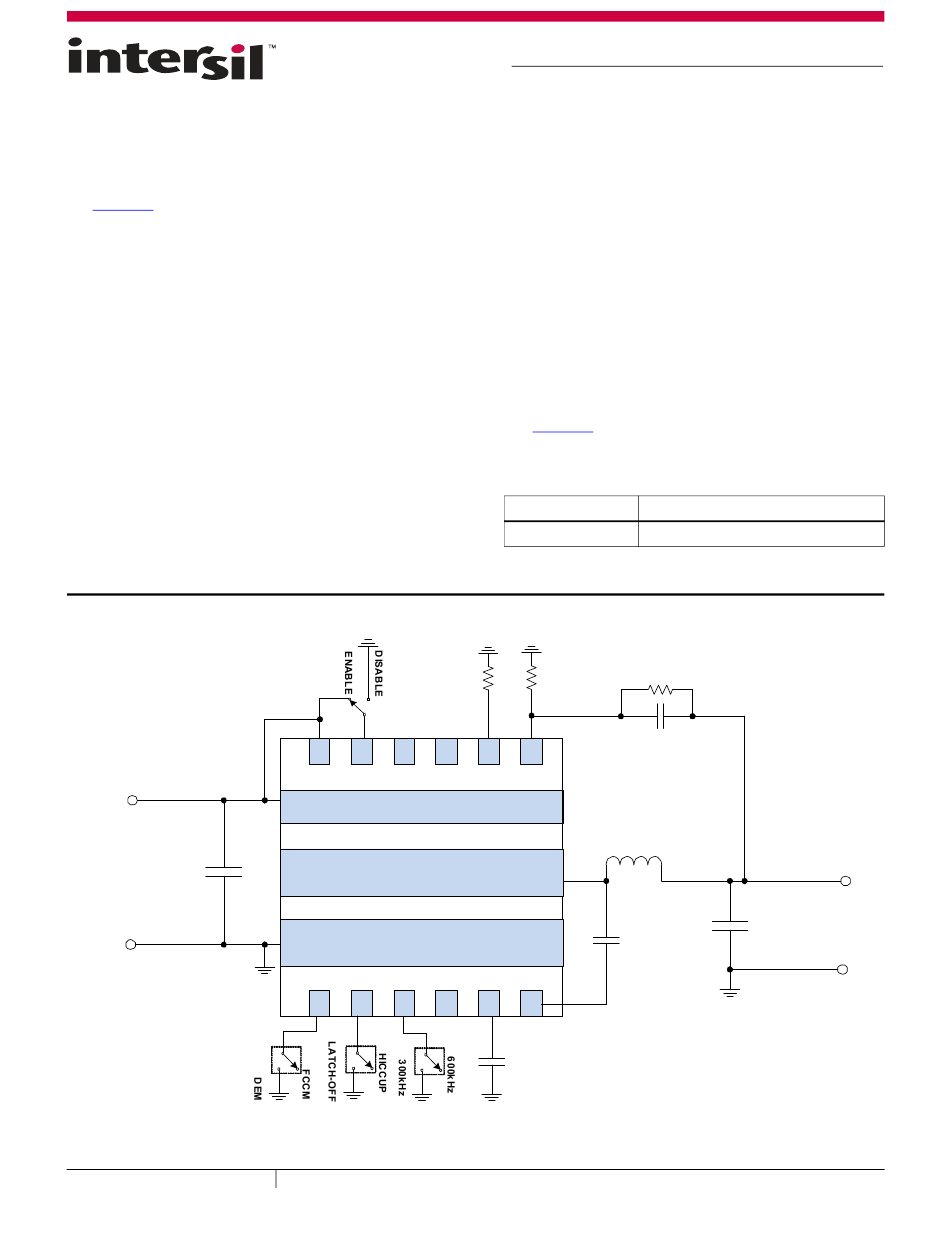

FIGURE 1. BLOCK DIAGRAM
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
Key Features
• Switch selectable EN (enabled/disabled)
• Frequency synchronization option
• Jumper selectable mode (DEM/Forced CCM)
• Jumper selectable OCP mode (Hiccup/Latch-Off)
• Jumper selectable frequency (600kHz/300kHz)
• Connectors and test points for easy probing
• Compact design
Related Literature
• For a full list of related documents, visit our website
-
ISL85009
product page
Ordering Information
PART NUMBER
ISL85009EVAL1Z
R
R
2
3
12
11
10
FB
DNC
COMP
9
8
7
PG
VDD
BOOT
4
5
6
C
3
|
1-888-INTERSIL or 1-888-468-3774
Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.
All other trademarks mentioned are the property of their respective owners.
User Guide 112
DESCRIPTION
Evaluation board for ISL85009
R
1
C
1
L1
C
OUT
C
4
Copyright Intersil Americas LLC 2017. All Rights Reserved
V
OUT
1.8V/9A
GND
