lSL8272MEVAL1Z Evaluation Board User Guide
Description
The ISL8272M is a 50A step-down DC/DC power supply
module with an integrated digital PWM controller, dual-phase
synchronous power switches, inductors and passives. Only
input output capacitors and minimal passives are needed to
finish the design. 50A of continuous output current can be
delivered without a need of airflow or heatsink. The ISL8272M
uses ChargeMode™ control (ASCR) architecture, which
responds to a transient load within a single switching cycle.
The ISL8272MEVAL1Z evaluation board is a 4.7in x 4.8in
6-layer FR4 board with 2oz. copper in all layers. This evaluation
board comes with placeholders for pin-strap resistor
population to adjust output voltage, switching frequency, soft-
start/stop timing and input UVLO threshold, ASCR gain and
residual parameters and device PMBus™ address. More
configurations, such as sequencing, Digital-DC™ (DDC) bus
configuration and fault limits can be easily programmed or
changed via PMBus compliant serial bus interface.
ZLUSBEVAL3Z (USB to PMBus adapter) is provided with this
evaluation kit, which connects the evaluation board to a PC to
activate the PMBus communication interface. The PMBus
command set is accessed by using the PowerNavigator™
evaluation software from a PC running Microsoft Windows.
References
ISL8272M
datasheet
INTERCONNECTS DDC AND
SYNC BETWEEN BOARDS
CONNECT TO ZLUSBEVAL3Z
DONGLE. FOR MULTIPLE
BOARD EVALUATION,
CONNECT TO PMBus DONGLE
OUT CONNECTION OF OTHER
BOARD
September 17, 2014
UG003.0
ENABLE SWITCH

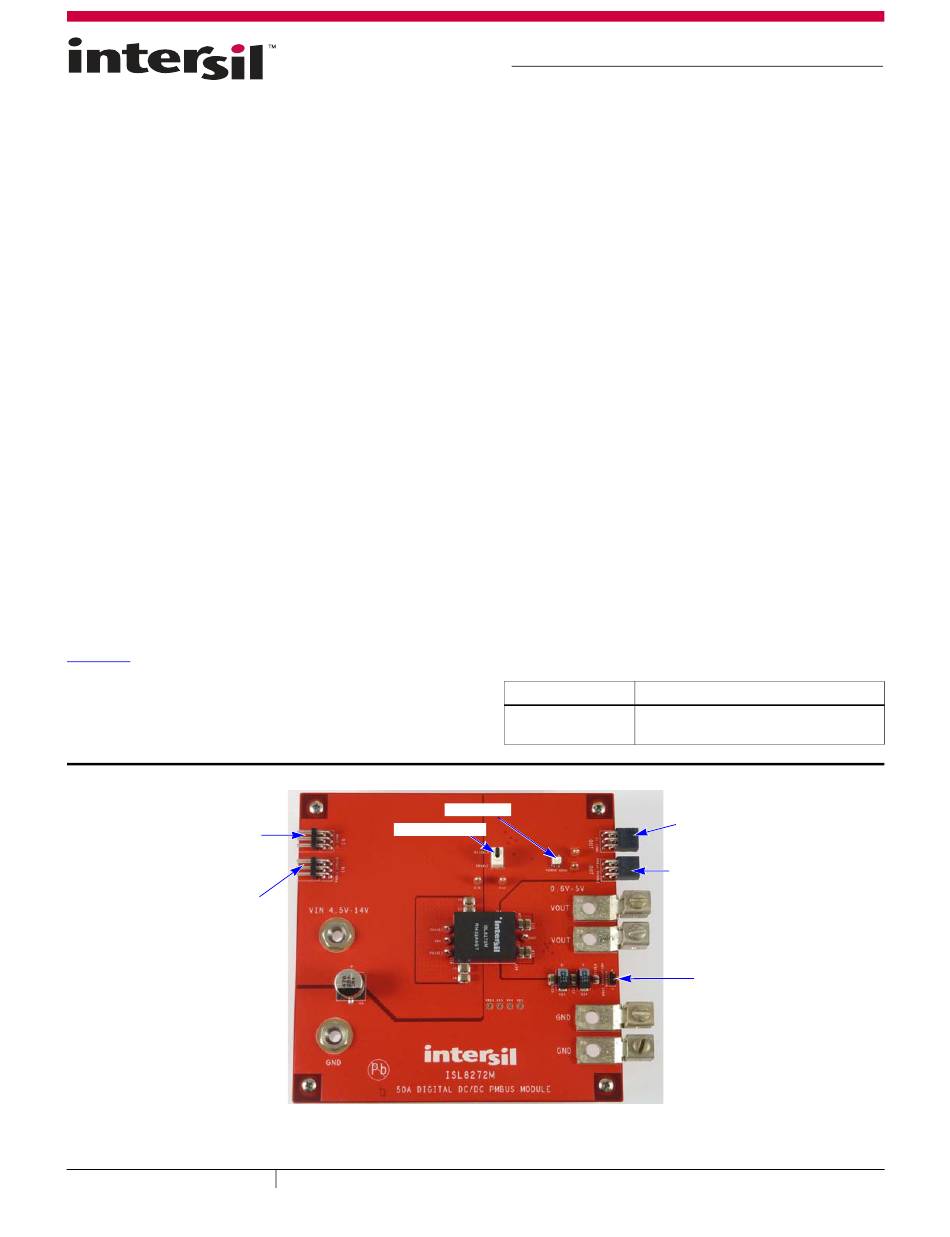

FIGURE 1. TOP SIDE
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
Intersil (and design), PowerNavigator, ChargeMode and Digital-DC are trademarks owned by Intersil Corporation or
one of its subsidiaries. All other trademarks mentioned are the property of their respective owners.

Key Features

• V
range of 4.5V to 14V, V
IN
• Programmable V
OUT
I
limit, OTP/UTP, soft-start/stop, sequencing, and
OUT
external synchronization
• Monitor: V
, V
IN
OUT
frequency and faults
• ChargeMode™ control tunable with PMBus
• Mechanical switch for enable and power-good LED indicator

Specifications

This board has been configured for the following operating
conditions by default:
• V
= 5V to 12V
IN
• V
= 1.2V
OUT
• I
= 50A
MAX
• f
= 421kHz
SW
• Peak efficiency: >90.5% at 70% load
• Output ripple: <10mV
• ASCR gain = 200, ASCR residual = 90
• On/off delay = 5ms; On/off ramp time = 5ms

Ordering Information

PART NUMBER
ISL8272MEVAL1Z
PGOOD LED
|
Copyright Intersil Americas LLC 2014. All Rights Reserved
User Guide 003
adjustable from 0.6V to 5V
OUT
, margining, input and output UVP/OVP,
, I
, temperature, duty cycle, switching
OUT
P-P
DESCRIPTION
ISL8272M Kit (Evaluation Board,
ZLUSBEVAL3Z Adapter, USB Cable)
INTERCONNECTS DDC AND SYNC
BETWEEN BOARDS
TO DAISY CHAIN PMBus
CONNECTION
VOUT REGULATION MONITOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISL8272MEVAL1Z and is the answer not in the manual?

Questions and answers

Summary of Contents for Intersil ISL8272MEVAL1Z

  • Page 1: Key Features

    1-888-INTERSIL or 1-888-468-3774 Copyright Intersil Americas LLC 2014. All Rights Reserved UG003.0 Intersil (and design), PowerNavigator, ChargeMode and Digital-DC are trademarks owned by Intersil Corporation or one of its subsidiaries. All other trademarks mentioned are the property of their respective owners.
  • Page 2: Recommended Equipment

    1% standard 0603 resistor at RVSET placeholder margining are available on this evaluation board. For sequencing location on bottom layer. Refer to the “Output Voltage evaluation, the board can be connected to any Intersil digital Resistor Settings” table in the ISL8272M datasheet for module evaluation board that supports the DDC bus.
  • Page 3 User Guide 003 Resistor Settings” table and the design guide matrix in the 11. Monitor and configure the ISL8272MEVAL1Z board using the ISL8272M datasheet for recommended values. PMBus commands in the evaluation software. To store the configuration changes, disable the module and use the PMBus Option command STORE_USER_ALL.
  • Page 4 ISL8272MEVAL1Z Schematic FROM PREQUEL FROM PREQUEL SALRT SYNC UNNAMED_1_CONN6_I259_IN2 VI2C UNNAMED_1_CONN6_I259_IN5 UNNAMED_1_CONN6_I259_IN6 TO SEQUEL TO SEQUEL ENABLE UNNAMED_1_GTSERIES_I236_NC DISABLE COMMUNICATION CONNECTION INTER-DEVICE CONNECTION PHASE1 TP10 TP12 UNNAMED_1_SMRES_I282_A VOUT PAD1 SALRT VOUT PAD3 SALRT PGND PAD5 PGND ISL8272MIRZ SYNC SWD1 PAD14 4.75K...
  • Page 5: Bill Of Materials

    SAMTEC TSW-103-08-T-D-RA CONN-HEADER, 2x3, BRKAWY, 2.54mm, TIN, R/A, ROHS LUMEX SSL-LXA3025IGC-TR LED, SMD, 3x2.5mm, 4P, RED/GREEN, 12/20MCD, 2V INTERSIL ISL8272MAIRZ IC-50A DIGITAL DC/DC MODULE, 42P, HDA, ROHS ON SEMICONDUCTOR 2N7002LT1G TRANSISTOR-MOS, N-CHANNEL, SMD, SOT23, 60V, 115mA, ROHS R4, R5, R6, R7, RFSET, RVSET RESISTOR, SMD, 0603, 0.1%, MF,...
  • Page 6: Configuration File

    0x0215 # 533 kHz SYNC_CONFIG 0x00 # Use Pin-strap for FSW setting SEQUENCE 0x0000 # Sequence Disabled # Manufacturer Related MFR_ID Intersil Corp # Example Only MFR_MODEL ISL8272MEVAL1Z # Example Only MFR_REVISION Rev-1 # Example Only MFR_LOCATION Milpitas, CA # Example Only...
  • Page 7 User Guide 003 Layout FIGURE 3. SILKSCREEN TOP FIGURE 4. TOP LAYER COMPONENT SIDE Submit Document Feedback UG003.0 September 17, 2014...
  • Page 8 User Guide 003 Layout (Continued) FIGURE 5. LAYER 2 FIGURE 6. LAYER 3 Submit Document Feedback UG003.0 September 17, 2014...
  • Page 9 User Guide 003 Layout (Continued) FIGURE 7. LAYER 4 FIGURE 8. LAYER 5 Submit Document Feedback UG003.0 September 17, 2014...
  • Page 10 User Guide 003 Layout (Continued) FIGURE 9. BOTTOM LAYER SOLDER SIDE FIGURE 10. SILKSCREEN BOTTOM Submit Document Feedback UG003.0 September 17, 2014...
  • Page 11: Typical Performance Data

    User Guide 003 Typical Performance Data The following data was acquired using a ISL8272MEVAL1Z evaluation board. +45°C 300kHz +25°C 800kHz +65°C 533kHz 421kHz ACTUAL OUTPUT CURRENT (A) ACTUAL OUTPUT CURRENT (A) FIGURE 11. OUTPUT CURRENT MEASUREMENT ACCURACY AT FIGURE 12. OUTPUT CURRENT MEASUREMENT ACCURACY AT...
  • Page 12 User Guide 003 Typical Performance Data The following data was acquired using a ISL8272MEVAL1Z evaluation board. (Continued) (50mV/DIV) (50mV/DIV) ASCR GAIN = 550 RESIDUAL = 100 ASCR GAIN = 220 RESIDUAL = 90 (25A/DIV) (25A/DIV) 50µs/DIV 20µs/DIV FIGURE 17. LOAD TRANSIENT RESPONSE AT V...
  • Page 13 User Guide 003 Typical Performance Data The following data was acquired using a ISL8272MEVAL1Z evaluation board. (Continued) PHASE1 (10V/DIV) PHASE1 (10V/DIV) PHASE2 (10V/DIV) PHASE2 (10V/DIV) (1V/DIV) (1V/DIV) (5A/DIV) (5A/DIV) 50ms/DIV 50ms/DIV FIGURE 24. OUTPUT SHORT CIRCUIT RECOVERY FROM CONTINUOUS FIGURE 23. OUTPUT SHORT CIRCUIT PROTECTION WITH RETRY (HICCUP MODE).
  • Page 14 = +25°C, NO AIRFLOW Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that the Application Note or Technical Brief is current before proceeding.
