Durabook U11I User Manual

Rugged tablet cradle

Hide thumbs Also See for U11I:

U11I Rugged Tablet

Cradle

P/N: 62+031141+00

Table of Contents

Need help?

Do you have a question about the U11I and is the answer not in the manual?

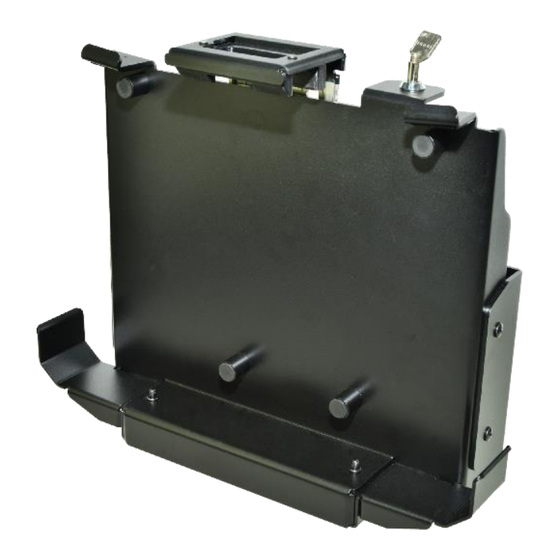

Page 2 Cradle Product Overview Front Item Top clamp Grounding pin (x2) Lock (with key slot) Rear Item Slide latch Mounting holes for VESA mount (with VESA screw x4)
Page 3 Cradle Unlock the Lock Lock on the docking cradle was locked during packaging. To unlock lock, do the following: 1. Insert the lock key. 2. Turn it clockwise until a “click” is heard, indicating the lock is released. 3. Turn the key back counterclockwise to remove it from the key slot. 4.
Page 4 Cradle Docking the Tablet PC 1. With screen side facing out and docking connector down, insert the tablet PC into the grounding pin on docking cradle. 2. Secure the tablet PC by pressing firmly on the top clamp until a “click” is heard and the lock is fully engaged.
Page 5 Cradle Undocking the Tablet PC Insert the lock key into the lock and turn clockwise until a “click” is heard. Turn the key back counterclockwise to remove it from the key slot. Refer to the “Unlock the Lock” section. Push the side latch all the way to the left to disengage the top clamp. NOTE: Top clamp disengages automatically after the side latch is fully extended.
Page 6 Cradle Remove the tablet PC from the docking cradle. Twinhead International Corp. 11F, No.550, Ruiguang Rd., Neihu, Taipei 11492, Taiwan, R.O.C.
