Summary of Contents for Durabook VD-T02

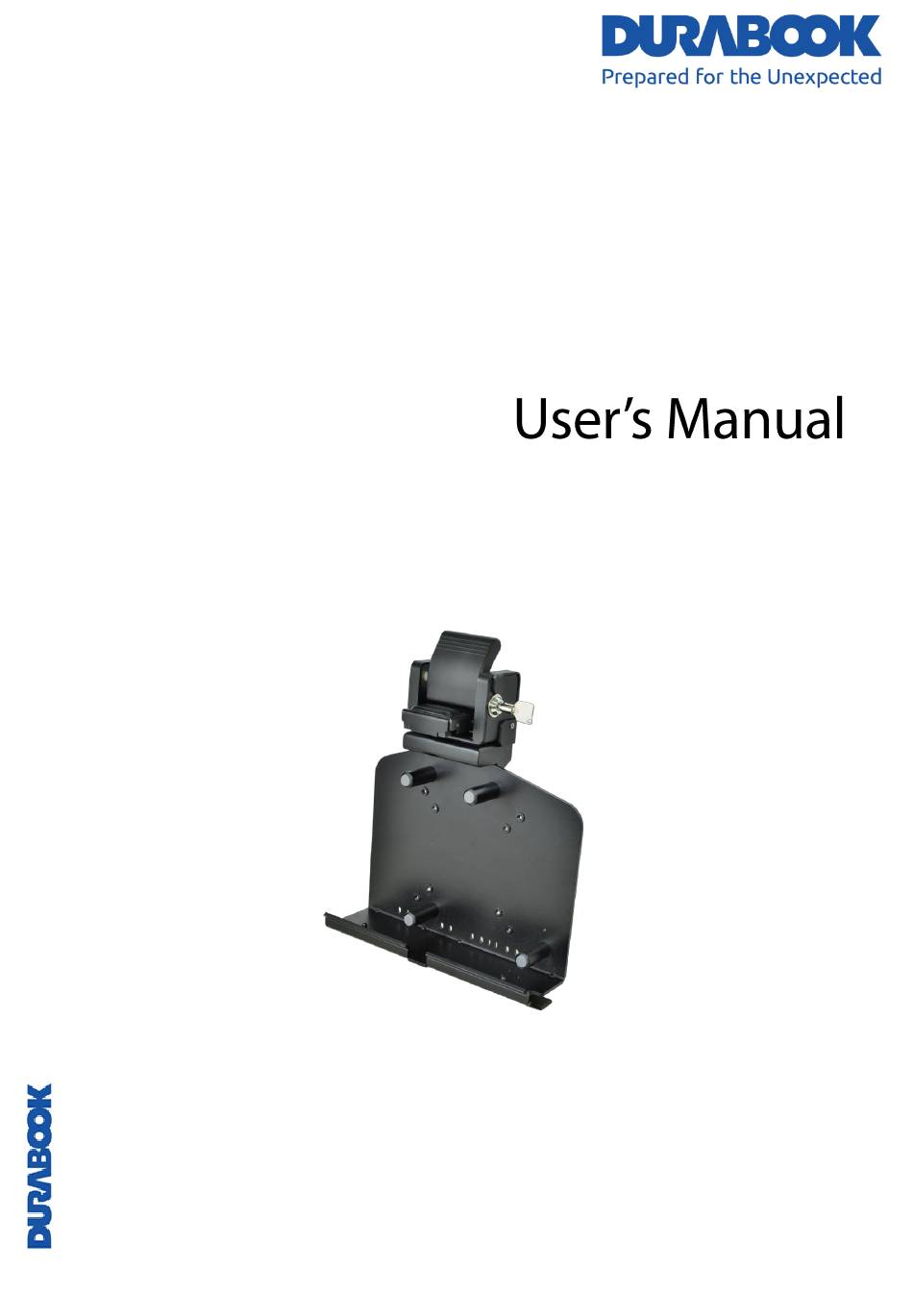

- Page 1 R11 Rugged Tablet Cradle VD-T02 P/N: 62+009660+10 © 2021 Twinhead International Corp and/or its affiliates. All rights reserved.
- Page 2 Cradle VD-T02 Product Overview Front Item Latch Alignment port (x2) Latch bar (with key slot) Cable standoff Rear Item Mounting holes for VESA mount Cable clamp Unlock the Latch The latch on the docking cradle is locked during packaging. To unlock the latch, do the following: 1.
- Page 3 Cradle VD-T02 Docking the Tablet PC 1. With screen side facing out and docking connector down, insert the R11 Tablet PC into the alignment ports on the docking cradle. 2. Secure the R11 Tablet PC by pulling the latch forward until a “click” is heard and the latch is fully engaged.
- Page 4 Cradle VD-T02 Undocking the Tablet PC 1. Insert the latch bar key into the latch bar and turn clockwise until a “click” is heard. Refer to the “Unlock the Latch” section. 2. While supporting the R11 Tablet PC with one hand, push the latch backward...
- Page 5 Cradle VD-T02 3. Remove the R11 Tablet PC from the docking cradle. Using the Cable Standoff and Cable Clamp Connect the power cable to the DC IN jack and rotate the plug (L-type) into ⚫ the cable standoff (A) to secure it in place.
