Master WIND DUO Instruction Manual

Expired
At the end of the product cycle, dispose as provide by local regulation, or deliver again to the retailer when purchasing a new one. This product could contain polluting substance for the
environment and dangerous for health, if expired in a wrong way.

1. Technical and general features

Power Supply :
Contacts Capacity :
Dimensions :
Wind Threshold :

2. . Warnings on installation safety

01. The device must be installed by technical qualified staff so as to comply with the laws in force in your locality
02. Check that the package is intact and it has not suffered damage in transit
03. This device is subject by dangerous electric voltage.
04. Always connect the ground wire (yellow/green)
05. Adjust the motor limit switch before connecting it to the device
06. Manual controls with high voltage, be careful.
07. The installer is forced to arrange a section device on the system (with 3 mm minimum opening contacts)
08. Do not change, open or replace parts without manufacturer's permission
09. For your safety, it is forbidden to work close to the roller tube with motor supplied.
10. In case of malfunctioning do not keep on trying on control and warn the technician.
11. Operate on the device with caution, using suitable tools.
12. Check that the power supply line does not depend on circuit for lighting.
13. The device has not a section device, the technician will take care to provide it into the system
14. Be sure that sensor has been installed on the correct position and well exposed to the wind and that there are no obstacles to the blades rotation
15. Strictly a djusting the sensor with blades turned upside
16. Using sensors produced by the same manufacturer, or the warranty will be cancelled
17. The producer cannot be consider responsible for any damages due to improper, wrong or unreasonable use

3. Manual control

The device is proveded by two manual controls that can be permanent or momentary.Through this controls it is possible to move two awnings, manually or separately. Manual controls will be
disabled in wind alarm condition.

4. Wind control

It closes the awning when the wind speed exceeds the set threshold for longer than 3 seconds
It exits the wind alarm mode when about 8 minutes have elapsed since the last gust above the threshold. While in wind alarm mode, the manual controls are disabled.
How to adjust wind threshold :
Rotate the trimmer on the device. Threshold is adjustable from 7 Km/h (trimmer completed rotate on the left) to 40 Km/h (trimmer completed rotate on the right).
The Factory sets up the Wind threshold at about 15 Km/h.
Wind presence signal :
When the set wind threshold is exceeded, the red led switches on. If this condition continues for at least 3 seconds, the device goes into wind alarm mode and the red led flashes for the whole wind
alarm time.
Forced exit from wind alarm mode :
Once the device connected and wind alarm simulated (bring the awning to middle position and rotate the sensor blades) it can be possible to exit from alarm condition without waiting 8 minutes.
Hold key RESET since led (flashing during the alarm) switches off (about 5 seconds).

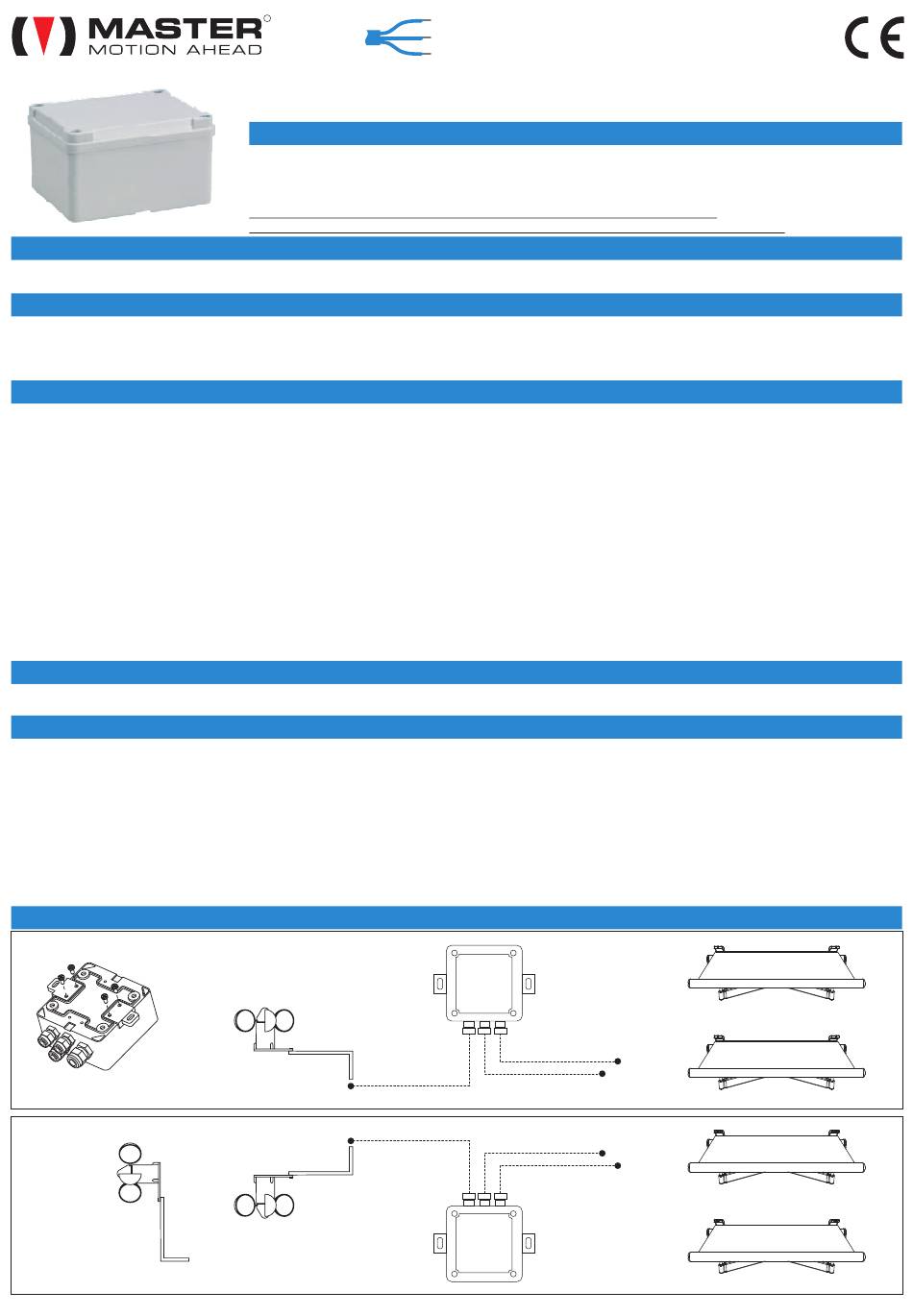

5. Fixing system

RIGHT FIXING
WRONG FIXING
X
R
Instruction guide : Wind control for 2 motors
WARNINGS
Dear Customer, thank you for purchasing a MASTER product.
Here you will find important information regarding the methods of use and the safety of installation.
and keep for future reference.
rolls up the awning when the wind speed exceeds the setting threshold. It controls 2 motors with mechanical limit switch.
FOR A CORRECT INSTALLATION, IT IS RECOMMENDED TO READ THIS INSTRUCTION GUIDE.
The producer cannot be consider responsible for any damages due to improper, wrong or unreasonable use.
(related to 20°C working temperature)
230 Vac 50/60 Hz
2x10 A@250 Vac
100 x 100 x 60 mm
from 7 to 40 Km/h
.
Make connections without power supply
.
.
.
.
X
X
WIRED

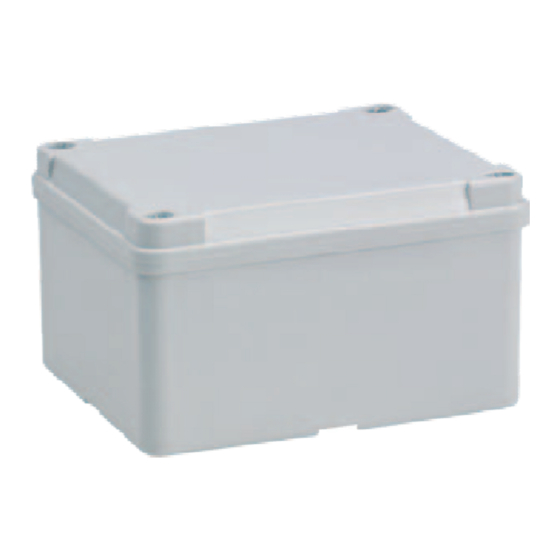

WIND DUO is a wind safety device, with high voltage controls, for awnings, screens or similars. This device
Sensors supported :
Protection Degree :
Protective Fuse:
Working temperature :
.
.
.
.
.
.
connection cables
connection cables
WIND DUO
Comply with the following information
sensor X15C
Ip55
5x20 fast 6,3 Amp
from -20°C to +55°C
.
awning 1
awning2
awning 1
awning 2
WIND DUO rev.02 dated 30.08.12
