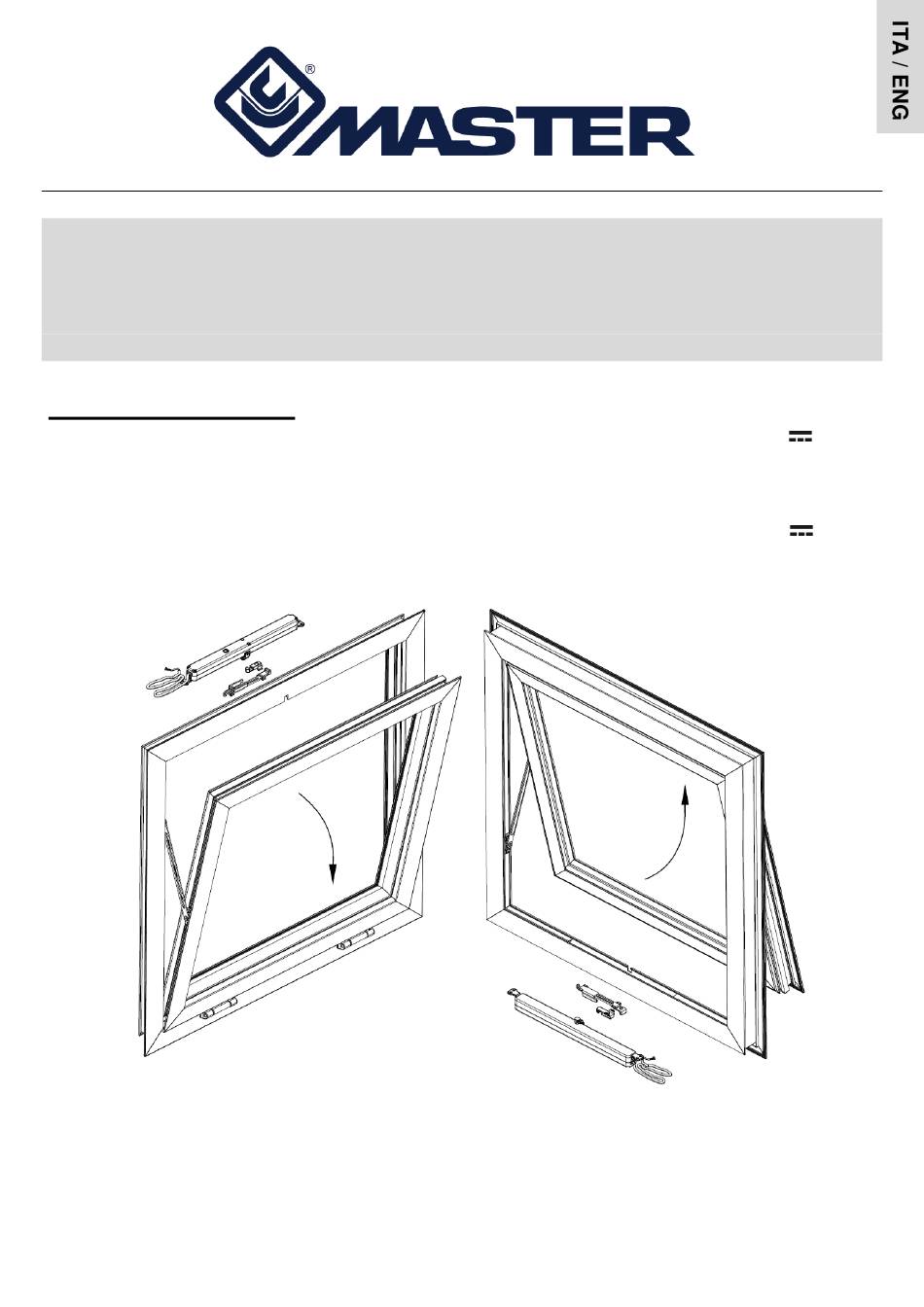

MANUALE D'USO E INSTALLAZIONE
USER AND INSTALLATION MANUAL
200 N -
CORSA MASSIMA
MAXIMUM STROKE
210
MM
:24V
(DC)
210
MM
:24V
(DC)

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WiCloud and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Master WiCloud

  • Page 1 WiCloud . 1121.2/1121.6 200 N - ORZA CORSA MASSIMA :24V (DC) LIMENTAZIONE ELETTRICA 200 N - ORCE MAXIMUM STROKE :24V (DC) LECTRIC POWER SUPPLY MANUALE D’USO E INSTALLAZIONE USER AND INSTALLATION MANUAL...
  • Page 2: Table Of Contents

    L’istruzione ambientale richiama l’attenzione su potenziali pericoli per AMBIENTALE l’ambiente. Il sistema automatico WiCloud, descritto in questo manuale è destinato a movimentare finestre a Vasistas o simili. L'uso per applicazioni diverse da quelle indicate, deve essere autorizzato dal costruttore, previa verifica tecnica del montaggio.
  • Page 3 INDICAZIONI GENERALI PER LA SICUREZZA ATTENZIONE Prima d’iniziare l’installazione di questa macchina, leggere attentamente e comprendere le seguenti indicazioni di sicurezza. L'installazione dell'apparecchio ed eventuali riparazioni devono essere eseguite da personale tecnico competente e qualificato. Sacchetti di plastica, polistirolo, piccole minuterie metalliche quali chiodi, graffette, ecc. non devono essere lasciati alla portata dei bambini perché...
  • Page 4: Dati Tecnici

    LOUD 1. DATI TECNICI Modello WiCloud Forza di spinta e trazione 200 N Corse 70, 125, 170, 210mm Tensione d'alimentazione 24 V Assorbimento di corrente a carico nominale 0,32A Potenza assorbita a carico nominale 7,5W Velocità di traslazione a vuoto...
  • Page 5: Formule E Consigli Per L'installazione

    3. FORMULE E CONSIGLI PER L’INSTALLAZIONE Calcolo della forza di apertura / chiusura Simboli usati per il calcolo F (Kg) = Forza apertura o chiusura P (Kg) = Peso della finestra (solo anta mobile) C (cm) = Corsa d’apertura (corsa attuatore) H (cm) = Altezza dell’anta mobile SPORGERE VASISTAS...
  • Page 6 Schema elettrico collegamento pulsante 6 poli • Nero “1”, connesso al + (positivo) apre; • Nero “2”, connesso al + (positivo) chiude; • Nero "3", non collegare. Gli attuatori sono dotati di cavo di alimentazione a tre vie numerato della lunghezza di 2m direttamente collegato.
  • Page 7: Programmazione Della Corsa Dell'attuatore

    Di seguito le quote e le dimensioni in sezione dell’attuatore: 6. PROGRAMMAZIONE DELLA CORSA DELL'ATTUATORE Fine corsa in apertura Il fine corsa dell’attuatore in apertura, si regola con la selezione di 3 dip-switch (2, 3, 4) che si trovano all’interno dell’attuatore sotto il tappo nero di gomma (T) (vedi fig. sotto). Significato dei dip-switch Nel caso in cui per errore si selezionano due o più...
  • Page 8 Fine corsa in chiusura Il fine corsa in chiusura è automatico e non programmabile. L’arresto dell’attuatore avviene per effetto dell’assorbimento di potenza (potenza assorbita + 15% di quella nominale). Dopo ogni chiusura o intervento della protezione elettronica, la catena si muove in senso contrario per circa 1mm, per dare la giusta compressione alle guarnizioni e rilassare gli organi meccanici interni.
  • Page 9 Le spese di trasporto relative (andata / ritorno) sono sempre a carico dell’acquirente. MASTER S.r.l. – I417A - 12/02/2014 La Master Srl non risponde in alcun modo di possibili inesattezze imputabili ad errori di stampa o di trascrizione dati nel presente foglio. Pagina 9...
  • Page 10 INSTRUCTION hazards for the environment. The automatic system WiCloud described in this manual is intended to move awning/hopper windows or the like. Any use for applications other than those indicated must be authorized by the manufacturer upon technical verification of the assembly.
  • Page 11 GENERAL SAFETY GUIDELINES CAUTION Before beginning to install this machine, carefully read and understand the following safety guidelines. The installation of the device and any repairs must be carried out by skilled and qualified technical personnel. Plastic bags, polystyrene, small metal parts such as nails, staples, etc. must not be left within the reach of children as they represent potential hazards.
  • Page 12: Technical Data

    LOUD 1. TECHNICAL DATA Model WiCloud Compression and tensile force 200 N Strokes 70, 125, 170, 210mm Power supply voltage 24 V Current absorbed at nominal load 0.32A Power absorbed at nominal load 7.5W No-load traverse speed 8mm/s No-load stroke time (215 mm)
  • Page 13: Formulas And Recommendations For Installation

    3. FORMULAS AND RECOMMENDATIONS FOR INSTALLATION Calculation of the opening / closing force Symbols used for the calculation F (kg) = opening or closing force P (kg) = Weight of the window (movable sash only) C (cm) = opening stroke (actuator stroke) H (cm) = Height of the movable sash AWNING HOPPER...
  • Page 14 6-pin button connection wiring diagram • Black “1”, connected to the + (positive) open; • Black “2”, connected to the + (positive) close; • Black "3", do not connect. The actuators are equipped with a numbered three-way power supply cable with a length of 2m connected directly to the device.
  • Page 15: Setting The Stroke Of The Actuator

    The diagram below specifies the length and cross-section dimensions of the actuator: 6. SETTING THE STROKE OF THE ACTUATOR Opening stroke-end The opening stroke-end of the actuator can be adjusted by selecting the 3 dip-switches (2, 3, 4) located inside the actuator underneath the black rubber plug (T) (see fig. below). Meaning of the dip-switches If two or more dip-switches are accidentally set to ON, the actuator uses the shortest of the selected strokes.
  • Page 16 Attention. The actuator is supplied with a minimum stroke 70mm. Closing stroke-end The closing stroke-end is automatic and non-settable. The stop of the actuator is determined by the power absorbed (power absorbed + 15% of the nominal value). After each closure or intervention of the electronic protection, the chain moves in the opposite direction by about 1mm in order to produce the right compression on the gaskets and relax the internal mechanical parts.
  • Page 17 (to and from the factory). MASTER S.r.l. – I417B - 11/03/2014 Master Srl may not be held liable in any way whatsoever for any inaccuracies due to printing or data transcription errors in this document Pagina 17...
