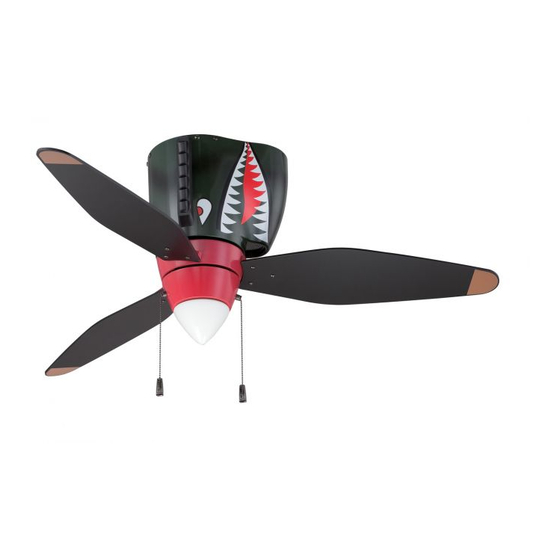

Craftmade WarPlanes WB348 Installation Manual
  1. Manuals
  2. Brands
  3. Craftmade Manuals
  4. Fan
  5. WarPlanes WB348
  6. Installation manual

Craftmade WarPlanes WB348 Installation Manual

Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
WarPlanes
Installation Guide
For Model:
WB348
E192641
net weight of fan: 13.86 lb (6.3 kg) WB348
15.1 lb (6.85 kg) WB448
READ THESE INSTRUCTIONS AND
AND SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 5
Warranty. pg. 8
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WarPlanes WB348 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftmade WarPlanes WB348

Summary of Contents for Craftmade WarPlanes WB348

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND AND SAVE THEM FOR FUTURE USE WarPlanes Installation Guide For Model: WB348 Table of Contents: Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Mounting Plate Installation. pg. 3 Fan Assembly.

  • Page 2: Safety Tips

    SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.

  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches 7 feet that the hanging location allows the blades a (2.13 m) (76 cm) clearance of 7 feet (2.13 m) from the floor and 30 in (76 cm) from any wall or obstruction. This fan is suitable for room sizes up to 225 square 12 ft.

  • Page 5: Fan Assembly

    5. Fan Assembly. With the mounting plate secured to the outlet box and able to support the fan, you wood wood screw are now ready to hang your fan. ceiling joist Tip: Seek the help of another person to hold the stepladder in place and to lift the fan up safety cable to you once you are set on the ladder.

  • Page 6: Wiring

    6. Wiring. WARNING: Turn off circuit breakers to current fixture from breaker panel and be sure operating outlet box light switch is turned to the OFF position. CAUTION: Be sure outlet box is properly grounded and that a ground wire (GREEN or Bare) is present. GROUND/GREEN BLACK Make sure all electrical connections comply with Local...

  • Page 7: Blade Assembly

    8. Blade Assembly. WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades. If overtightened, blades may crack and break. motor housing Locate blade attachment screws in one of the hardware packs. Place one blade under blade arm, aligning holes in blade arm with blade arm holes in blade as shown.

  • Page 8: Testing Your Fan

    10. Testing Your Fan. It is recommended that you test fan before motor housing finalizing installation. Restore power from circuit box and light switch (if applicable). Test fan speeds with the pull chain labeled FAN. Start at the OFF position (no blade movement).

  • Page 9: Troubleshooting

    Service at 1-800-486-4892 to arrange for return of fan. 1. Check wall switch to fan. Return fan, shipping prepaid, to Craftmade. We will repair 2. Verify that reverse switch is set completely in or ship you a replacement fan, and we will pay the return either direction.
