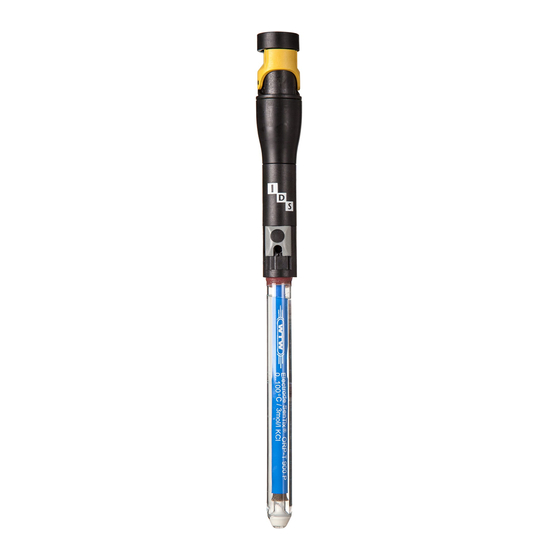

Xylem WTW MultiLine SenTix ORP-T 900 Operation Manual
Hide thumbs
Also See for WTW MultiLine SenTix ORP-T 900:
- Operation manual (14 pages) ,
- Operation manual (14 pages)
Related Manuals for Xylem WTW MultiLine SenTix ORP-T 900
Summary of Contents for Xylem WTW MultiLine SenTix ORP-T 900
- Page 1 OPERATING MANUAL OPERATION MANUAL ba75845e03 02/2017 ® SenTix ORP-T 900(-P) ® SenTix ORP-T 900(-P) ORP ELECTRODE For Sales & Service Contact 2650 E. 40th Ave. • Denver, CO 80205 Phone 303-320-4764 • Fax 303-322-7242 1-800-833-7958 www.geotechenv.com...
- Page 2 ® SenTix ORP-T 900 2017, Xylem Analytics Germany GmbH © Copyright Printed in Germany. ba75845e03 02/2017...
-
Page 3: General Information
® SenTix ORP-T 900(-P) General information General information Automatic sensor The sensor electronics with the stored sensor data are in the connecting recognition head of the electrode. The data include, among other things, the sensor type and series number. In addition, the calibration data are stored in the sensor with each calibration and the calibration history is recorded (the last 10 cali- brations). - Page 4 ® Commissioning, measuring, checking SenTix ORP-T 900(-P) Opening and closing the IDS plug connection ® This section only applies to IDS plug variants (SenTix ... -P). Plug connection closed and locked Guidance Groove Opening the plug If necessary, clean the plug connection. connection ...
- Page 5 ® SenTix ORP-T 900(-P) Commissioning, measuring, checking Operating manual Commissioning Prepare the electrode for measuring as follows: Open the refilling opening for the reference electrolyte solution. Depend- ing on the model, the stopper of the refilling opening is an elastomer stop- per or a slider.
- Page 6 ® Commissioning, measuring, checking SenTix ORP-T 900(-P) Avoid the carryover of sample solution from one measurement to the next as follows: – Shortly rinse the sample beakers with the solution the beakers are to be filled with next. – Between measurements, rinse the electrode with the solution that fol- lows.
- Page 7 ® SenTix ORP-T 900(-P) Storage T (°C) T (°F) [mV] T (°C) T (°F) [mV] ® ® SenTix ORP- SenTix ORP-T 900 T 900 +207 +180 +203 Storage During short Immerse the electrode in the reference electrolyte with the refilling opening measuring breaks open.
-
Page 8: Maintenance And Cleaning
® Maintenance and cleaning SenTix ORP-T 900(-P) Maintenance and cleaning During operation, a small amount of reference electrolyte leaks through the junction from the electrode into the test sample. If the level of reference elec- trolyte becomes too low with time, refill it through the refilling opening. Refilling the Refilling is very easy using a dropping bottle. - Page 9 ® SenTix ORP-T 900(-P) Activating platinum electrodes Activating platinum electrodes First-time For first-time activation use the activation powder from the SORT/RH reagent activation during set (component of the SORT/RH reagent set). Immerse the moist (but not installation and as dripping) platinum electrode into the activation powder and rotate the elec- required trode several times in the powder.
-
Page 10: Technical Data
® Technical data SenTix ORP-T 900(-P) Technical data Measurement mV measuring range - 1250.0 ... + 1250.0 Allowed temperature range 0 ... 100 °C (32 ... 212 °F) Typical application Laboratory Accuracy of the Measured parameter Accuracy (± 1 digit) IDS measuring U [mV] ±... -
Page 11: Wear Parts And Accessories
® SenTix ORP-T 900(-P) Wear parts and accessories Wear parts and accessories Maintenance Description Model Order no. equipment Reference electrolyte solution 3 mol/l KCl, KCl-250 109 705 free (250 ml) Reagent set for regenerating ORP platinum SORT/RH 109 730 electrodes, consisting of 10 g activation powder and 30 g clorina powder ORP buffer solution for checking ORP RH 28... - Page 12 ® Disposal SenTix ORP-T 900(-P) ba75845e03 02/2017...
- Page 14 For more information on how Xylem can help you, go to xyleminc.com. ® Service address: Xylem Analytics Germany Sales GmbH &...
