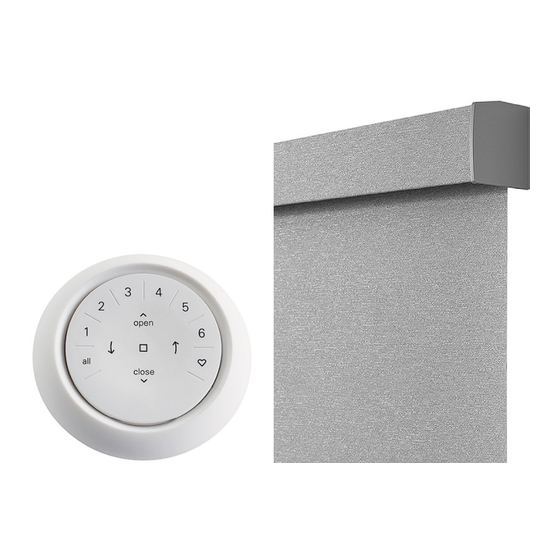

- Page 1 Roller & Screen Shade Collection Automation III Installation Instructions Rev. A 5/3/22...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED ..............................1 Product View - Standard Shade ............................ 1 Product View - Cassette Shade ............................. 2 Product View - Fascia and Pocket Shade ........................3 Product View - Dual Roller Shade ..........................4 Tools and Fasteners Needed ............................5 INSTALLATION ................................ -
Page 3: Product View - Standard Shade
GETTING STARTED Product View - Standard Shade Motor Bracket Bracket Cover (Optional) Idle Bracket Bracket Cover Motor Installation (Optional) Assembly Screws Control Button Idler Assembly Bottom... -
Page 4: Product View - Cassette Shade
GETTING STARTED Product View - Cassette Shade Power Cable Outside Mount Spacer Blocks Cassette Installation Brackets Control Button Bottom Bar... -
Page 5: Product View - Fascia And Pocket Shade
GETTING STARTED Product View - Fascia and Pocket Shade End Cap Tape Motor Bracket Fascia Idle Bracket Motor Assembly Pocket End Cap End Cap Pocket (Optional) Idler Assembly Pocket Bottom End Cap Bottom Bar Idle-Side Installation Bracket Motor Pocket Assembly End Cap Control Button... -
Page 6: Product View - Dual Roller Shade
GETTING STARTED Product View - Dual Roller Shade Extension Cable Satellite Battery Pack Motor Cover Bracket Motor Assembly Battery Wand Idler Assembly Idle Bracket Installation Screws Bottom Bar... -
Page 7: Tools And Fasteners Needed
GETTING STARTED ® Thank you for purchasing the Kirsch Roller and Screen Shade Collection. With proper installation, operation, and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 8: Installation
INSTALLATION INSTALLATION STEP 1: Mount the Installation Brackets Identify the brackets for your shade. Installation Overview To install your shade, you will need to perform the following five steps: STEP 1: Mount the Installation Brackets STEP 2: Install the Battery Wand (If Applicable) STEP 3: Install the Shade STEP 4: Connect the Power Source Installation Brackets for Standard Shades. -
Page 9: Inside/End Mount - Standard Shades
INSTALLATION INSTALLATION Mounting Types and Window Terminology If the installation brackets are mounted correctly, the rest of the installation process follows easily. To prepare for this important first step, review the mounting types and basic window terminology illustrated below. Molding Head Jamb Jamb Jamb... -
Page 10: Outside Mount - Standard Shades
INSTALLATION INSTALLATION Attach the installation brackets using the screws provided. ■ End Mount Shims (Optional). To ensure light gap is even on both sides, you ➤ may need to shim the bracket. Do not tighten the screws fully. Orient the shim as shown. Slide the shim in between the bracket and window casement. -
Page 11: Inside Mount - Cassette Shades
INSTALLATION INSTALLATION Inside Mount — Cassette Shades Mark 4” from each jamb for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) evenly between the two end ➤ brackets and mark their location. Allow a minimum of 18” from the motor end for the battery wand. Mount into wood whenever possible. -
Page 12: Outside Mount - Cassette Shades
INSTALLATION INSTALLATION Install the Back Cover (Optional) Cassette Bracket Back Cover Clip NOTE: For shades with the optional back cover, install the back cover onto the clips before installing the cassette into the brackets. Angle the back cover towards the window to hook the top feature of the back ■... -
Page 13: Fascia Shades
INSTALLATION INSTALLATION Fascia Shades Assemble the two end brackets and ■ Fascia the fascia panel. Panel Place the top of the fascia panel into the top indention of the brackets. Rotate the panel ➤ down and snap it into place. IMPORTANT: Check that the outer surfaces of the brackets are flush with the ends of the panel. - Page 14 INSTALLATION INSTALLATION Inside/End Mount. Use your marks to position each bracket and mark each of the ■ screw holes. For 4” Fascia, the minimum mounting depth required and fully recessed depth is 4 ⁄ ”. ➤ For 3” Fascia, the minimum mounting depth required and fully recessed depth is 3 ⁄...
-
Page 15: Dual Roller Shades - Inside/End Mount
INSTALLATION INSTALLATION Dual Roller Shades - Inside/End Mount The installation brackets are always mounted so that the inner surfaces face each other. The brackets must be mounted so the shade is level when installed. Center the ordered width - ⁄ ” in the window casement and mark its location. ■... -
Page 16: Dual Roller Shades - Outside Mount
INSTALLATION INSTALLATION Dual Roller Shades - Outside Mount The installation brackets are always mounted so that the inner surfaces face each other. The brackets must be mounted so the shade is level when installed. Center the ordered width measurement over the window at the desired height and mark its location. ■... -
Page 17: Pocket Shades
■ Attach the installation brackets using the screws provided. ■ Pocket Shades CAUTION: Kirsch® strongly recommends that shades in a pocket be mounted through wood or metal studs by a professional installer. The number of #10 x 1 ⁄ ” Phillips hex washer head screws (not provided) required will vary depending on the width of the shade, as shown in the table below. -
Page 18: Step 2: Install The Battery Wand (If Applicable)
INSTALLATION INSTALLATION STEP 2: Install the Battery Wand (If Applicable) For the headrail-mounted battery wand, battery wand clips and battery wand mounts are installed before the shade is installed. Any other power options, the power source will be connected after the shade is installed. Battery Wand Install the Battery Wand Clips Attach the battery wand clip to the back of the cassette approximately 10”... - Page 19 INSTALLATION INSTALLATION Install the Rechargeable Battery Mount into the Battery Wand Clips From the back of the shade headrail, connect the power cable from the motor side into the socket on the rechargeable battery ■ mount. Align the slots in the battery mount with the battery wand clips. ■...
-
Page 20: Step 3: Install The Shade
INSTALLATION INSTALLATION STEP 3: Install the Shade Standard, Fascia, Pocket and Dual Roller Bracket Shades Your shade may be standard roll or reverse roll based on your order. For dual roller shades, you will have one of each. Be sure to orient the shade correctly before installing. - Page 21 INSTALLATION INSTALLATION Holding the shade to the window, rotate the shade to align the motor end with the channels on the bracket before installing ■ the idle end. Standard Shade Fascia Shade Dual Roller Shade Motor Motor Motor Push the idle end of the shade onto the bracket. ■...
- Page 22 INSTALLATION INSTALLATION Dual Roller Shades. Install the front shade (using the steps on the previous page) in the front of the dual roller bracket. This ■ shade is a reverse roll shade and should be oriented as such before installing. Standard Roll Reverse Roll Tube and...
-
Page 23: Step 4: Connect The Power Source
➤ For an optional 18V DC Power Supply with daisy-chain connections, see page 24. ➤ For any other Kirsch® power options, see the instructions that came with the unit. ➤ Attached Battery Wand Plug the Power Cable into the Battery Wand Snap the battery wand into the battery wand clip on the back of the cassette. - Page 24 INSTALLATION INSTALLATION Plug the power cable from the shade into the extension cable. ■ Plug the other end of the extension cable into the socket in the battery wand. ■ Proceed to “Testing the Shade” on page 24. Headrail-Mounted Rechargeable Battery Wand Insert the Rechargeable Battery Wand into the Battery Mount NOTE: The rechargeable battery wand ships fully charged, so it is ready to install out of the package.
- Page 25 INSTALLATION INSTALLATION Connect the power cable from the shade to the power socket on the rechargeable battery mount. Use a 15”, 4’, 10’, or 20’ ■ extension cable, if necessary. Battery Mount Extension Power Cable Cable from Shade (If Needed) WARNING: Keep cables and small parts out of the reach of children.
-
Page 26: Testing The Shade
INSTALLATION INSTALLATION 18V DC Power Supply with Daisy-Chain Connections NOTE: The daisy-chain feature is only available with the 18V DC Power Supply option. Refer to this section if you have an 18V Power Supply with daisy-chain connections. The daisy-chain feature allows up to three Automation III automated shades to be powered by a single 18V DC Power Supply. However, each shade can operate independently. -
Page 27: Operation
The Automation App is required to program Automation III shades, remotes, and gateways. The App is compatible with Apple® and Android™ smartphones and tablets. For more information regarding setup and operation using the Automation App, refer to https://www.kirsch.com/window-coverings-product-manuals. Automation III Gateway The Automation III Gateway is used to control shades in larger projects as well as integrate Automation III shades with third- party integration systems. -
Page 28: Resetting The Shade
INSTALLATION OPERATION Automation III Remote For more information regarding operation and programming of the Automation III Remote, refer to the digital Automation III Remote Control Guide. Resetting the Shade Calibration Reset The calibration reset is used to recalibrate the shade’s travel limits. This action is performed in the Automation App. Select Calibrate Shade in the Advanced Options section of the Shade Settings menu in the Automation App. -
Page 29: Install The Standard Bracket Cover (If Applicable)
INSTALLATION OPERATION Adjusting Hard Top Limit (Cassette) Attempt a calibration reset first, as explained above. If the bottom rail does not stop at the desired top limit on its way to the top, you will need to adjust the hard stop top limit. NOTE: These instructions are for adjusting the hard stop limit for roller shades with Cassette only. -
Page 30: Troubleshooting
■ Refer to the following troubleshooting procedures below for the specific solutions for your shade. ■ If questions remain, please contact Kirsch Consumer Support at 844-KIRSCH2 (844-547-7242). ® Problem The shade will not fit into the installation brackets. - Page 31 Battery Wand Install the batteries according to the instructions on the battery wand label. Press the cap on until it latches. NOTE: Kirsch® recommends AA alkaline batteries for use with our battery- Squeeze Latch powered shades. These will provide more than one year of operation, depending...
- Page 32 CAUTION: Rechargeable battery wand can only be charged with Kirsch® provided charging options — alternative charging devices may result in permanent damage. Removing the Rechargeable Battery Wand from the Mount To safely remove the rechargeable battery wand from your shade, grasp the end of the battery wand that is ■...
- Page 33 INSTALLATION TROUBLESHOOTING Problem Rechargeable battery wand needs recharging (continued). Solution A red light indicator confirms the battery wand is properly inserted and is charging. ■ CAUTION: Do not attempt to plug the charging cable into the battery mount’s power socket. Doing so will not only fail to charge the battery wand but could Not this possibly cause damage to both the single socket...
-
Page 34: Care
Bracket Release Tab Cleaning Procedures Kirsch® shades are made from dust-resistant materials which repel dirt and dust. The following options are available if your shade needs cleaning. Dusting Regular light dusting with a feather duster is all the cleaning needed in most circumstances. - Page 35 INSTALLATION CARE Spot-Cleaning CAUTION: Do not spot-clean Alustra Woven Textures fabrics. ® ® Prepare a solution of warm water and a mild detergent. ■ Dampen a clean cloth in the solution and wring it out. ■ Dab the spot with the dampened cloth until it is removed. Do not rub the fabric. ■...
-
Page 36: Child Safety
INSTALLATION CHILD SAFETY... -
Page 37: Declarations
Kirsch®, One Duette Way, Broomfield, CO 80020, USA Kirsch hereby declares that the PV33 is in compliance with the essential requirements and other relevant provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU and Radio Equipment Directive (RED) 2014/53/EU. A copy of the DoC can be obtained online:... -
Page 38: Warranty
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. © 2019 Kirsch Custom Window Coverings. All rights reserved. All trademarks used herein are the property of Kirsch or their respective owners. 09/19...
