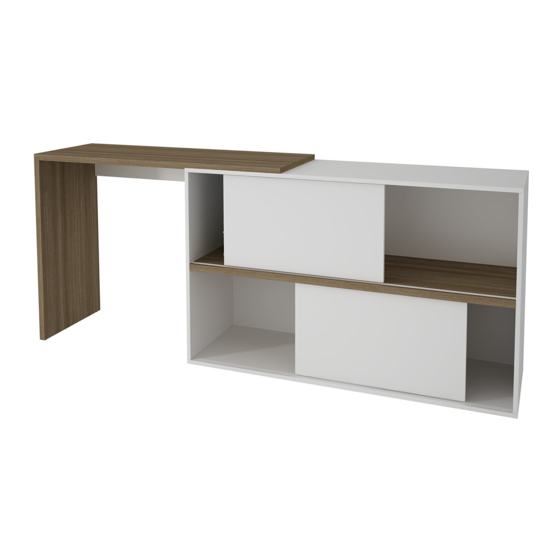

- Page 1 MESA DE COMPUTADOR MESA PARA COMPUTADORA COMPUTER DESK BC 44...
- Page 2 Dimensions: W: 42.13" H: 30.71" D: 47.24" L: 1200 A: 780 P: 1070 12kg 15kg 26.5lb 33.1lb 33.1 11lb 11lb Dimensions: W: 74.21" H: 30.71" D: 14.96" L: 1885 A: 780 P: 380 11lb 11lb 11lb 11lb 47kg 104lb 07/17...
- Page 3 PART DESCRIPTION QTY. Base Side Shelf Partittion Door Table top Table side Traverse Back USE ALCOHOL TO REMOVE PART NUMBERS...
-
Page 4: Hardware Parts
HARDWARE PARTS PHOTO CODE EF 000033 EF 000168 EF 000101 PLASTIC PROFILE EF 000689 EF 000061 ROUND FEET EF 000008 Glue EF 000134 TO IMPROVE ASSEMBLY, USE AN ELECTRONIC SCREWDRIVER... - Page 5 Insert hardware EF 000033 into the pieces 5 and 3, using glue. EF 000033 Fit plastic profile into the piece 4, if it is necessary use a hammer, carefully. PLASTIC PROFILE EF 000033 Insert hardware EF 000033 into piece 4 using glue.
- Page 6 PLASTIC PROFILE Fit plastic profile into the piece 1, if necessary use a hammer, carefully. Insert hardware EF 000689 into piece 6. EF 000689...
- Page 7 Connect pieces 3, 4 and 5 according the picture. Insert round feet at the ROUND FEET place indicated, using hardware EF 000168 EF 000168 EF 000061 Connect pieces 7, 8 and 9 EF 000101 using hardware EF 000061 EF 000101, according the picture.
- Page 8 EF 000061 EF 000101 EF 000134 ROUND FEET Connect piece 2 to the pieces assembled on the step 5, in this moment you need to insert piece 6 too. After fit the pieces, use EF 000168 hardwares EF 000061 EF 000101 for fixing. Fix piece 1 at pieces assemble on step 5, in this moment you need to Fix round feet in the part indicated in...
- Page 9 OPTION 1 EF 000061 Choose one option of assembly, for option 1 observe step 9 or for option 2 the step 10. EF 000101 Use hardwares EF 000061 EF 000101 to connect both assembled parts. Observe this step just if you OPTION 2 chose option 2 of assembly.
