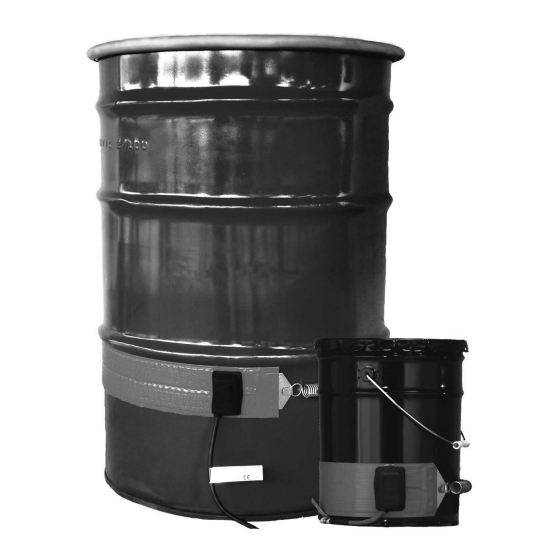

- Page 1 DHCSR Series Drum / Pail Heaters Instruction Manual Read and understand this material before installing this heater. Failure to understand how to safely install the heater could result in an accident causing serious injury or death. This heater should only be installed by qualified...
-
Page 2: Table Of Contents
For addi- tional information concerning this, or ® other BriskHeat products, please Hazards or unsafe practices which contact contact BriskHeat ® directly at COULD result in minor personal 1-800-848-7673 (toll free, U.S. / injury or property damage. -
Page 3: Important Safety Instructions
Failure to observe these warnings circuit breaker is used. may result in personal injury or damage to the heater. Failure to observe these warnings may result in personal injury or damage to the heater. ® BriskHeat Corporation. All rights reserved... -
Page 4: Summary Of Operation
/ pails. “DH..” and “ECONO” are designed for metal drums / pails. “DP..” is designed for poly drums / pails. DHCSR series drum heaters are integrated with built-in PRIOR TO INSTALLATION 1. Check for suspected damage to the heater like rips, punctures, etc. -
Page 5: Installation Of Heater
Do not use metal tab as a handhold when extending the spring. The heater MUST make continuous contact with the drum. Do not overlap the drum heater onto itself or another heater Figure 1 ® BriskHeat Corporation. All rights reserved... -
Page 6: Mounting Of Temperature Sensor
NOTE: These heaters have a built-in, high limit thermostat that will prevent it from overheating. T-3 rated heaters: 292°F [145°C] high limit thermostat T-4A rated heaters: 158°F [70°C] high limit thermostat ® BriskHeat Corporation. All rights reserved... -
Page 7: Connecting Heater To Ac Power
2. Connect the hazardous location approved plug to power source only after all steps listed above are complete. DHNH, DHNS, and DHNX series 2. Refer to external temperature controller instructions for power installation instructions. ® BriskHeat Corporation. All rights reserved... -
Page 8: Troubleshooting Guide
Silicone Rubber Band Drum / Pail Heaters TROUBLESHOOTING GUIDE ® Please read this guide prior to contacting BriskHeat . This guide is de- signed to answer the most commonly asked questions. If you are una- ble to identify the problem or need additional assistance, please contact ®...
