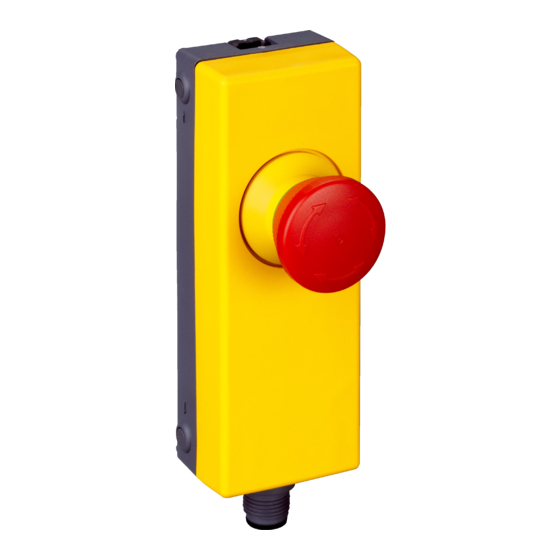

- Page 1 O P E R A T I N G I N S T R U C T I O N S ES11 Safety switches...
- Page 2 This work is protected by copyright. Any rights derived from the copyright shall be reserved for SICK AG. Reproduction of this document or parts of this document is only permissible within the limits of the legal determination of Copyright Law. Any modi‐...
-
Page 3: Table Of Contents
12.1 Data sheet....................12.2 Dimensional drawings................Ordering information................ 17 8027286/1HJB/2022-10-24 | SICK O P E R A T I N G I N S T R U C T I O N S | ES11 Subject to change without notice... -
Page 4: About This Document
About this document These operating instructions are original operating instructions. O P E R A T I N G I N S T R U C T I O N S | ES11 8027286/1HJB/2022-10-24 | SICK Subject to change without notice... -
Page 5: On Safety
The product may be used in safety functions. 8027286/1HJB/2022-10-24 | SICK O P E R A T I N G I N S T R U C T I O N S | ES11 Subject to change without notice... -
Page 6: Product Description
• reset: pressing the reset button (ES11-SC… only) O P E R A T I N G I N S T R U C T I O N S | ES11 8027286/1HJB/2022-10-24 | SICK Subject to change without notice... -
Page 7: Mounting
Figure 1: Mounting of the emergency stop pushbutton (screws and sliding nut not included) 8027286/1HJB/2022-10-24 | SICK O P E R A T I N G I N S T R U C T I O N S | ES11... -
Page 8: Connection
Normally closed contact 2 LED+ (reset) LED– (reset) Normally open contact (reset) O P E R A T I N G I N S T R U C T I O N S | ES11 8027286/1HJB/2022-10-24 | SICK Subject to change without notice... -
Page 9: Tests Before The Initial Commissioning
Actuate reset button. Check whether the protective device has been reset. 8027286/1HJB/2022-10-24 | SICK O P E R A T I N G I N S T R U C T I O N S | ES11 Subject to change without notice... -
Page 10: Periodic Technical Inspections
• no loose connections O P E R A T I N G I N S T R U C T I O N S | ES11 8027286/1HJB/2022-10-24 | SICK Subject to change without notice... -
Page 11: What To Do In Case Of A Malfunction
In this case undertake a function check as per chapter "Tests before the initial commissioning", page 9 8027286/1HJB/2022-10-24 | SICK O P E R A T I N G I N S T R U C T I O N S | ES11 Subject to change without notice... -
Page 12: Uninstalling
(see figure 1, 2). Release housing from retaining clip. O P E R A T I N G I N S T R U C T I O N S | ES11 8027286/1HJB/2022-10-24 | SICK Subject to change without notice... -
Page 13: Disposal
Complementary information SICK will be glad to help you dispose of these devices on request. 8027286/1HJB/2022-10-24 | SICK O P E R A T I N G I N S T R U C T I O N S | ES11... -
Page 14: Conformities And Certificates
You can obtain declarations of conformity, certificates, and the current operating instructions for the product at www.sick.com. To do so, enter the product part number in the search field (part number: see the entry in the “P/N” or “Ident. no.” field on the type label). -
Page 15: Technical Specifications
Operating current – – 14 mA (at 24 V) 8027286/1HJB/2022-10-24 | SICK O P E R A T I N G I N S T R U C T I O N S | ES11 Subject to change without notice... -
Page 16: Dimensional Drawings
36,3 72,3 108,6 Figure 3: Dimensional drawing ES11-SC… (mm) O P E R A T I N G I N S T R U C T I O N S | ES11 8027286/1HJB/2022-10-24 | SICK Subject to change without notice... -
Page 17: Ordering Information
Table 3: Part numbers and type codes Part No. Part Emergency stop pushbutton incl. removable retaining clip Emergency stop button, not illuminable, connec‐ 6051327 (ES11-SA1A4) tion M12×4 plug Emergency stop button, illuminable, connection M12×8 6051328 (ES11-SA2B8) plug Emergency stop button, not illuminable, reset button, 6051329 (ES11-SC4D8) illuminable, connection M12×8 plug... - Page 18 ORDERING INFORMATION O P E R A T I N G I N S T R U C T I O N S | ES11 8027286/1HJB/2022-10-24 | SICK Subject to change without notice...
